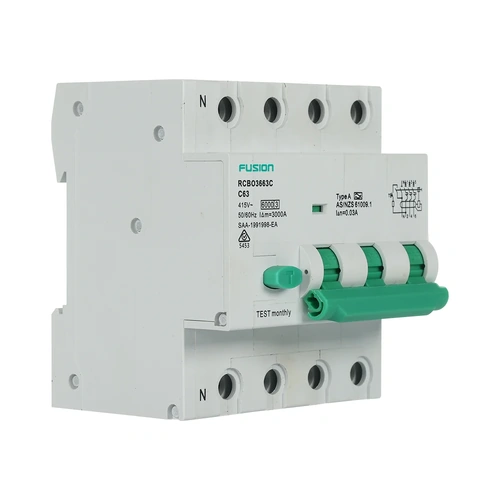

    CSG RCBO3663C | Fusion RCBO 3P+N 6kA 415V 63A | Type A

    The CSG RCBO3663C Fusion RCBO is a 3P+N device that combines residual current and overcurrent protection for industrial and commercial applications. Designed with high-grade components, this RCBO ensures reliable protection against earth leakage, overloads, and short circuits. With a rated breaking capacity of 6kA, it is suited for environments where robust performance is needed.

    This Type A RCBO features an electromagnetic design, 72mm width, and 35mm DIN rail mounting for ease of installation. The lockable toggle and ON/OFF indicator offer enhanced safety and control. Compliant with AS/NZS 61009.1:2015 standards, this device is rated for 415V AC and 63A, making it ideal for heavy-duty electrical systems.

    CSG RCBO3663C Features:

    • Type A Electromagnetic RCBO: Provides residual current and overcurrent protection.
    • 6kA Short Circuit Capacity: Designed for demanding industrial and commercial environments.
    • 72mm Width (3P+N): Compact and easy to install on a 35mm DIN rail.
    • ON/OFF Indicator: Clear visual indicator for operational status.
    • Lockable Toggle: Added safety feature for locking the switch in the ON or OFF position.
    • Complies with AS/NZS 61009.1: Ensures high safety and performance standards.

    CSG RCBO3663C FAQ:

    Q: What is the rated voltage of this RCBO?
    A: The RCBO is rated for 415V AC.

    Q: Is this RCBO suitable for industrial applications?
    A: Yes, with its 6kA breaking capacity and 63A rating, it is designed for industrial and commercial use.

    Q: Does this RCBO comply with safety standards?
    A: Yes, it complies with AS/NZS 61009.1:2015 standards, is SAA approved, and ESV compliant.

    Q: Can the toggle be locked for safety?
    A: Yes, the toggle is lockable for additional safety during maintenance or system shutdowns.

    (RCBO3663C)

    Warranty

    Warranty starts from the Invoice Date.

    This product comes with a 5 Year In House Warranty. That’s right, five years! This is so that you can have peace of mind knowing that if a fault arises within a five-year period, Connected Switch Gear will cover the cost of replacing the product and its installation by an authorised electrician. In other words, we’ve got your back.

    Features
    Specification Details
    Product Code RCBO3663C
    Size (HxWxD) 8.2 x 8.1 x 7.9cm
    Series FUSION Series
    Volts 415V
    Amps 63A
    Power AC
    Poles 3P+N
    Configuration 6kA Type A 30mA
    RCBO Type Type A
    Colour Grey
    Compliance AS/NZS 61009.1:2015
    Approval SAA Approved/ESV Compliant
    Specifications

    These specifications and characteristics outline physical, mechanical, electrical details.

    Brand Connected Switch Gear
    SKU RCBO3663C
    Barcode # 9337286104933
    Package Weight 0.504kg
    Package Width 0.082m
    Package Height 0.084m
    Package Length 0.098m
    TYPE VALUE
    Type Circuit Protection
    Brand Connected Switch Gear
    Range Fusion
    Rated Current (A) 6kA
    Standards AS/NZS 61009.1:2015
    Voltage (V) 415V AC
    Breaking Capacity 6kA
    Curve C-curve
    Termination 35mm²
    Frequency (Hz) 50
    Poles 3P+N
    Rated residual operating current 30mA
