        Dahua DH-PFM920I-6UN-C| CAT6 UTP 6mm Cable 305m | Blue
        $154.00 $140.00 ex. GST
        Description

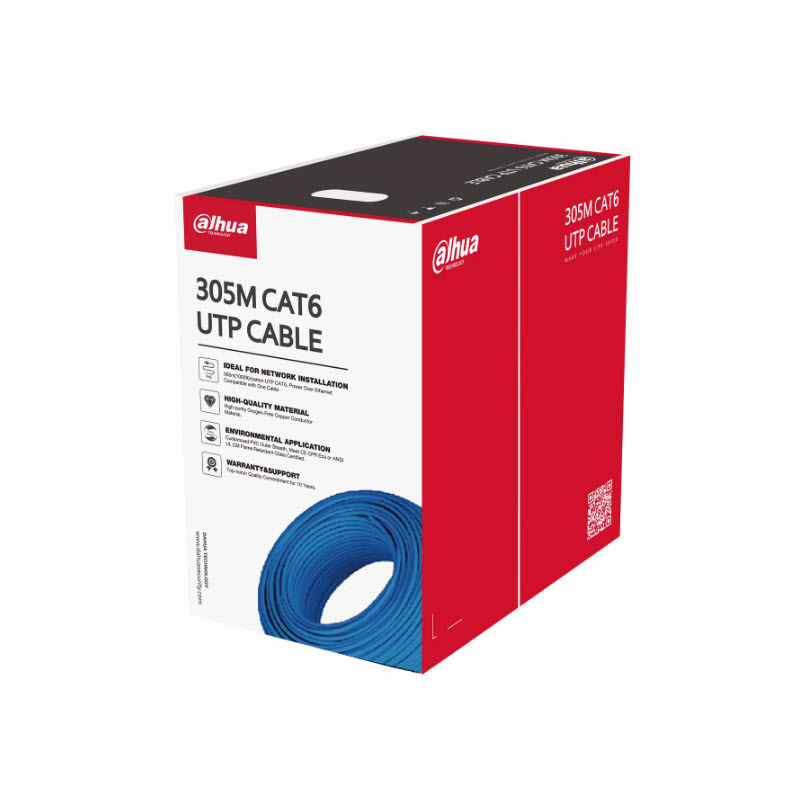

        Dahua DH-PFM920I-6UN-C| CAT6 UTP 6mm Cable 305m | Blue

        Description:

        The Dahua DH-PFM920I-6UN-C is a premium 305m (1000 ft) roll of CAT6 UTP cable designed for high-speed network installations. This high-performance cable features oxygen-free copper conductors, ensuring superior conductivity and signal integrity.

        The customised PVC outer sheath is certified to the CE CPR Eca flame retardant class, providing enhanced safety and durability. Compatible with Power over Ethernet (PoE), this cable is ideal for various applications, including data transmission and powering network devices over a single cable.

        Features:

        • Length: 305 meters (1000 feet) per carton, providing ample cable for extensive installations.
        • High-Quality Conductors: Made with high-purity oxygen-free copper for optimal signal transmission and conductivity.
        • Durable Sheath: Customised PVC outer sheath, certified to CE CPR Eca flame retardant class, ensuring safety and durability.
        • Power over Ethernet (PoE): Compatible, allowing for data and power transmission over a single cable.
        • Consistent Performance: Ensures reliable network connectivity for a variety of applications.
        • Standard Compliance: Meets CAT6 UTP standards, making it suitable for high-speed network installations.

        FAQ:

        Q: What is the primary use of the Dahua DH-PFM920I-6UN-C cable?
        A: This cable is ideal for network installations that require high-speed data transmission and Power over Ethernet (PoE) capabilities, such as in commercial buildings, offices, and data centres.

        Q: What makes the cable flame retardant?
        A: The cable's outer sheath is made of customized PVC and certified to the CE CPR Eca flame retardant class, ensuring it meets safety standards for fire resistance.

        Q: How does the high-purity oxygen-free copper conductor benefit the cable's performance?
        A: The high-purity oxygen-free copper conductors provide superior conductivity and signal integrity, resulting in more reliable and efficient network performance.

        Q: Can this cable be used for Power over Ethernet (PoE) applications?
        A: The Dahua DH-PFM920I-6UN-C is compatible with PoE, allowing it to transmit data and power over a single cable.

        Q: What are the dimensions of the cable?
        A: The cable has a diameter of 6.0 mm ± 0.3 mm, making it suitable for standard network installations.

        (DH-PFM920I-6UN-C)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 10 Year
        Commercial Use: 10 Year
        Warranty Method: Return to Sparky Direct

        Features

        Product Specifications

        Specification Details
        Conductor Material Oxygen-free copper (99.97% purity)
        Conductor Diameter 0.53 mm ± 0.01 mm
        Insulation Material HDPE
        Insulation Min. Average Thickness 0.21 mm
        Insulation Diameter 0.95 mm ± 0.1 mm
        Insulation Colour (4 Pairs) Blue, white/blue; orange, white/orange; green, white/green; brown, white/brown
        Separator Material PE
        Separator Specification Translucent 4.5 x 0.4 mm
        Rip Cord Material Polyester
        RipCord Specification 500D
        Sheath Material PVC
        Sheath Min. Average Thickness 0.5 mm
        Sheath Diameter 6.0 mm± 0.3 mm
        Sheath Colour White
        Max. DC Resistance of a Single Conductor 8.70/100 m
        Min. Insulation Resistance 5000MΩ·km
        Max. DC Resistance Unbalance 2% (pair intra), 4% (pairs inter)
        Dielectric Strength No breakdown with lKV DC for 1 min
        Characteristic Impedance 100 ± 150Ω
        Near End Cross Talk ≥39.30 dB/100 m@250 MHz
        Max. Attenuation 34.8 dB/100 m@250 MHz
        Return Loss ≥17.3 dB/100 m@250 MHz
        Tensile Strength Sheath≥13.5 MPa, insulation≥16 MPa
        Elongation at Break Sheath≥150%, insulation≥300%
        Installation Bending Radius >8 times of outer cable diameter
        Conductor Elongation at Break ≥10%
        Shrinkage of Insulation ≥5%
        Colour Migration Resistance of  Insulation No migration
        Sheath Tensile Strength and Elongation at Break after Aging ≥12.5 MPa, ≥100%
        Low Temperature Bending Test No cracking after the test
        Heat Shock Test No Cracking after the test
        Operating Temperature -20°C to +50°C
        Installation Temperature 0°C to +50°C
        Storage Temperature and Humidity -10°C to +40°C, <60% (RH)
        Vertical Fire Propagation Test Comply with IEC 60332-1-2
        Cable Length 305.0 m ± 1.5 m
        Gross Weight ≥11.5 kg
        Certification RCM
        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Dahua
        SKU DH-PFM920I-6UN-C
        Barcode # 6939554934179
        Shipping Weight 13.9000kg
        Shipping Width 0.325m
        Shipping Height 0.345m
        Shipping Length 0.270m
        Shipping Cubic 0.030273750m3
        TYPE VALUE
        Type Cable
        Brand Dahua
        Colour Blue
        Cable Type CAT6
        Power Over Ethernet Yes
        Cable Length 305m
