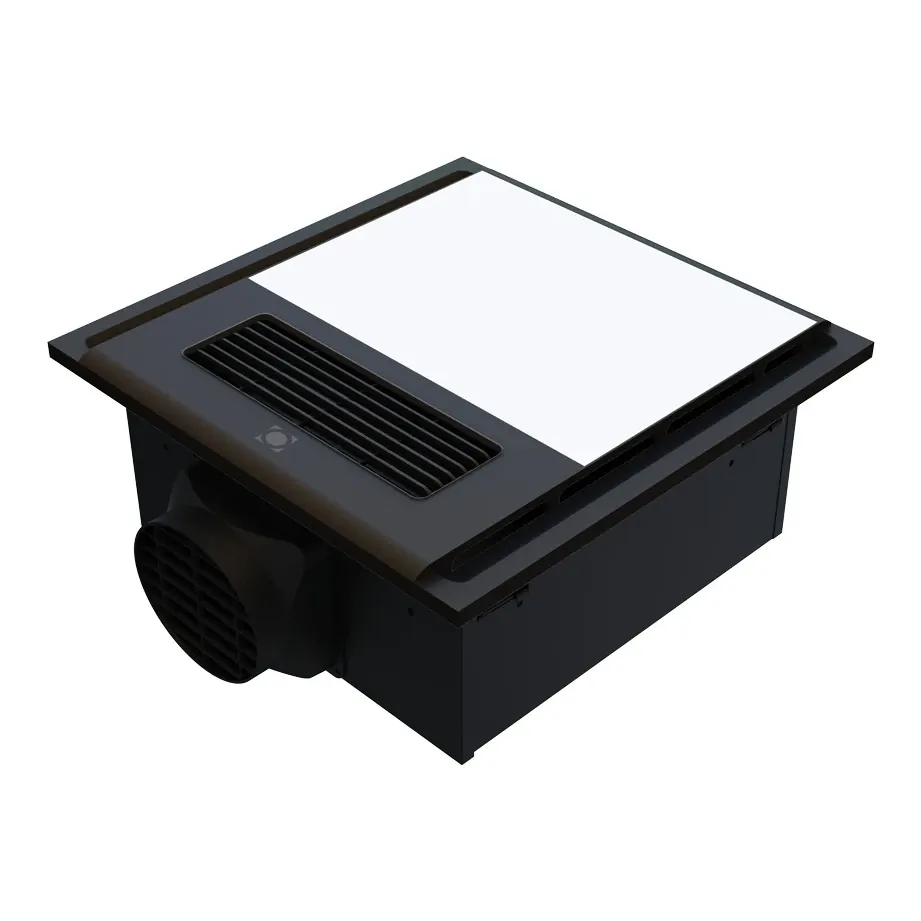

        Domus 56025 | Heatcore 4 in 1 Black Bathroom Heater, Exhaust Fan & Light | IPX2

        The Domus 56025 Heatcore is a retrofit-ready 4-in-1 bathroom unit that replaces older 3-in-1 infrared models with modern ceramic heating, quiet operation, and a flush-mounted finish. With a 2150W PTC heater, 300m³/hr extraction, and Tri-CCT LED lighting, it delivers comfort and energy efficiency in one smart upgrade.

        Designed for fast retrofits, it fits most existing cutouts (330 x 350mm) and uses a 390 x 390mm fascia to cover and modernise the space. The included digital wall controller gives you simple access to all modes - including an “All-Off” button and a built-in 2-hour safety shut-off. No new wiring needed — just connect two actives from your old 5-core cable.

        Perfect for updating tired heater/fan/lights with a quieter, smarter, better-looking solution.

        56025 Features

        • 4-in-1 Functionality: PTC heater, exhaust fan, circulating fan, and LED light in one compact unit
        • Retrofit-Friendly Design: 390 x 390mm fascia covers typical 330 x 350mm cutouts
        • Digital Wall Controller: Includes mode buttons and an “All-Off” master control
        • Tri-CCT LED Light (12W): Switchable between 3000K, 4000K, or 5000K with up to 950 lumens
        • No Extra Wiring Needed: Uses just two active wires from existing 3-in-1 heater installs
        • Includes: Digital controller, 3m ducting, and external grille
        • IPX2 Rated: Safe for bathroom installation
        • Warranty: 5-year in-home warranty

        56025 FAQ

        Q: Will this fit where my old 3-in-1 infrared heater was?
        A: Yes, it's designed to retrofit into common 330 x 350mm cutouts with no major modifications.

        Q: Do I need to run new switch wires?
        A: No, it connects using two actives from the existing 5-core cable — no additional wiring required.

        Q: Can I adjust the light colour?
        A: Yes, the Tri-CCT light can be set to warm, neutral, or cool white during installation.

        (56025)

        Warranty

        Warranty starts from the Invoice Date

        5 Year Domus In-Home Warranty


        Features
        Specification Details
        Product Name HEATCORE 4-in-1 Retrofit Bathroom Heater
        Item Numbers 56025 (Black)
        Input Voltage 240 V AC
        Total Power 2250 W
        Heat Output 2150 W (PTC Heating Element)
        Fan Motor Power 60 W AC
        Air Extraction Rate 300 m³/h
        Light Type 12 W LED Tri-colour
        Colour Temperatures 3000K / 4000K / 5000K (Changeable)
        Lumen Output 850 lm (3000K), 950 lm (4000K), 900 lm (5000K)
        CRI ≥80
        IP Rating IPX2
        Noise Level ≤46 dB
        Cutout Size 330 x 350 mm
        Fascia Size 390 x 390 mm
        Duct Size 100 mm
        Functions Heater, Exhaust Fan, Circulating Fan, Light
        Features Heat Breeze Tech, Auto-Off After 2 Hours, All-Off Button
        Accessories Included 6-Switch Digital Wall Controller, 3m Duct, Exterior Grille
        Warranty 5 Years In-Home
        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Domus
        SKU 56025
        Model # 56025
        Package Weight 6.300kg
        Package Width 0.230m
        Package Height 0.470m
        Package Length 0.492m
        TYPE VALUE
        Type Bathroom Heat/Fan
        Brand Domus
        Range Heatcore
        Colour Black
        Fascia Size (mm) 390x390mm
        Light Wattage (W) 12W LED
        Heat Wattage (W) 2150W
        Motor Wattage (W) 60W AC
        Input Voltage (V) 240V AC
        Duct Size (mm) 100mm
        Heat Type PTC Heating Element
        Colour Range (CCT) 3000K - 4000K - 5000K (Changeable)
        Air Extraction (m³/hr) 300m3 /h
        Power (W) 2250W
        Cut Out (mm) 330x350mm
        IP Rating IPX2
        CRI ≥80
