        Elcon F8TUV10BM | Solar Cable DC Rated 10mm Twin 100 Mtr Roll

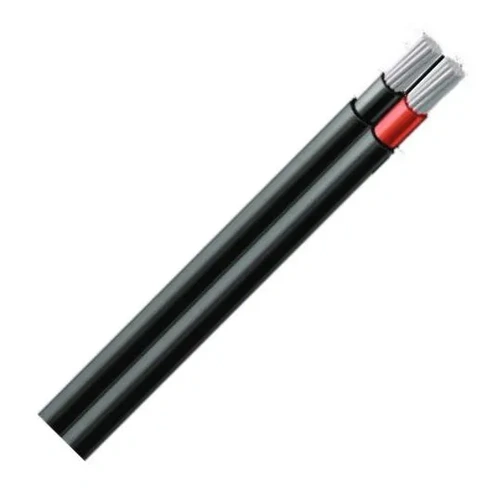

        The Elcon F8TUV10BM is a 10mm² twin figure-8 solar cable built for dependable photovoltaic (PV) interconnection. Featuring tinned copper Class 5 conductors and electron beam cross-linked insulation and sheath, it is rated 0.9/1.8kV DC and withstands temperatures up to 120°C. Supplied in a 100m roll with metre marking for quick cutting.

        Engineered for residential, commercial, and utility solar installations, the cable is UV stabilisedflame-retardant, and low-smoke zero-halogen, ensuring resilience in outdoor and fire-risk environments. With its Ezi Tear Weaving and slim, flexible profile, installation is straightforward, and the red and black cores provide clear polarity identification.

        Elcon F8TUV10BM Features

        • 10mm² twin figure-8 design: Suited for photovoltaic interconnections.
        • Tinned copper conductors: Class 5 per IEC 60228 for high durability.
        • High temperature rating: Up to 120°C for tough operating conditions.
        • UV stabilised, flame retardant: Built for long-term outdoor reliability.
        • Low smoke zero halogen: Safer performance in fire conditions.

        Where to Use the Elcon F8TUV10BM

        • Residential solar installs: Reliable cable for home PV systems.
        • Commercial rooftops: Handles long runs and direct exposure to elements.

        (F8TUV10BM)

        Elcon F8TUV10BM FAQ

        The cable uses tinned copper Class 5 conductors in accordance with IEC 60228.

        Both the insulation and sheath are electron beam cross-linked compounds for durability and heat resistance.

        Yes. It is UV stabilised and flame-retardant, making it reliable for exposed rooftop use.

        This product comes in a 100 m roll with metre markings for quick measuring and cutting.

        Yes. With its durability, certification, and 10 mm² conductors, it works for residential, commercial, and utility-scale PV installs.

        It weighs approximately 22.2kg per 100m.

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Elcon
        SKU F8TUV10BM
        Package Weight 25.000kg
        Package Width 0.270m
        Package Height 0.230m
        Package Length 0.270m
        TYPE VALUE
        Type Solar Cable
        Brand Elcon
        Length (mtrs) 100m
        Cable size (mm) 10mm Twin
