Discontinued | Replacement Product

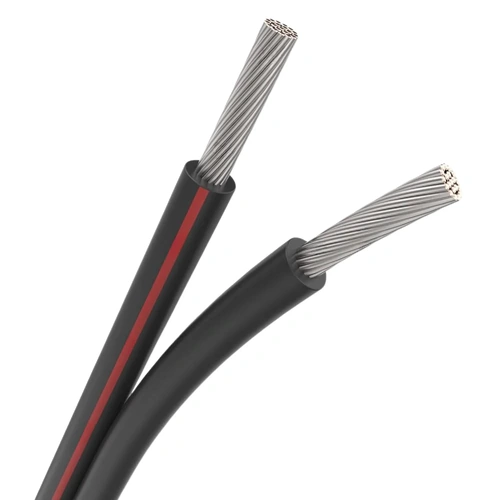

The Nebulas Energy KUKATWIN4 is a 100 metre roll of twin 4.0mm² solar cable, purpose-built for high-performance solar installations up to 1500V DC. Manufactured to TÜV IEC62930 / EN50618 standards, it features tinned copper conductors and electron-beam cross-linked XLPO insulation and jacket, engineered for maximum durability in harsh environments.
Ideal for rooftop or ground-mount systems, this cable withstands extreme temperatures (-40°C to +120°C) and resists UV, flame, ozone, and moisture. The black and red twin jacket provides quick polarity ID on site, while the 55A current rating at 60°C ensures compatibility with modern solar outputs.
KUKATWIN4 Features
KUKATWIN4 FAQ
Q: Is this cable weatherproof for rooftop installs?
A: Yes, it’s UV, flame, and moisture-resistant for rooftop and outdoor use.
Q: Can I use this for 1500V DC arrays?
A: Yes, it’s rated for full 1500V DC applications.
Q: Is it standards-compliant for the Australian market?
A: Yes, it’s TÜV SÜD EN50618 and IEC62930 certified for solar installs.
Discontinued | Replacement Product
(KUKATWIN4)
100-Day Fuss-Free Returns
We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.
If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.
All products come with a manufacturer’s or supplier’s warranty
Damaged or Faulty Goods
If your order arrives damaged or is faulty, let us know within 24 hours.
Contact us via our chat to arrange the return.
Exclusions
We can’t accept returns for:
How to Request a Return
Warranty starts from Invoice Date
Domestic Use: 1 Year
Commercial Use: 1 Year
Warranty Method: Return to Sparky Direct
| Specification | Details |
|---|---|
| Product Name | TWIN4-100 IEC1500V |
| Standard | TÜV IEC62930 / EN50618 |
| Construction | 2x4 mm² (Twin) |
| Conductor | Tinned Copper, 56 x 0.29 mm strands |
| Conductor Diameter | 2.45 mm |
| Insulation Material | Electron-beam Cross-linked XLPO |
| Insulation Thickness | Avg. 0.70 mm / Min. 0.60 mm |
| Jacket Material | Electron-beam Cross-linked XLPO |
| Jacket Thickness | Avg. 0.80 mm / Min. 0.68 mm |
| Outer Dimensions | (5.50 ± 0.15) × (11.2 ± 0.20) mm |
| Color | Black / Red |
| Voltage Rating | AC 1.0/1.0 kV, DC 1.5 kV |
| Temperature Range | -40°C to +120°C (max. conductor temp.) |
| Short Circuit Temperature | 250°C (max. 5 s) |
| Current Rating (at 60°C) | 55 A |
| Resistance | ≤ 5.09 Ω/km @ 20°C |
| Spark Test | AC 10 kV (in air) |
| UV Resistance | 720 h (No cracking) |
| Thermal Life | 25 years |
| Mechanical Strength | ≥ 6.5 & 8.5 N/mm² unaged, ≤ 30% aged |
| Cold Bend & Impact Test | -40°C, 16 h — No cracking |
| Flame Test | EN60332-1-2 |
These specifications and characteristics outline physical, mechanical, electrical details.
| SKU | KUKATWIN4 |
| Model # | KUKA TWIN 4-100 IEC 1500V |
| Package Weight | 12.150kg |
| Package Width | 0.270m |
| Package Height | 0.180m |
| Package Length | 0.270m |
| TYPE | VALUE |
|---|---|
| Type | Solar Cable |
| Colour | Black |
| Length (mtrs) | 100 |
