        Kibor Cable DKHRC2C4-100 | Solar Cable Twin Slim 4MM DC 1500V
        $176.00 $160.00 ex. GST
        Description

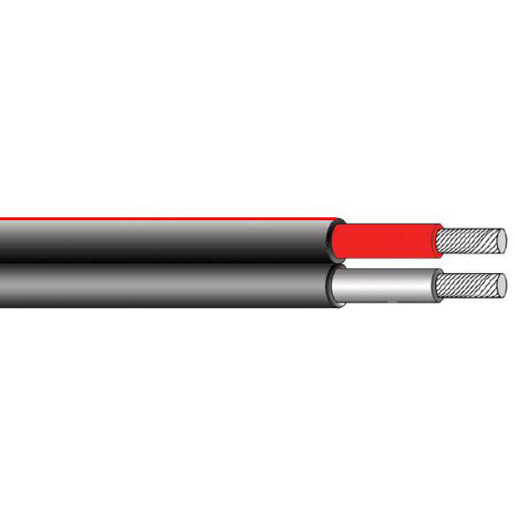

        Kibor Cable DKHRC2C4-100 | Solar Cable Twin Slim 4MM DC 1500V

        Description:

        Harnessing the power of the sun to energize your home is not just a sustainable choice; it's a smart one. If you're looking to optimize your photovoltaic power generation system, Kibor's Solar Cable Twin Slim is the key to enhancing connectivity and ensuring a reliable energy flow. Designed with precision and crafted for exceptional performance, this solar cable is your gateway to seamless solar power integration. Bask in the remarkable benefits of this cable and find answers to common inquiries below, paving the way for a brighter, energy-efficient future. Don't miss out on this opportunity to revolutionize your solar energy setup.

        Benefits:

        • Efficient Solar Energy: The Kibor Solar Cable is specifically engineered to interconnect solar panels and other crucial electrical components within your photovoltaic system, ensuring a seamless flow of solar energy.

        • UV and Weather Resistant: Built to withstand the harshest outdoor conditions, this solar cable is UV resistant and weather resistant, guaranteeing optimal performance and longevity even in challenging environments.

        • Temperature Tolerance: Designed to operate within a wide temperature range, this solar cable performs reliably under various climate conditions, ensuring your system's consistent output.

        • Superior Conductivity: With a nominal cross-section conductor of 4 mm² and tinned copper construction, this cable provides excellent electrical conductivity, enhancing the efficiency of your solar power generation.

        • Double Insulation: The primary and secondary insulation made from XLPE (cross-linked polyethylene) ensures exceptional durability, electrical insulation, and protection for the cable, making it suitable for high-voltage DC applications.

        • Safety and Compliance: Compliant with the H1Z2Z2-K/62930 IEC 131 standard, this solar cable prioritizes safety and quality assurance, providing you with peace of mind.

        FAQ:

        Q: What is the primary function of this solar cable?
        A:
        The primary function of the Kibor Solar Cable is to interconnect solar panels and essential electrical components within a photovoltaic system, enabling the efficient transfer of solar energy.

        Q: Is this cable suitable for outdoor use?
        A:
        Yes, this solar cable is UV-resistant and weather-resistant, making it ideal for outdoor applications in your solar power generation system.

        Q: What is the cross-section conductor size?
        A:
        This cable features a nominal cross-section conductor of 4 mm², ensuring efficient electrical conduction.

        Q: Is this cable safe for high-voltage DC applications?
        A:
        Absolutely. The Kibor Solar Cable is designed to operate at 1500V DC and is compliant with the H1Z2Z2-K/62930 IEC 131 standard, ensuring safety and reliability for high-voltage applications.

        Upgrade your solar power generation system and optimize your energy production with the Kibor Cable 4MMDCTWINSLIMSOLAR. This solar cable is built to last, ensuring efficient interconnection, protection, and safety in your photovoltaic setup. Harness the power of the sun with confidence and reliability, backed by the performance of this exceptional solar cable.

        (DKHRC2C4-100)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Features
        Specifications Details
        Voltage Rating EN50618 & IEC62930 AC: 1.0/1.0kV; DC: Max.1.5kV
        Ambient Temperature -40°C up to 90°C
        Insulation ResistanceAt 20℃ ≥ 709 MΩ.km
        Current Carrying Capacity At 60℃ 57A
        Spark Test 10000 VAC
        Voltage Withstand 6500 VAC
        Conductor Resistance At 20℃ ≤ 5.09 Ω/km
        Cable Construction
        Conductor Stranded tinned copper
        Size 4mm²
        Stranding 56/0.285±0.01mm
        Diameter 2.4mm
        Primary Insulation XLPE
        Colour Black、Red
        Secondary Insulation XLPE
        Colour Black(red bar)
        Outer Diameter 5.50±0.2×11.30±0.40mm
        Standards IEC 60228, IEC 60332 -1-2, IEC 60754, IEC 60811 -2-1, IEC 61034, IEC 61215, EN 50618 File No.: J50419123, IEC 62930 File No.: R50413678
        Other
        Bending Radius Dynamic ≥ 5 X O.D.
        Bending Radius Static ≥ 4 X O.D.
        Ozone resistant IEC 60811-403
        Low smoke emission IEC 61034-2, light transmittance ≥ 60%
        Weathering/UV resistance IEC 62930 Annex E
        Halogen free IEC 62821-1 Annex B
        Flame retardant IEC 60332-1-2
        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Kibor Cable
        SKU DKHRC2C4-100
        Shipping Weight 12.1500kg
        Shipping Width 0.270m
        Shipping Height 0.200m
        Shipping Length 0.270m
        Shipping Cubic 0.014580000m3
        TYPE VALUE
        Type Solar Cable
        Brand Kibor Cable
        Colour Black
