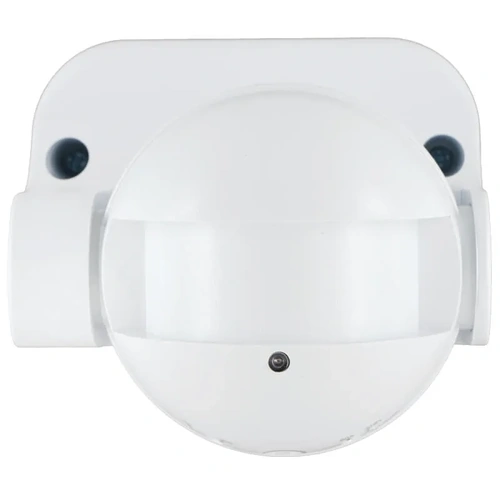

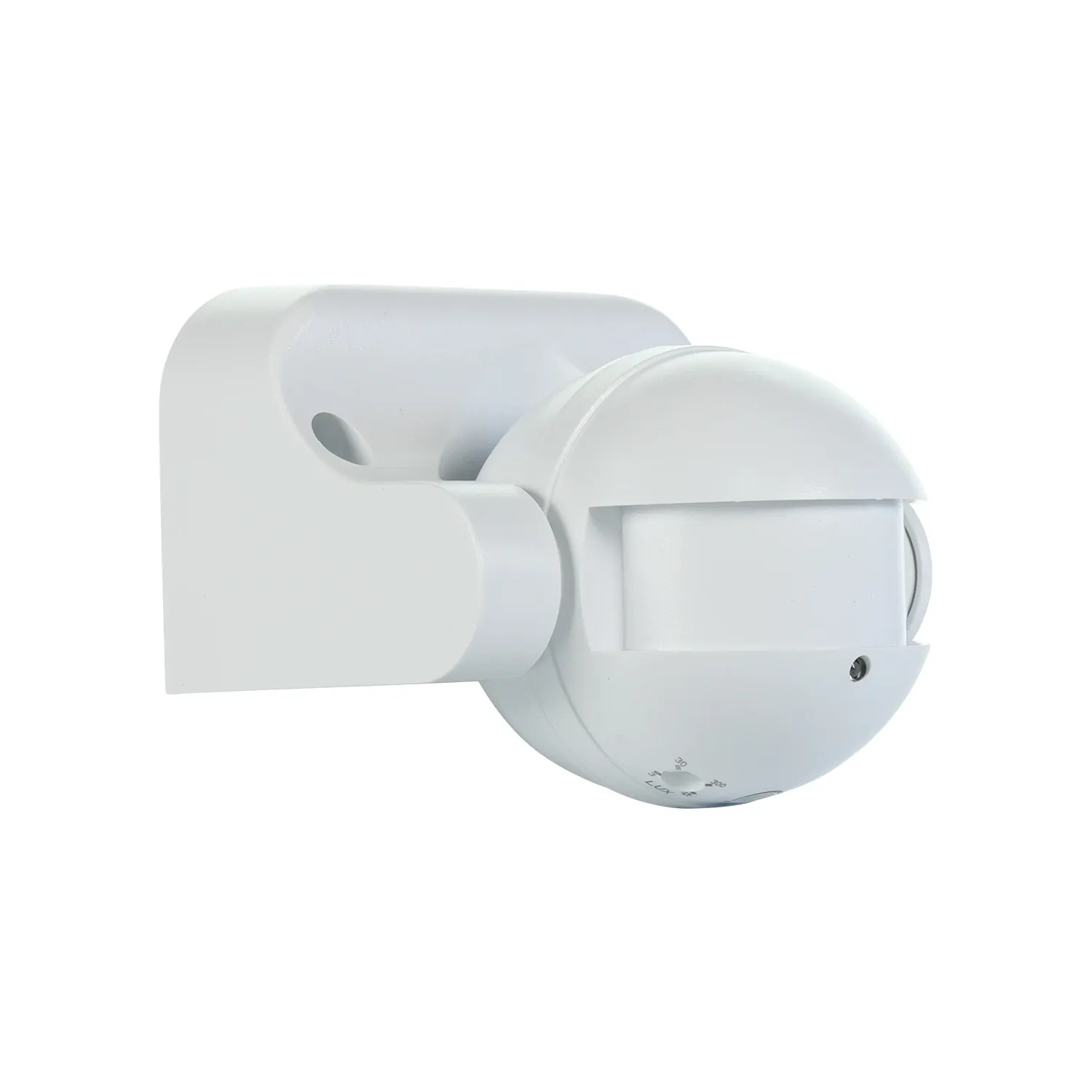

        Major Tech MS362 | 360° Indoor/Outdoor Microwave Motion Sensor | IP54

        The Major Tech MS362 is a microwave motion sensor built for indoor and sheltered outdoor use, offering enhanced detection compared to standard PIR sensors. With 360° ceiling or 180° wall mounting, it’s perfect for carports, corridors, patios, foyers, and other semi-exposed spaces.

        Using microwave technology, it detects motion and body heat through glass, doors, or thin walls, making it suitable for larger or enclosed areas. It includes adjustable lux sensitivity, time delay, and automatic day/night recognition to suit different applications. With an IP54 rating and support for up to 600W LED/CFL, the MS362 is a reliable choice for automation and lighting control.

        MS362 Features

        • Flexible Mounting: 360° ceiling or 180° wall for wide-area coverage
        • Microwave Detection: Senses motion through non-metallic barriers
        • Detection Range: Adjustable up to 15 metres
        • Time Delay & Lux Control: Customise hold time and light sensitivity
        • Load Rating: 600W LED/CFL or 1200W incandescent
        • Weather Resistance: IP54 rated for indoor and sheltered outdoor use

        MS362 FAQ

        Q: Can this be installed outside?
        A: Yes, it’s IP54 rated for protected outdoor areas like eaves or patios.

        Q: How does this compare to PIR sensors?
        A: It is more sensitive and can detect through glass or thin walls where PIR cannot.

        Q: Is it compatible with LED lights?
        A: Yes, it supports up to 600W of LED or CFL lighting.

        (MS362)

        Warranty

        Warranty starts from Invoice Date

        5 Years Limited Warranty
        Warranty Method: Return to Sparky Direct

        Features
        Specification Details
        Function 360° Ceiling / 180° Wall Motion Detection
        Detection Distance Ceiling: 2m – 16m (Adjustable)
        Wall: 5m – 15m (Adjustable)
        Detection Motion Speed 0.6 to 1.5 m/s
        HF System 5.8GHz CW Radar, ISM Band
        Ambient Light Sensitivity <3 to 2000 Lux (Adjustable)
        Installation Height Ceiling: 2m to 8m
        Wall: 5m to 15m
        Voltage 220 to 240V AC
        Power Frequency 50/60Hz
        Rated Load Incandescent: 1200W
        LED / CFL: 600W
        Time Delay 10 sec (±3 sec) to 12 min (±1 min)
        Power Consumption <0.9W
        Mounting Ceiling & Wall Mount
        Working Temperature -20°C to 40°C
        Working Humidity <93% RH
        IP Rating IP20 (Indoor Installation)
        Standards IEC 60669-1 / 60669-2-1
        AS/NZS 60669.1 / 60669.2.1
        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Major Tech
        SKU MS362
        Model # MS362
        Barcode # 6008229026980
        Package Weight 0.152kg
        Package Width 0.075m
        Package Height 0.140m
        Package Length 0.090m
        TYPE VALUE
        Type Sensor
        Brand Major Tech
        Voltage (V) 220 to 240V AC
        Time Delay 10 sec (±3 sec) to 12 min (±1 min)
        Detection Distance Ceiling: 5m - 15m (Adjustable) Wall: 5m - 15m (Adjustable)
        Detection Area Ceiling: 360°, Wall: 180°
        Detection Motion Speed 0.6 to 1.5m/s
        HF System 5.8GHz CW Radar, ISM Band
        Ambient Light <3 to 2000 Lux (Adjustable)
