        Description

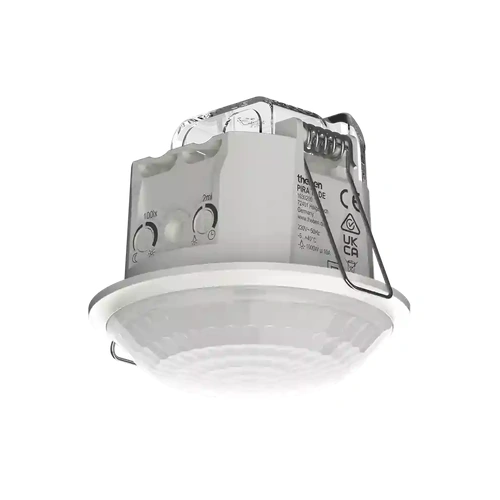

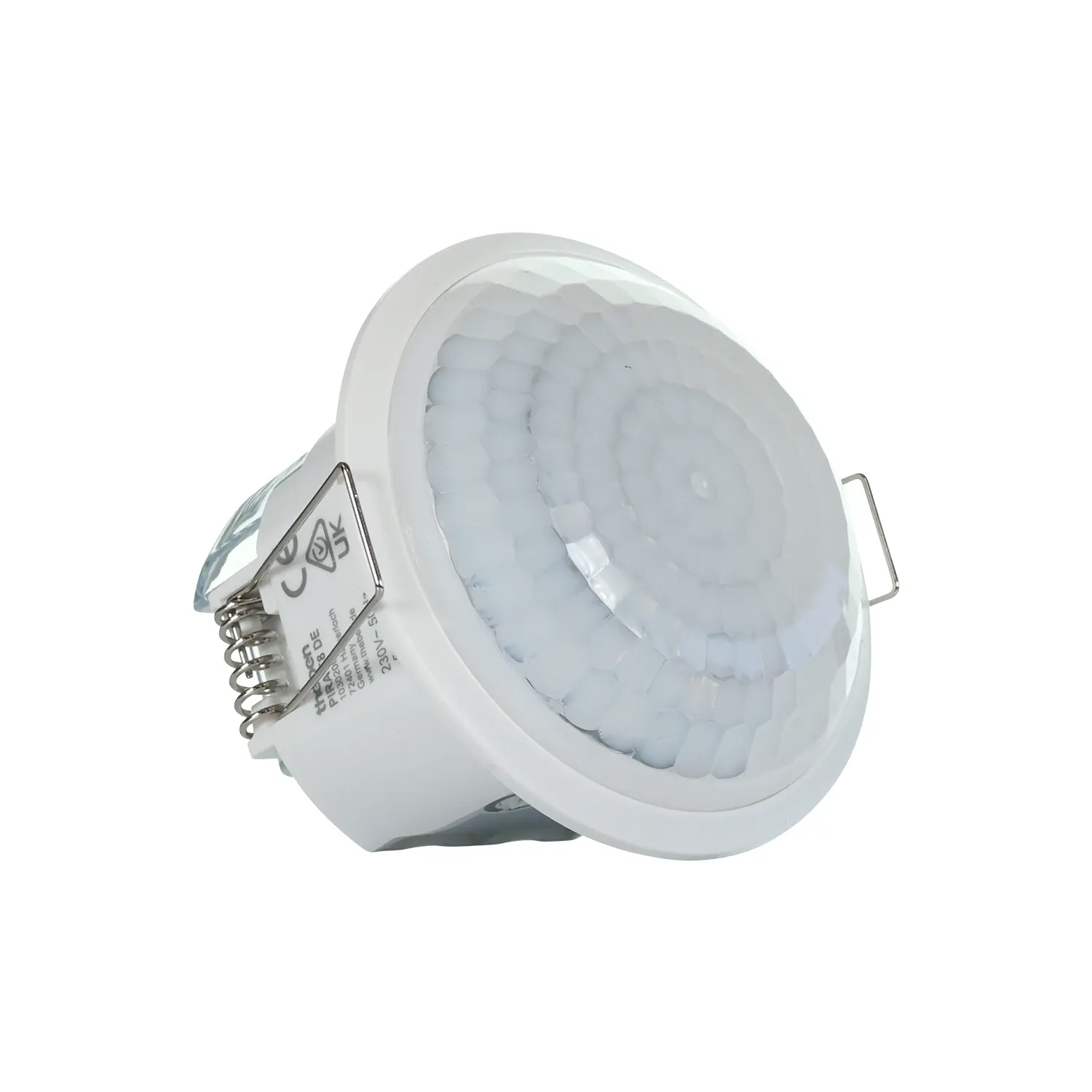

        Theben PIRA-T8-DE | Recessed Motion and Presence Detector PIR | 360° Detection

        The Theben PIRA-T8-DE is a 360° recessed PIR motion and presence detector, designed for automatic lighting control in indoor environments such as offices, hallways, and commercial spaces. With a detection area up to 50m² (Ø 8m at 2.5m height), it offers wide coverage while maintaining a discreet ceiling-mount profile.

        The sensor uses mixed light measurement for precise brightness detection and includes one 230V lighting channel compatible with a wide range of lamps, including LED, halogen, fluorescent, and incandescent. It operates fully automatically and offers adjustable brightness sensitivity (5–1000 lux) and switch-off delay (5 seconds to 15 minutes), with default factory settings of 100 lux and 2 minutes for fast, out-of-the-box use.

        Rated IP21 for dry indoor use, the PIRA-T8-DE fits standard recessed ceiling installations and supports ceiling heights from 2 to 3 metres. With a compact design and reliable performance, it’s a smart, energy-saving upgrade for modern building lighting systems.

        PIRA-T8-DE Key Features

        • 360° motion detection up to 50m²: Full coverage in indoor spaces like offices and corridors.
        • 1 lighting output channel (230V relay): Controls LED, fluorescent, halogen, and energy-saving lamps.
        • Mixed light measurement: Ensures accurate response based on movement and ambient brightness.
        • Adjustable lux and delay settings: Set brightness threshold (5–1000 lux) and delay (5s–15min) to suit your space.
        • Recessed ceiling design with IP21 rating: Discreet and ideal for dry indoor environments, fits 2–3m ceiling height.

        PIRA-T8-DE FAQ

        Q: What is the coverage area of this motion sensor?
        A: At a 2.5m ceiling height, it covers up to 50m² with an 8m diameter and 360° detection.

        Q: What types of lighting can it control?
        A: It supports a range of lighting types including LED (up to 200W), incandescent, halogen, and fluorescent.

        Q: Can I adjust the sensor’s brightness and timing settings?
        A: Yes, you can customise the lux level from 5 to 1000 and set the switch-off delay between 5 seconds and 15 minutes.

        (PIRA-T8-DE)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Features
        Specification Details
        Model PIRA T8 DE
        Operating Voltage 230 V AC
        Frequency 50 Hz
        Installation Height 2 - 3 m
        Installation Type Ceiling mounting, Indoor
        Colour White
        Switching Output Light
        Light Measurement Mixed light measurement
        Brightness Setting Range 5 - 1000 lx
        Light Switch-Off Delay 5 s - 15 min
        Lamp Types Incandescent/halogen, fluorescent, energy-saving, LEDs
        Max Load (Incandescent/Halogen) 1000 W
        Max Load (LED 2-8 W) 200 W
        Max Load (LED >8 W) 200 W
        Detection Range 50 m² (ø 8 m | 360°)
        Detection Angle 360°
        Ambient Temperature -5°C to 40°C
        Protection Rating IP21
        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Theben
        SKU PIRA-T8-DE
        Barcode # 4003468102138
        Package Weight 0.160kg
        Package Width 0.100m
        Package Height 0.100m
        Package Length 0.050m
        TYPE VALUE
        Type PIR Sensor
        Brand Theben
        Colour White
        Frequency 50Hz
        IP Rating IP21
        Detection angle 360°
        Brightness Range 5 lx - 1000 lx
        Installation Height 2.5 - 3.5 m
