        FRONIUS PRIMO8.2-1 | 8.2kW 1 Phase 2 MPPT Solar Inverter
        $3,194.12 $2,903.75 ex. GST
        Description

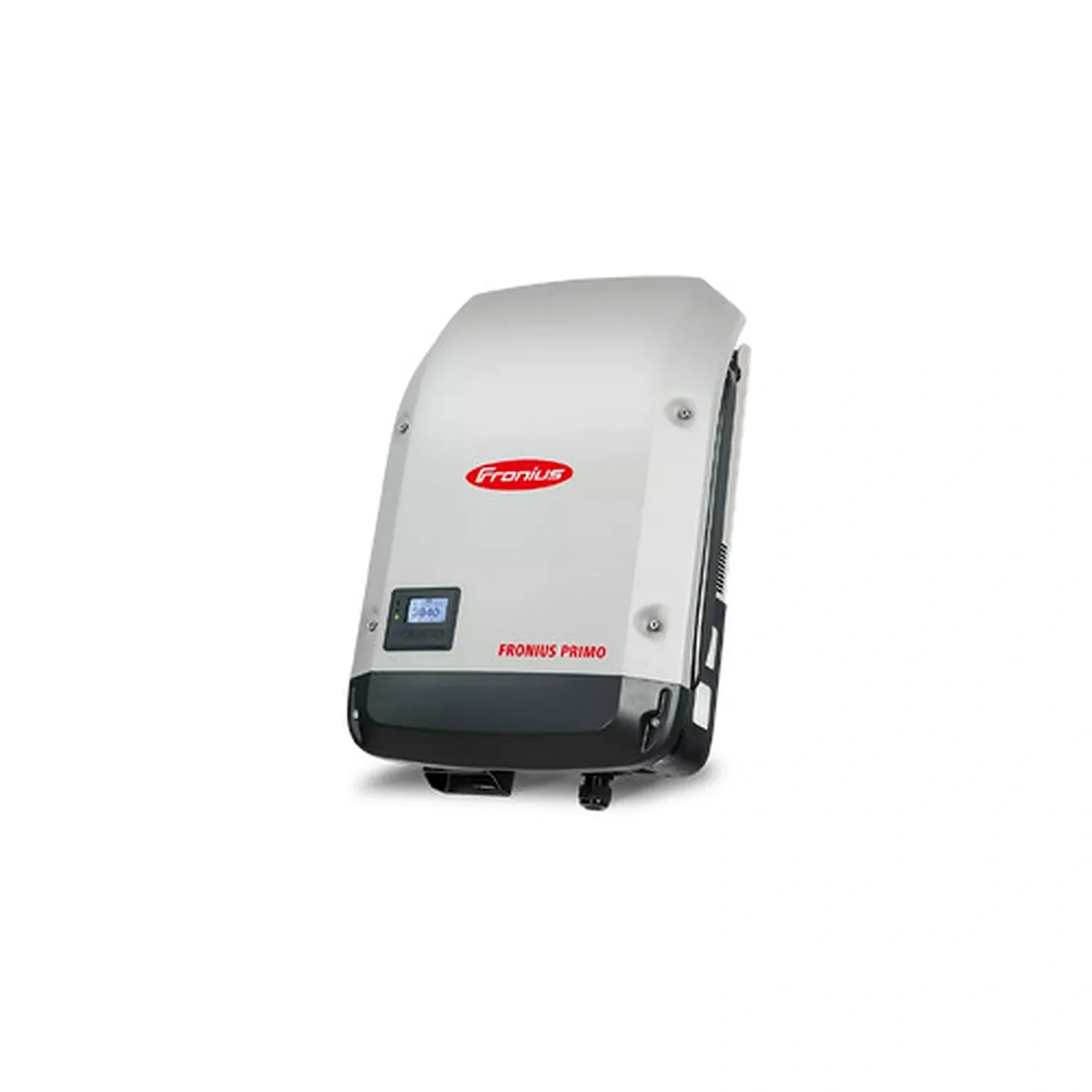

        FRONIUS PRIMO8.2-1 | 8.2kW 1 Phase 2 MPPT Solar Inverter

        Description:

        The Fronius Primo8.2-1 is your gateway to a sustainable and energy-efficient future. This 8.2kW 1 Phase 2 MPPT Solar Inverter is a technological marvel designed to harness the full potential of your solar panels, providing you with clean, renewable energy for your home or business.

        Benefits You Can't Ignore:

        • Dual MPPT Inputs: The Fronius Primo8.2-1 is equipped with not one but two MPPT inputs. This advanced technology enables your solar array to operate at peak efficiency by automatically adjusting its parameters. Say goodbye to energy wastage and hello to higher yields.

        • Powerful Performance: With a staggering 8.2kW power output, this single-phase inverter is perfect for medium-sized residential and commercial solar systems. It effortlessly converts solar energy into electricity, reducing your reliance on conventional power sources.

        • Remote Monitoring: Keep a watchful eye on your solar system from anywhere, anytime. The built-in data communication system allows you to monitor your system remotely, providing valuable insights into its performance. Stay in control, even when you're away.

        • Safety First: Your peace of mind is paramount. This inverter comes equipped with advanced safety features to ensure a secure and reliable system. Rest easy knowing your solar setup is in good hands.

        FAQ:

        Q: What is the advantage of having two MPPT inputs?
        A: Two MPPT inputs mean double the efficiency. The Fronius Primo8.2-1 optimizes your solar array's performance by dynamically adjusting its parameters, ensuring maximum energy conversion.

        Q: Can it handle larger residential or commercial setups?
        A: Absolutely. With an impressive 8.2kW power output, this inverter is perfect for medium-sized residential and commercial solar systems.

        Q: How can I monitor my solar system remotely?
        A: The Fronius Primo8.2-1 comes with a built-in data communication system that allows for remote monitoring. Stay connected to your solar system and track its performance effortlessly.

        Q: Is safety ensured with this inverter?
        A: Absolutely. Your safety is a top priority. The Fronius Primo8.2-1 is equipped with advanced safety features to provide you with a secure and reliable solar solution.

        Elevate your energy future with the Fronius Primo8.2-1. Say goodbye to conventional power sources and hello to clean, renewable energy that's not only good for your wallet but also for the planet. Make the switch today and join the solar revolution!

        (PRIMO8.2-1)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Features

        INPUT DATA



        Number of MPP trackers

        2

        Max. input current (Idc max 1 / Idc max 2)

        18.0A / 18.0A

        Max. array short circuit current (MPP1/MPP2 )

        27.0A / 27.0A

        DC input voltage range (Udc min - Udc max)

        80 - 1000V

        Feed-in start voltage (Udc start)

        80V

        Usable MPP voltage range

        80 - 800V

        Number of DC connections

        2 + 2

        Max. PV generator output (Pdc max)

        12.3kW peak

        OUTPUT DATA



        AC nominal output (Pac,r)

        8200 W

        Max. output power (Pac max)

        8200 VA

        AC output current (Iac nom)

        35.7A

        Grid connection (voltage range)

        1 ~ NPE 220V / 230V (180V - 270V)

        Frequency (frequency range)

        50Hz / 60Hz (45 - 65Hz)

        Total harmonic distortion

        < 5%

        Power factor (cos φac,r)

        0.85 - 1 ind. / cap.

        GENERAL DATA



        Width

        431 mm

        Height

        645 mm

        Depth

        204 mm

        Weight

        21.5 kg

        Degree of protection

        IP65

        Protection class

        1

        Overvoltage category (DC / AC)

        2 / 3

        Night-time consumption

        < 1 W

        Inverter design

        Transformerless

        Cooling

        Regulated air cooling

        Installation

        Indoor and outdoor installation

        Ambient temperature range

        -40°C - +55°C

        Permitted humidity

        0 - 100 %

        Max. altitude 2)

        4000m

        DC connection technology

        4x DC+ and 4x DC- screw terminals 2.5 - 16 mm²

        AC connection technology

        3-pole AC screw terminals 2.5 - 16 mm²

        Certificates and compliance with standards

        DIN V VDE 0126-1-1/A1, IEC 62109-1/-2, IEC 62116, IEC 61727, AS 4777-2, AS 4777-3, G83/2, G59/3, CEI 0-21, VDE AR N 4105 2)

        EFFICIENCY



        Max. efficiency

        98.1 %

        European efficiency (ηEU)

        97.5%

        MPP adaptation efficiency

        >99.9%

        PROTECTION DEVICES



        DC insulation measurement

        Yes

        Overload behaviour

        Operating point shift. Power limitation

        DC disconnector

        Yes

        Reverse polarity protection

        Yes

        RCMU

        Yes

        INTERFACES



        WLAN / Ethernet LAN

        Fronius Solar.web, Modbus TCP SunSpec, Fronius Solar API (JSON)

        6 inputs and 4 digital in/out

        Interface to ripple control receiver

        USB (A socket)

        Datalogging, inverter update via USB flash drive
        2x RS422 (RJ45 socket)

        Fronius Solar Net

        Signalling output

        Energy management (potential-free relay output)

        Datalogger and Webserver

        Included

        External input

        S0-Meter Interface / Input for overvoltage protection

        RS485

        Modbus RTU SunSpec or meter connection

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Fronius
        SKU PRIMO8.2-1
        Shipping Weight 21.5000kg
        Shipping Width 0.481m
        Shipping Height 0.695m
        Shipping Length 0.254m
        Shipping Cubic 0.084910930m3
        TYPE VALUE
        Type Solar Inverter
        Brand Fronius
        Colour White
