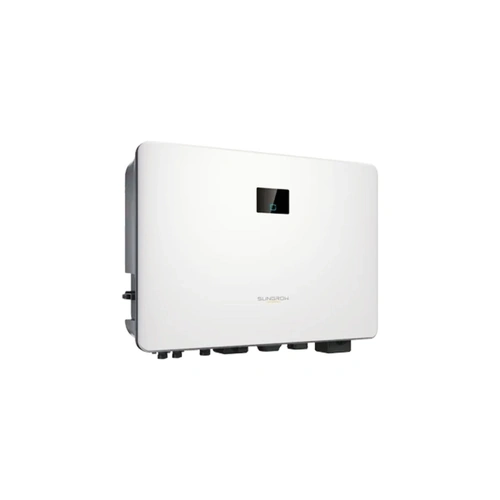

        Sungrow | 6kW Single Phase Hybrid Inverter 13kWp PV Input | IP65 AS/NZS 4777.2

        The Sungrow SH6.0RS-ADA is a 6kW single-phase hybrid solar inverter from the residential RS range, rated 6000W AC output against a recommended maximum PV input of 13,000Wp across two independent MPPTs. The SH6.0RS-ADA accepts a lithium-ion battery anywhere between 80V and 460V at up to 30A charge and discharge, transfers to backup in under 10 milliseconds, and complies with AS/NZS 4777.2. The enclosure is IP65 rated and the unit weighs 18.5kg.

        Battery retrofits are determined by the voltage window. A narrow window commits the installation to a single battery manufacturer for its operational life. A battery subsequently withdrawn from the market then strands the customer with an inverter incapable of accepting a replacement. Array sizing presents the parallel constraint, because a conservative DC ceiling limits the module count before the roof does. The SH6.0RS-ADA widens both. The battery range spans 80V to 460V, and the array ceiling reaches 13,000Wp, a 2.17 to 1 DC oversize.

        The compliance position is what secures approval. Sungrow documents AS/NZS 4777.2 grid compliance and DRM on the datasheet, and the unit arrives with DC and AC Type II surge protection plus an integrated DC isolator already installed within the enclosure. That eliminates components from the string and the switchboard rather than introducing them. Connections are MC4 on the photovoltaic side, Sunclix on the battery, with plug-and-play AC onto a wall-mounting bracket.

        Features

        • 6000W rated AC output, single phase — the SH6.0RS-ADA feeds one phase at 220 to 240V, with rated output current of 26.1A and maximum output current of 27.3A.
        • 13,000Wp recommended maximum PV input — two independent MPPTs across a 40V to 560V MPP range, 600V maximum PV input, and 40A DC short-circuit current split 20A per tracker.
        • 80V to 460V battery voltage range — a wide lithium-ion window that suits retrofit onto existing arrays as readily as new installations.
        • 30A charge and discharge — 6600W maximum charge and discharge power, which lifts self-consumption on households with concentrated evening load.
        • Under 10ms backup transfer — the SH6.0RS-ADA carries 6000W of backup load on grid failure, fast enough that connected equipment does not register the interruption.
        • 97.7% maximum efficiency — 97.3% European efficiency, with harmonic distortion under 3% of rated power and power factor above 0.99 at rated output.
        • AS/NZS 4777.2 and DRM — grid compliance to the Australian standard, with four DI and one DO providing demand response mode support.
        • Integrated DC isolator and Type II surge protection — DC switch on the solar side, DC fuse on the battery side, and Type II surge protection on both DC and AC.
        • Protection suite — grid monitoring, DC reverse polarity, battery input reverse polarity, AC short circuit, leakage current detection, and built-in PID recovery.
        • IP65 transformerless enclosure — rated from -25 to 60 degrees ambient at 0 to 100% humidity, cooled by natural convection with no fan to fail, to 4000m altitude.
        • RS485, Ethernet, WLAN and CAN — iSolarCloud monitoring on app and web at a 10-second refresh, alongside an integrated LED digital display and indicator.
        • MC4 PV and Sunclix battery connectors — plug-and-play AC connection onto a supplied wall-mounting bracket, at 490 x 340 x 170mm and 18.5kg.

        Where to use

        • Battery retrofits to existing single-phase PV — the 80 to 460V window keeps battery selection open rather than locking the SH6.0RS-ADA to one product line.
        • New build solar and storage — a 13,000Wp ceiling lets the array be sized to the roof rather than to the inverter.
        • Households wanting blackout backup — under 10ms transfer holds a backup circuit through a grid interruption without a visible dropout.
        • High evening self-consumption — 30A discharge covers a household that cooks, charges, and runs air conditioning after sunset.
        • Sites with frequent supply interruptions — regional and semi-rural properties where the grid goes down often enough to justify storage.
        • Fleet-monitored and maintained systems — iSolarCloud at 10-second refresh, plus online IV curve scan and diagnosis, supports remote fault-finding.
        • Outdoor wall mounting — IP65 and natural convection cooling suit an external wall where a fan-cooled unit would draw dust.

        The SH6.0RS-ADA is single phase only, so a three-phase installation needs a different inverter class entirely. Sungrow specifies lithium-ion batteries only within the 80 to 460V window, which rules out lead-acid, and battery selection should be confirmed against Sungrow's approved list before ordering. The 6000W AC ceiling stands regardless of the 13,000Wp DC input, so oversizing lifts yield in poor light rather than peak output. Installation must be carried out by a licensed electrician and the grid connection made in accordance with AS/NZS 4777.2.

        (SH6.0RS-ADA)

        Yes. Sungrow lists AS/NZS 4777.2 grid compliance on the datasheet, alongside IEC/EN 62109-1, IEC/EN 62109-2, IEC/EN 61000-3-11, IEC/EN 61000-3-12 and EN 62477-1. The inverter also provides DRM support through four digital inputs and one digital output, which demand response modes require.

        Lithium-ion batteries with a voltage between 80V and 460V. That window is wide enough to suit both retrofit and new installations rather than committing the system to one product line. Lead-acid is not supported. Confirm the specific battery against Sungrow's approved list before ordering.

        Sungrow gives a recommended maximum PV input of 13,000Wp against a 6000W AC output, which is roughly a 2.17 to 1 DC oversize. Maximum PV input voltage is 600V across two independent MPPTs with a 40V to 560V MPP range. The AC ceiling stays at 6000W regardless of array size.

        Under 10 milliseconds, carrying 6000W of backup load in on-grid mode. That transfer is fast enough that most connected equipment does not register the interruption. Backup circuits need to be wired and separated at the switchboard by the installing electrician as part of the design.

        More than most inverters at this class. Type II surge protection on both the DC and AC sides, a DC switch on the solar input, a DC fuse on the battery input, plus DC and battery reverse polarity protection, AC short circuit protection, leakage current detection, and grid monitoring. PID recovery is also built in.

        Through iSolarCloud on app or web at a 10-second data refresh, over WLAN, Ethernet, RS485 or CAN. An LED digital display and indicator sit on the unit itself. Online IV curve scan and diagnosis is supported, which helps identify string faults without attending the site.

        No. The SH6.0RS-ADA is a single-phase inverter with one feed-in phase and one connection phase, rated 220 to 240V. Three-phase installations need a three-phase hybrid such as the Sungrow SH10RT. Confirm phase configuration before ordering, since this is not a setting that can be changed.

        Ten years in two phases. The first 5 years cover full product replacement for any defect. The following 5 years cover parts only, with the warranty paying for components needing replacement or repair. Warranty runs from the invoice date and claims are handled by return to Sparky Direct.

        The Sungrow SH6.0RS-ADA is available online from Sparky Direct, with Australia-wide delivery to any state or territory including regional areas. Sparky Direct is an Australian electrical wholesaler established in 2005, supplying more than 500,000 customers with transparent trade pricing.

        100-Day Fuss-Free Returns
        We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.

        • Items must be unused, with all parts, accessories, and original packaging.
        • We can’t accept returns if the product is damaged, incomplete, or not in resalable condition.
        • Proof of purchase is required.
        • Return shipping is the responsibility of the customer.

        If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.


        All products come with a manufacturer’s or supplier’s warranty

        • Warranty starts from the Invoice Date
        • Some suppliers offer in-home warranties and handle claims directly, so you won’t need to uninstall or return the product. Chat with us to check if your product qualifies.
        • Sparky Direct isn’t responsible for losses caused by product failure.
        • Warranties are void if products aren’t installed by a licensed electrician.

        Damaged or Faulty Goods
        If your order arrives damaged or is faulty, let us know within 24 hours.

        • Sparky Direct will pay for return shipping via an emailed return label.
        • If the fault is confirmed, we will send you a replacement item or provide a refund.

        Contact us via our chat to arrange the return.


        Exclusions
        We can’t accept returns for:

        • Items that have been installed, modified, or used
        • Clearance, End of life, Discontinued, or special order items (unless faulty)
        • All PPE Items
        • Goods returned without original packaging or proof of purchase

        How to Request a Return

        1. Contact our customer service team with your order number.
        2. Confirm it’s eligible under our return or warranty policy.
        3. Pack the item securely and return it using a trackable service.
        4. Once we receive and inspect it, we’ll process your refund or replacement.

        Warranty starts from Invoice Date

        This warranty offers a combined coverage of 10 years, divided into two phases:

        First 5 Years: During this period, you are entitled to a full product replacement in case of any issues or defects. This means if your product malfunctions within the first 5 years, you'll receive a brand-new replacement.

        Following 5 Years: After the initial 5 years, the warranty continues for an additional 5 years, but it shifts to covering parts only. In this phase, if any product components need replacement or repair, the warranty will cover the cost of those parts.

        This comprehensive warranty (Warranty Method: Return to Sparky Direct) ensures both the longevity and performance of your product, offering you peace of mind for a full decade.

        Specification Details
        Model SH6.0RS-ADA
        Recommended Max. PV Input Power 13000 Wp
        Max. PV Input Voltage 600 V
        MPPT Operating Voltage Range 40 V – 560 V
        Max. DC Short-Circuit Current 40 A (20 A / 20 A)
        Battery Voltage Range 80 V - 460 V
        Max. Charge/Discharge Current 30 A / 30 A
        Rated AC Output Power 6000 W
        Max. Output Power (Backup Mode) 6000 W
        Max. Efficiency 97.7%
        European Efficiency 97.3%
        Display LED digital display & LED indicator
        Dimensions (W × H × D) 490 mm × 340 mm × 170 mm
        Weight 18.5 kg
        Degree of Protection IP65
        Cooling Method Natural convection
        Country of Manufacture China

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand SUNGROW
        SKU SH6.0RS-ADA
        Package Weight 23.850kg
        TYPE VALUE
        Type Hybrid Inverter
        Brand Sungrow
        Colour White
        Height (mm) 340
        Width (mm) 490
        Depth (mm) 170
        Mounting Wall Bracket
        Voltage (V) 220-240
        Kilowatt Rating (kW) 6kW
        IP Rating IP65
