        SUNGROW SG3.0RS | 3000 W Double-MPPT String Inverter for 600 Vdc
        $1,122.00 $1,020.00 ex. GST
        Description

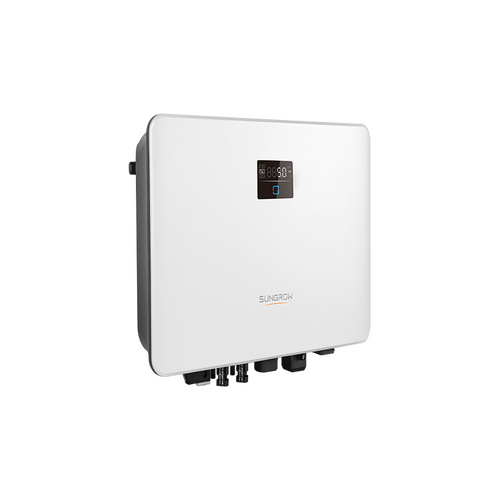

        SUNGROW SG3.0RS | 3000 W Double-MPPT String Inverter for 600 Vdc

        Description:

        Are you ready to supercharge your solar energy system? Meet the Sungrow SG3.0RS, the double-MPPT string inverter designed to take your home's energy generation to the next level. With compatibility, user-friendly features, safety, and smart management, this inverter is a game-changer for your solar setup.

        Key Benefits:

        • High Yield: The SG3.0RS is fully compatible with high-power PV modules and advanced bifacial modules, ensuring you get the most out of your solar panels. It offers a lower startup threshold and an extended MPPT voltage range for exceptional energy capture.

        • User-Friendly Setup: Installing and configuring your solar inverter has never been easier. This plug-and-play solution simplifies the installation process, while one-click access to the iSolarCloud monitoring platform provides real-time insights into your system's performance.

        • Safe and Reliable: Safety is paramount in any electrical system. The SG3.0RS is equipped with an integrated arc fault circuit interrupter (AFCI) and built-in Type II DC&AC SPD (surge protection device) for enhanced protection. It also boasts a corrosion protection rating at C5, ensuring long-lasting reliability even in challenging environments.

        • Smart Management: Get ready for unprecedented control and monitoring capabilities. The SG3.0RS provides real-time data with a rapid 10-second refresh rate. You can monitor your system 24/7, both online and through the integrated display. Plus, perform online IV curve scans and diagnostics with ease.

        FAQ:

        Q: How does the SG3.0RS enhance energy yield?
        A: The SG3.0RS is optimized for high-power PV modules and bifacial modules, allowing you to harness more energy from your solar panels. It features a lower startup threshold and an extended MPPT voltage range for maximum yield.

        Q: Is the installation process complicated?
        A: Not at all. This inverter offers a plug-and-play installation, making it remarkably user-friendly. Additionally, you can easily monitor your system through the iSolarCloud platform.

        Q: How does the SG3.0RS prioritize safety?
        A: Safety is a top priority. The SG3.0RS features an integrated arc fault circuit interrupter (AFCI) and built-in Type II DC&AC SPD for added protection. It also boasts a high corrosion protection rating (C5) for long-term reliability.

        Q: What kind of monitoring capabilities does this inverter offer?
        A: With a rapid 10-second refresh rate, the SG3.0RS provides real-time data. You can monitor your system around the clock, both online and through the integrated display. Additionally, it allows for online IV curve scans and diagnostics.

        Q: How compact is the SG3.0RS?
        A: This inverter is designed to be light, compact, and efficient. Its optimized heat dissipation design ensures it remains reliable even in demanding conditions.

        Don't miss out on the opportunity to elevate your solar energy system's performance. Upgrade to the Sungrow SG3.0RS double-MPPT string inverter and experience the future of solar energy firsthand.

        (SG3.0RS)

        Warranty

        Warranty starts from Invoice Date

        This warranty offers a combined coverage of 10 years, divided into two phases:

        First 5 Years: During this period, you are entitled to a full product replacement in case of any issues or defects. This means if your product malfunctions within the first 5 years, you'll receive a brand-new replacement.

        Following 5 Years: After the initial 5 years, the warranty continues for an additional 5 years, but it shifts to covering parts only. In this phase, if any product components need replacement or repair, the warranty will cover the cost of those parts.

        This comprehensive warranty (Warranty Method: Return to Sparky Direct) ensures both the longevity and performance of your product, offering you peace of mind for a full decade.

        Features
        Input (DC)
        Recommended max. PV input power 4.5 kWp
        Max. PV input voltage 600 V
        Min. operating PV voltage / Start-up input voltage 40 V / 50 V
        Rated PV input voltage 360 V
        MPP voltage range 40 – 560 V
        No. of independent MPP inputs 2
        Default No. of PV strings per MPPT 1
        Max. PV input current 32A (16A/16A)
        Max. DC short-circuit current 40A (20A/20A)
        Output (AC)
        Rated AC output power 3000W
        Max. AC Output power 3000W
        Rated AC output current (at 230V) 13.1A
        Max. AC output current 13.7A
        Rated AC voltage 220V/230V/240V
        AC voltage range 154-276V
        Rated grid frequency / Grid frequency range 50 Hz / 45 – 55 Hz, 60 Hz / 55 – 65 Hz
        Harmonic (THD) < 3 % (at rated power)
        Power factor at rated power / Adjustable power factor > 0.99 / 0.8 leading – 0.8 lagging
        Feed-in phases / Connection phases 1/1
        Efficiency
        Max. efficiency 97.9%
        European efficiency 97.0%
        Protection
        Grid monitoring Yes
        DC reverse polarity protection Yes
        AC short-circuit protection Yes
        Leakage current protection Yes
        Surge Protection DC type II / AC type II
        DC switch Yes
        PV string current monitoring Yes
        Arc fault circuit interrupter (AFCI) Yes
        PID Zero Function Yes
        Optimizer Compatibility Optional
        General Data
        Dimensions (W*H*D) 410 * 270 * 150 mm
        Weight 10 kg
        Mounting method Wall-mounting bracket
        Topology Transformerless
        Degree of protection IP65
        Operating ambient temperature range -25 to 60 ℃
        Allowable relative humidity range (non-condensing) 0 – 100 %
        Cooling method Natural cooling
        Max. operating altitude 4000 m
        Display LED digital display & LED indicator
        Communication Ethernet / WLAN / RS485 / DI (Ripple control & DRM)
        DC connection type MC4 (Max. 6 mm² )
        AC connection type Plug and play connector (Max. 6 mm² )
        Grid compliance IEC / EN62109-1/2, IEC / EN62116, IEC / EN61727, IEC / EN61000-6-2/3, EN50549-1, AS4777.2, ABNT NBR 16149, ABNT NBR 16150, UNE 217002:2020, NTS V2 TypeA, CEI 0-21:2020, VDE0126-1-1/A1 ( VFR-2019 ), UTE C15-712, C10/11, G98/G99,
        Grid Support Active & reactive power control and power ramp rate control
        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand SUNGROW
        SKU SG3.0RS
        Shipping Weight 12.0000kg
        Shipping Width 0.460m
        Shipping Height 0.320m
        Shipping Length 0.200m
        Shipping Cubic 0.029440000m3
        TYPE VALUE
        Type String Inverter
        Brand Sungrow
        Colour White
