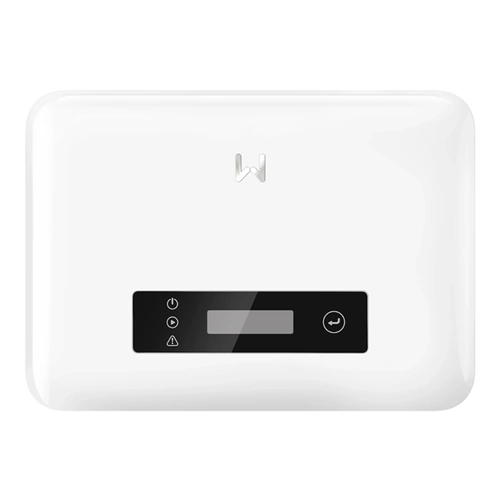

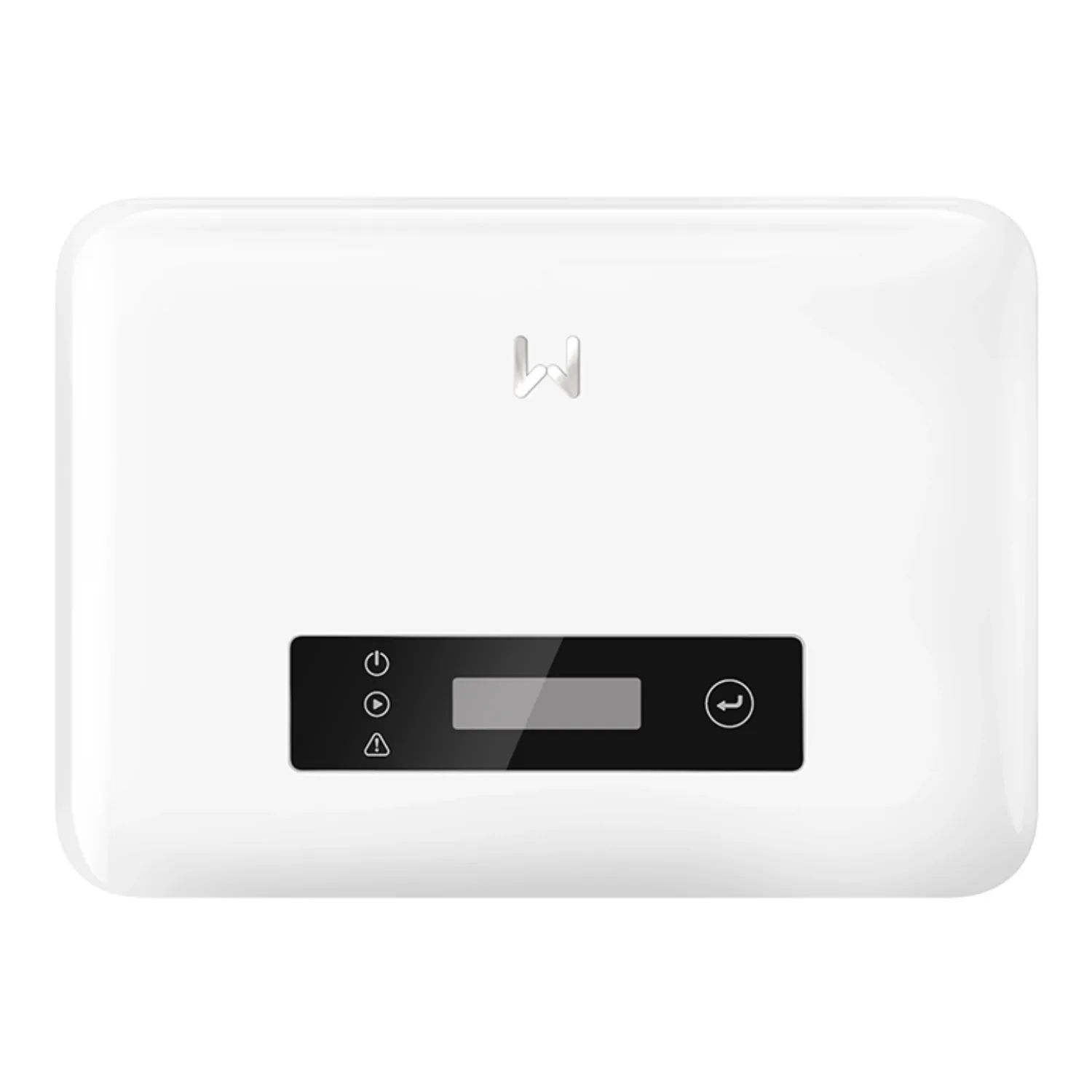

GoodWe | XS G3 Solar Inverter 3kW Single Phase 1 MPPT | IP66 Non-Isolated
The GoodWe GW3000-XS-30 is a 3kW single phase grid-tied solar inverter from the XS G3 series, built around a single MPP tracker taking one string. The GW3000-XS-30 delivers 3000W nominal output at 220, 230 or 240V AC, with a maximum efficiency of 97.6% and a European efficiency of 97.1%. It carries an IP66 ingress rating and cools by natural convection, so there is no fan to fail or to make noise. The unit weighs 4.6kg and measures 306mm wide by 218mm high by 119mm deep.
Small residential arrays occupy an awkward specification bracket. The roof accommodates six or eight panels, the household consumption does not justify a 5kW unit, and the string still requires an inverter that will not become the limiting factor in annual yield. Deliberately undersizing the inverter against the array is now standard installation practice, so the DC oversizing headroom matters more than the nameplate rating. The GW3000-XS-30 accepts 200% DC input oversizing across a 40 to 550V MPPT window, with a 16A maximum input current on its single tracker.
Installers judge a small inverter on the interval between unpacking it and commissioning it. The GW3000-XS-30 is A4 sized and 4.6kg, which makes it a single-operator lift onto a mounting bracket at height. Its plug and play AC connector and MC4 DC connectors reduce termination time, and the DC switch is integrated rather than mounted separately alongside the unit. Configuration and ongoing monitoring both run through the onboard LCD and the application over WLAN.
Features
- 3kW nominal output — the GW3000-XS-30 delivers 3000W nominal active power and 3000VA apparent power at a maximum output current of 13.7A.
- 200% DC oversizing — the array can be sized to twice the inverter rating, which lifts generation through mornings, afternoons and overcast conditions.
- 97.6% maximum efficiency — the GW3000-XS-30 peaks at 97.6% conversion efficiency, with a European weighted efficiency of 97.1% across the load range.
- Single MPP tracker — one tracker taking one string, rated to 16A maximum input current and 25A maximum short circuit current.
- 40 to 550V MPPT window — a wide tracking range that holds the array at its maximum power point across changing irradiance and temperature.
- IP66 ingress rating — sealed to IP66, so the GW3000-XS-30 mounts indoors or outdoors in an exposed position.
- Fanless natural convection — cooling is passive with no fan, keeping noise emission below 20dB and removing the most common moving-part failure.
- Integrated protection set — PV insulation resistance detection, residual current monitoring, PV reverse polarity protection, anti-islanding and a DC switch are all built in.
- Type III surge protection — Type III surge protection on both the DC and AC sides, with Type II available as an option on either side.
- A4 footprint at 4.6kg — 306mm wide, 218mm high and 119mm deep, light enough for one installer to mount without a second pair of hands.
- Single string limit — the GW3000-XS-30 has one MPPT accepting one string only, so arrays split across two orientations cannot be tracked separately.
Where to use
- Small residential arrays — six to ten panel systems on houses and units where roof area or household load does not warrant a larger inverter.
- Outdoor wall mounting — the GW3000-XS-30 is IP66 rated, so it mounts on an external wall without a separate weatherproof enclosure.
- Inverter replacements — swapping a failed or out-of-warranty inverter on an existing 3kW array without re-engineering the string.
- Granny flats and secondary dwellings — self-contained dwellings on a modest single phase supply with a small dedicated array.
- Sheds, studios and outbuildings — the GW3000-XS-30 suits standalone grid-connected structures where the roof carries a single string.
- Monitored installations — systems where the owner or installer wants remote performance data through WiFi, LAN or RS485 into a monitoring platform.
The GW3000-XS-30 is a grid-tied inverter and does not provide backup or off-grid supply, so it stops exporting when the grid drops out. It has one MPPT taking a single string, which rules out arrays split across two roof faces with different orientation or shading. Installation and grid connection are restricted to a licensed electrician holding the relevant solar accreditation.
