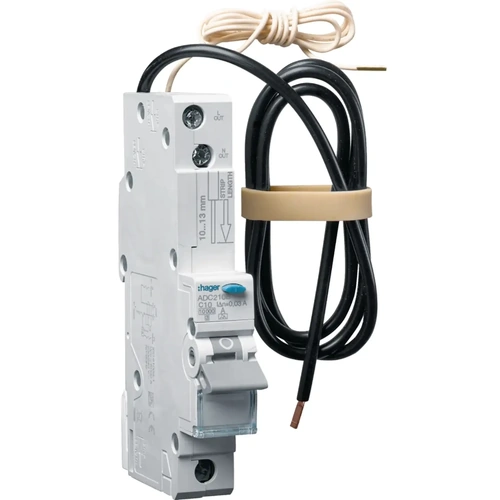

        Hager ADC210B | 10A 10kA Single Pole RCBO | 30mA

        The Hager ADC210B is a compact 10A single-pole RCBO combining overcurrent and residual current protection in one DIN-mountable unit. With a 10kA breaking capacity, 30mA Type A earth leakage detection, and a C Curve tripping profile, it suits most residential and light commercial switchboards.

        Rated for 230-240V AC, it features top screw terminals and a bottom biconnect connection, accepts up to 25mm² conductors, and offers excellent durability with up to 10,000 mechanical operations. Designed to perform in ambient temperatures from -5°C to 40°C, it provides safe, long-lasting protection with a slim 1-module profile.

        ADC210B Features

        • Combined Protection: 10A overload + 30mA Type A residual current protection
        • High Breaking Capacity: 10kA short-circuit rating for demanding circuits
        • C Curve Trip: Suited for general-purpose loads with moderate inrush currents
        • Compact DIN Mount: 1-module wide with screw/biconnect terminals
        • Durable & Versatile: Supports up to 25mm² cable, IP20 rated, -5°C to 40°C range

        ADC210B FAQ

        Q: Is this suitable for residential switchboards?
        A: Yes, it fits most DIN rail boards and meets typical residential requirements.

        Q: What type of RCD protection does it offer?
        A: It’s a Type A RCD, detecting both AC and pulsating DC leakage currents.

        Q: Will it fit large conductors?
        A: Yes, it supports both flexible and solid cables up to 25mm².

        (ADC210B)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 2 Year
        Commercial Use: 2 Year
        Warranty Method: Return to Sparky Direct

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Hager Electrical
        SKU ADC210B
        Model # ADC210B
        Barcode # 3250611035497
        Package Weight 0.191kg
        Package Width 0.035m
        Package Height 0.075m
        Package Length 0.145m
        TYPE VALUE
        Type Circuit Protection
        Brand Hager Electrical
        Rated Current (A) 10
        Height (mm) 115mm
        Width (mm) 17.8mm
        Depth (mm) 70mm
        IP Rating IP20
        Curve C
