        Hager | Bluetooth Programming Key for EGN103 Time Switch | Bluetooth 4.2

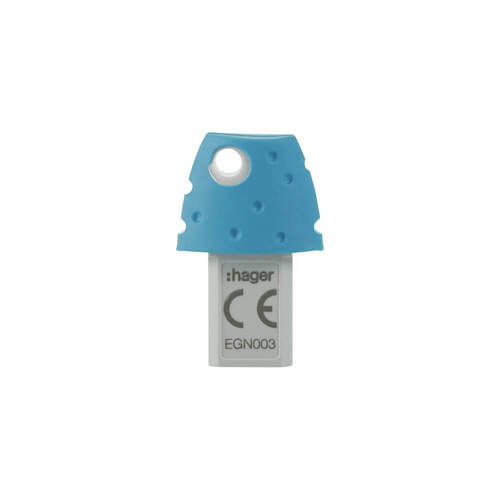

        The Hager EGN003 is a Bluetooth programming key for the EGN103 digital time switch, rated Bluetooth 4.2 over a 1 to 3 metre range. The key plugs into the time switch and pairs with a smartphone, tablet or PC, so switching programs are written in the Hager Mood app. The EGN003 runs on 3.3 V DC, draws under 11 mA while transmitting, and carries an IP20 protection class. Hager declares it compliant with Directive 2014/53/EU.

        Setting a weekly program on the time switch itself means working through the device buttons at the board. The EGN003 moves that to a phone, tablet or PC: on and off times, exceptions and priorities are set in the Hager Mood app and sent over Bluetooth. The key also copies and saves switching programs, so an existing schedule can be kept before it is changed. Pairing is confirmed by hand on the time switch, which lights briefly as it connects.

        The key works on an EGN103 already in service, and on one still on the bench. A program can be built in the Hager Mood app ahead of time, then sent once the switch is powered and paired. Program data from the app is held in the Hager Cloud, and editing and access rights can be passed to the customer through myHager. The key is a separate tool and is not supplied with the EGN103 time switch.

        Features

        • Built for the EGN103 — the EGN003 converts the EGN103 weekly time switch to Bluetooth programming from a phone, tablet or PC.
        • Bluetooth 4.2 — the key connects to the time switch over a Bluetooth 4.2 radio link.
        • 1 to 3 metre range — working distance between the EGN003 and the handset runs from 1 to 3 metres, depending on the surroundings.
        • 10 mW transmit power — maximum transmitting power is 10 mW on the 2.4 to 2.483 GHz band.
        • Low current draw — consumption sits under 11 mA while transmitting and under 5 mA while receiving.
        • App platform minimums — the Hager Mood app runs on iOS 8 or later, Android 5.1 or later, and Windows 10 or later.
        • Bluetooth 4.2 handset — the phone, tablet or PC pairing with the key needs Bluetooth 4.2 or later.
        • Copies switching programs — the key copies and saves an existing switching program, not only writes a new one.
        • IP20 protection class — the EGN003 is rated IP20, so it suits dry indoor use and is not sealed against water or dust.
        • Operating temperature — rated for use between -5 °C and +45 °C, and storage between -20 °C and +70 °C.

        Where to use

        • Indoor switchboards and distribution boards — the EGN003 plugs into an EGN103 on the DIN rail so the program is set from a phone at the board.
        • Programs built before install — the schedule is written in the Hager Mood app ahead of time and transferred once the timer is powered.
        • Commercial lighting timers — shop window and entrance lighting running on an EGN103 can have on and off times reset in the app.
        • Program copy and backup — an existing switching program is copied and saved off the timer before anything is changed.
        • Customer handover — program data held in the Hager Cloud can be passed on with editing and access rights through myHager.

        The EGN003 is a programming key and switches no load of its own. It carries an IP20 protection class, so it is not sealed against water or dust and is not for damp or exposed positions. Hager rates the key for use between -5 °C and +45 °C and storage between -20 °C and +70 °C.

        (EGN003)

        The EGN003 is a small Bluetooth key that plugs into a Hager EGN103 time switch. With it in place, the switching program is set from a phone, tablet or PC in the Hager Mood app instead of through the buttons on the timer. The key does no switching itself.

        No. The key is built for the EGN103 weekly time switch. The yearly multi-channel timers in the same range already have Bluetooth built in, so they take no key. Check the model number on the front of the timer before ordering.

        The Hager Mood app, free from the Apple App Store, Google Play Store or Microsoft Store. The handset needs iOS 8 or later, Android 5.1 or later, or Windows 10 or later, plus Bluetooth 4.2 or later. Anything below those versions will not pair.

        One to three metres, depending on what sits around the board. The link runs on the 2.4 to 2.483 GHz band at up to 10 mW, so it is a short-range connection rather than a whole-of-building one. Pairing is confirmed by hand on the time switch, which lights briefly.

        Yes. The key copies and saves switching programs as well as writing them. Program data held in the Hager Mood app is stored in the Hager Cloud, and editing and access rights can be passed to the customer through myHager.

        Dry indoor positions only. The key is rated IP20, so it is not sealed against water or dust. Hager rates it for use between -5 °C and +45 °C and storage between -20 °C and +70 °C. Keep it out of damp or exposed locations.

        Hager covers the key for two years. The warranty runs from the invoice date and is handled by returning the item to Sparky Direct. There is also a 100-day money back guarantee on unused items returned complete with their packaging and proof of purchase.

        The Hager EGN003 is available online from Sparky Direct, with Australia-wide delivery to any state or territory including regional areas. Sparky Direct is an Australian electrical wholesaler established in 2005, supplying more than 500,000 customers with transparent trade pricing.

        100-Day Fuss-Free Returns
        We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.

        • Items must be unused, with all parts, accessories, and original packaging.
        • We can’t accept returns if the product is damaged, incomplete, or not in resalable condition.
        • Proof of purchase is required.
        • Return shipping is the responsibility of the customer.

        If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.


        All products come with a manufacturer’s or supplier’s warranty

        • Warranty starts from the Invoice Date
        • Some suppliers offer in-home warranties and handle claims directly, so you won’t need to uninstall or return the product. Chat with us to check if your product qualifies.
        • Sparky Direct isn’t responsible for losses caused by product failure.
        • Warranties are void if products aren’t installed by a licensed electrician.

        Damaged or Faulty Goods
        If your order arrives damaged or is faulty, let us know within 24 hours.

        • Sparky Direct will pay for return shipping via an emailed return label.
        • If the fault is confirmed, we will send you a replacement item or provide a refund.

        Contact us via our chat to arrange the return.


        Exclusions
        We can’t accept returns for:

        • Items that have been installed, modified, or used
        • Clearance, End of life, Discontinued, or special order items (unless faulty)
        • All PPE Items
        • Goods returned without original packaging or proof of purchase

        How to Request a Return

        1. Contact our customer service team with your order number.
        2. Confirm it’s eligible under our return or warranty policy.
        3. Pack the item securely and return it using a trackable service.
        4. Once we receive and inspect it, we’ll process your refund or replacement.

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Technical specifications
        Supply voltage: 3.3 Vdc
        Consumption: Tx: < 11 mA; Rx: < 5 mA
        Operating temperature: -5 °C to +45 °C
        Storage temperature: -20 °C to + 70 °C
        Protection class: IP20
        Radio frequency: 2.4-2.483 GHz
        Max. transmitting power: 10 mW
        Bluetooth® version: 4.2
        Range: 1 to 3 m (depending on the environment)
        Mobile/PC terminal configuration:
          iOS version equal to or greater than 8
          Android version equal to or greater than 5.1
          Windows version equal to or greater than 10
          Bluetooth® version equal to or greater than 4.2
        Weight: 10 g
        Dimensions H x W x D: 30 x 19 x 9 mm

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Hager Electrical
        SKU EGN003
        Model # EGN003
        Barcode # 3250618502442
        Package Weight 0.018kg
        TYPE VALUE
        Type Bluetooth Accessory
        Brand Hager
        Colour Blue
        Height (mm) 30
        Width (mm) 19
        Depth (mm) 9
        Voltage (V) 3.3
        IP Rating IP20
        Weight (g) 10
