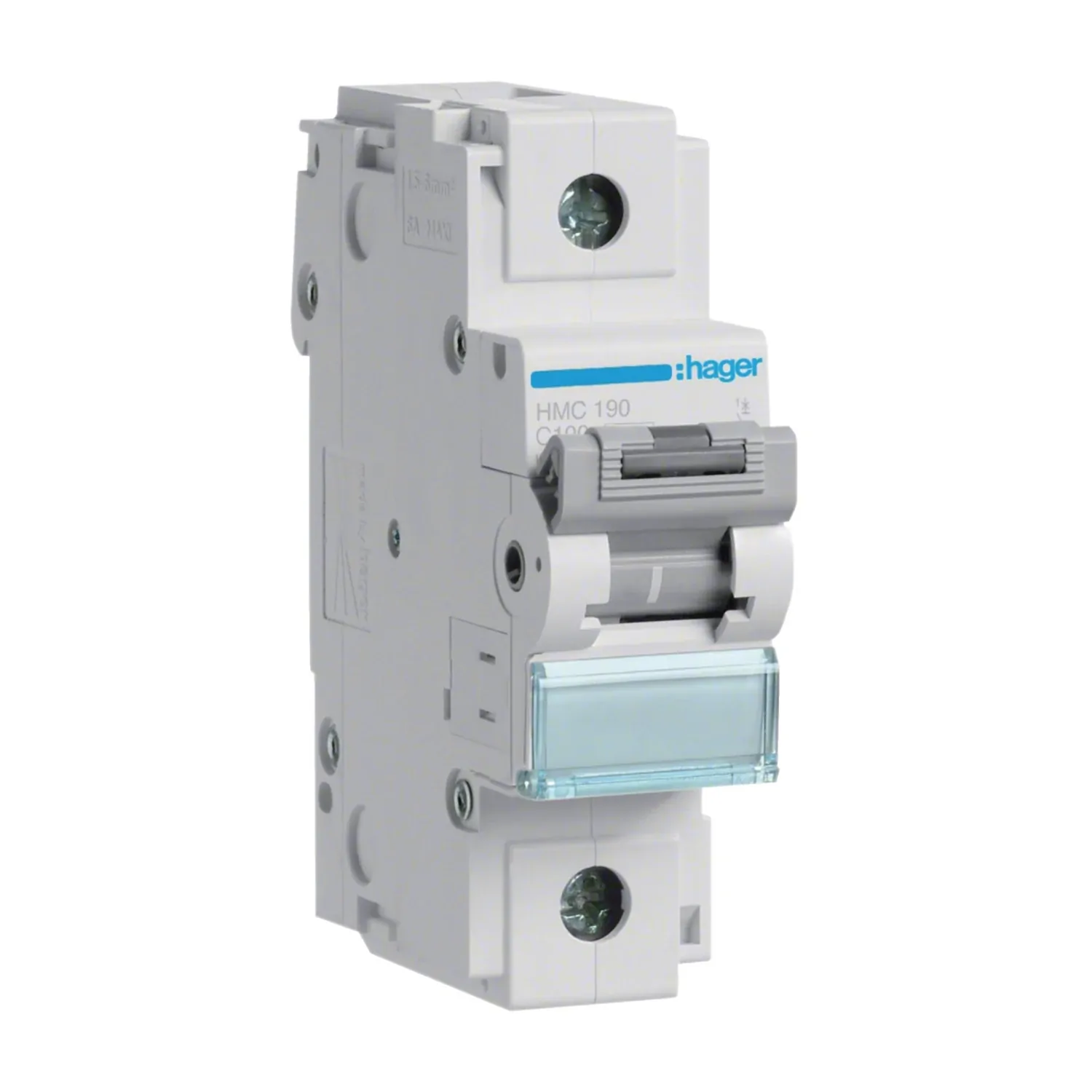

The Hager HMC190T is a 100A 1-pole miniature circuit breaker with a high 15kA short-circuit breaking capacity. Designed with a C-curve tripping characteristic, it protects against overloads and short circuits in high-load applications. Operating at 230–415V AC, it's suitable for both commercial and industrial electrical systems.
This MCB supports screw terminal connections with up to 70mm² rigid conductors, offering robust termination. Its compact 1.5 module width saves valuable space in switchboards, while an IP20 protection rating ensures safe handling. Complies with IEC 60898-1 and IEC 60947-2 for use in certified installations.
(HMC190T)
The Hager HMC190T is used to protect high-load single-phase circuits in commercial and industrial switchboards from overloads and short circuits.
A 15kA rating means the breaker can safely interrupt very high fault currents, which is important in commercial and industrial installations.
C-curve breakers are commonly used where moderate inrush currents are expected, such as motors, transformers, and inductive loads.
It has a compact 1.5-module width, which helps save space in distribution boards where room is limited.
It supports large conductors, accepting up to 70mm² rigid and 50mm² flexible cables, depending on installation requirements.
Yes. Sparky Direct stocks the Hager HMC190T with fast dispatch and fast Australia-wide delivery.
100-Day Fuss-Free Returns
We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.
If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.
All products come with a manufacturer’s or supplier’s warranty
Damaged or Faulty Goods
If your order arrives damaged or is faulty, let us know within 24 hours.
Contact us via our chat to arrange the return.
Exclusions
We can’t accept returns for:
How to Request a Return
Warranty starts from Invoice Date
Domestic Use: 2 Year
Commercial Use: 2 Year
Warranty Method: Return to Sparky Direct
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | Hager Electrical |
| SKU | HMC190T |
| Model # | HMC190T |
| Package Weight | 0.245kg |
| Package Width | 0.100m |
| Package Height | 0.040m |
| Package Length | 0.080m |
| TYPE | VALUE |
|---|---|
| Type | Circuit Protection |
| Brand | Hager Electrical |
| Rated Current (A) | 100 |
| Height (mm) | 90 |
| Width (mm) | 27 |
| Depth (mm) | 70 |
| Mounting | Din Rail |
| Curve | C |
| Rated Voltage (V) | 230-415 |
| Breaking Capacity (kA) | 15 |
