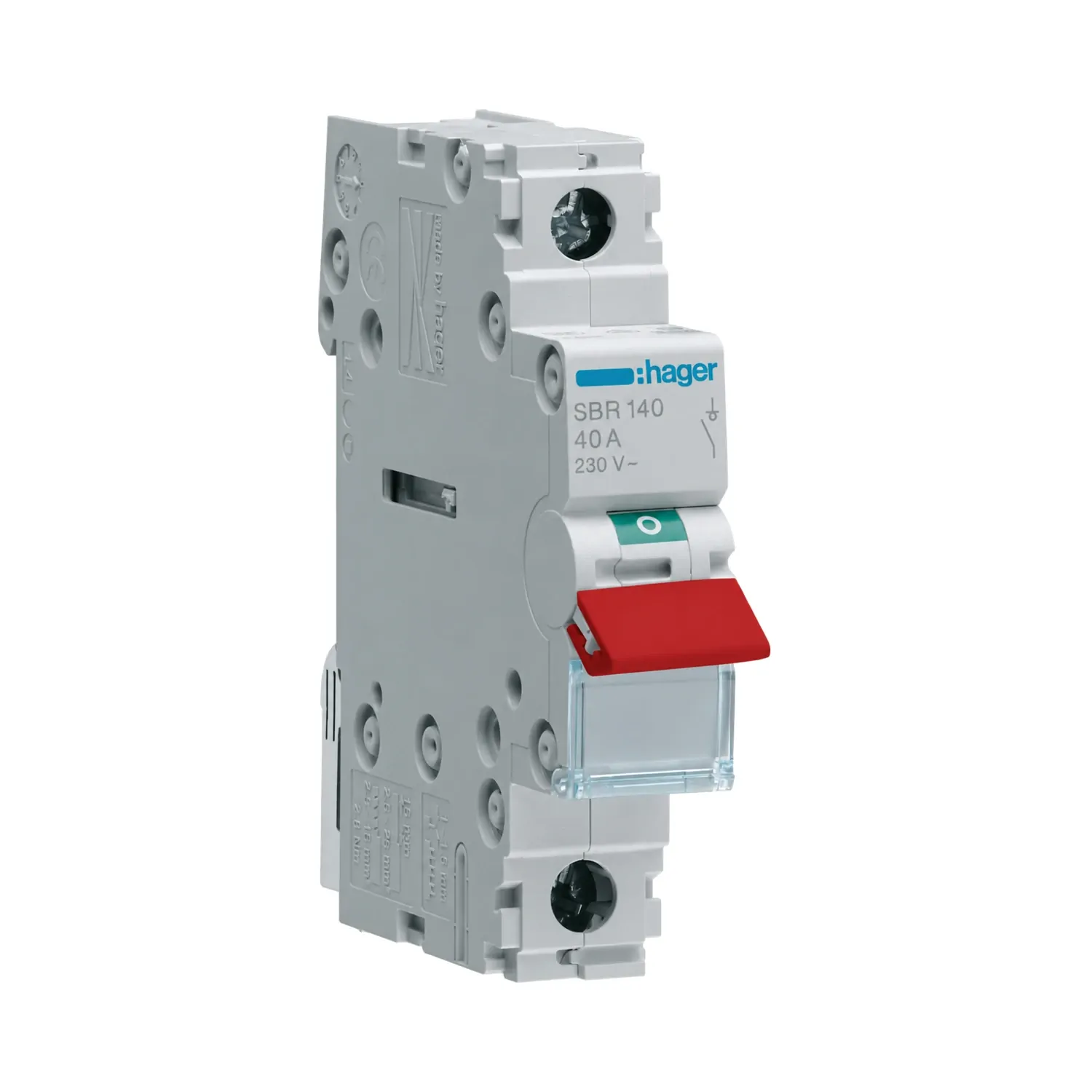

The Hager SBR140 is a single pole modular load break switch rated 40A at 230V AC. The SBR140 takes one DIN rail module and is rated 40A in AC21 and AC22 under IEC 60947-3. It is IP20, with 440V rated insulation and a 6000V impulse rating.
Switchboards often need a dedicated isolation point ahead of a submain, a pump circuit or a hot water service. The SBR140 is rated for that work, with 60,000 mechanical operations and 5,000 switching cycles at full load. The red toggle picks the isolator out on a crowded board face.
The SBR140 clips onto standard DIN rail and takes one module of board space, with top and bottom terminals in line and a biconnect bottom connection. Screws pull up to 2.80 Nm on 25 mm2 rigid or 16 mm2 flexible conductor. Power loss sits at 1.10 W when the switch is carrying its full 40A.
The SBR140 is rated IP20, so it goes inside a board or enclosure, not in an exposed or outdoor spot. It switches, it does not protect: there is no overcurrent or earth leakage trip, and the 6000A short circuit rating only holds with an 80A gG fuse upstream. Anything outside -20 to 70 degrees C is past its rated range.
(SBR140)
The SBR140 is a single pole switch that isolates a 230V circuit at the board. It handles up to 40A, takes one module of DIN rail, and the red toggle makes the isolation point easy to pick out.
The SBR140 is made for switching, not protecting. There is no overcurrent or earth leakage trip in it, so the circuit still needs its own protective device upstream. Its 6000A short circuit rating only holds with an 80A gG fuse ahead of it.
It is rated 40A in both AC21 and AC22, so it will open resistive loads and mixed motor or element loads while they are running. Typical work is a submain, a hot water circuit or a pump feed that needs its own isolation point.
Switchboard work is licensed electrician territory. The switch clips onto standard DIN rail and takes one module of width. Screws pull up to 2.80 Nm and take rigid conductor from 2.5 to 25 mm2, or flexible from 2.5 to 16 mm2.
The SBR140 is rated for 60,000 mechanical throws and 5,000 switching cycles at full load. It also runs cool at full current, losing only 1.10 W.
The SBR140 is IP20, so it belongs inside a board or enclosure and carries no water rating. Exposed and outdoor spots are out. It runs between -20 and 70 degrees C, and stores between -40 and 80 degrees C.
The Hager SBR140 is available online from Sparky Direct, with Australia-wide delivery to any state or territory including regional areas. Sparky Direct is an Australian electrical wholesaler established in 2005, supplying more than 500,000 customers with transparent trade pricing.
100-Day Fuss-Free Returns
We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.
If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.
All products come with a manufacturer’s or supplier’s warranty
Damaged or Faulty Goods
If your order arrives damaged or is faulty, let us know within 24 hours.
Contact us via our chat to arrange the return.
Exclusions
We can’t accept returns for:
How to Request a Return
Warranty starts from Invoice Date
Domestic Use: 2 Year
Commercial Use: 2 Year
Warranty Method: Return to Sparky Direct
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | Hager Electrical |
| SKU | SBR140 |
| Model # | SBR140 |
| Barcode # | 3250615510358 |
| Package Weight | 0.090kg |
| TYPE | VALUE |
|---|---|
| Type | Circuit Protection |
| Brand | Hager |
| Rated Current (A) | 40 |
| Voltage (V) | 230 |
| Number of Poles | 1 |
| IP Rating | IP20 |
