        Description

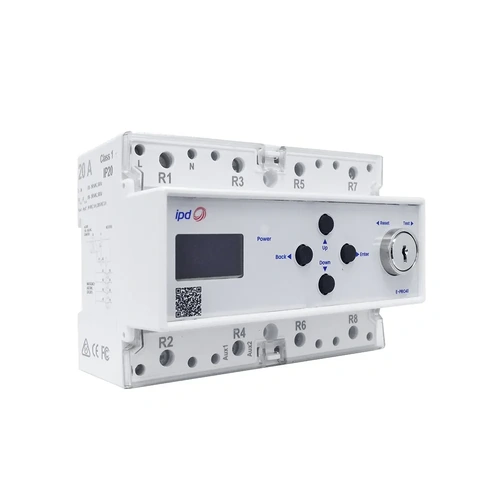

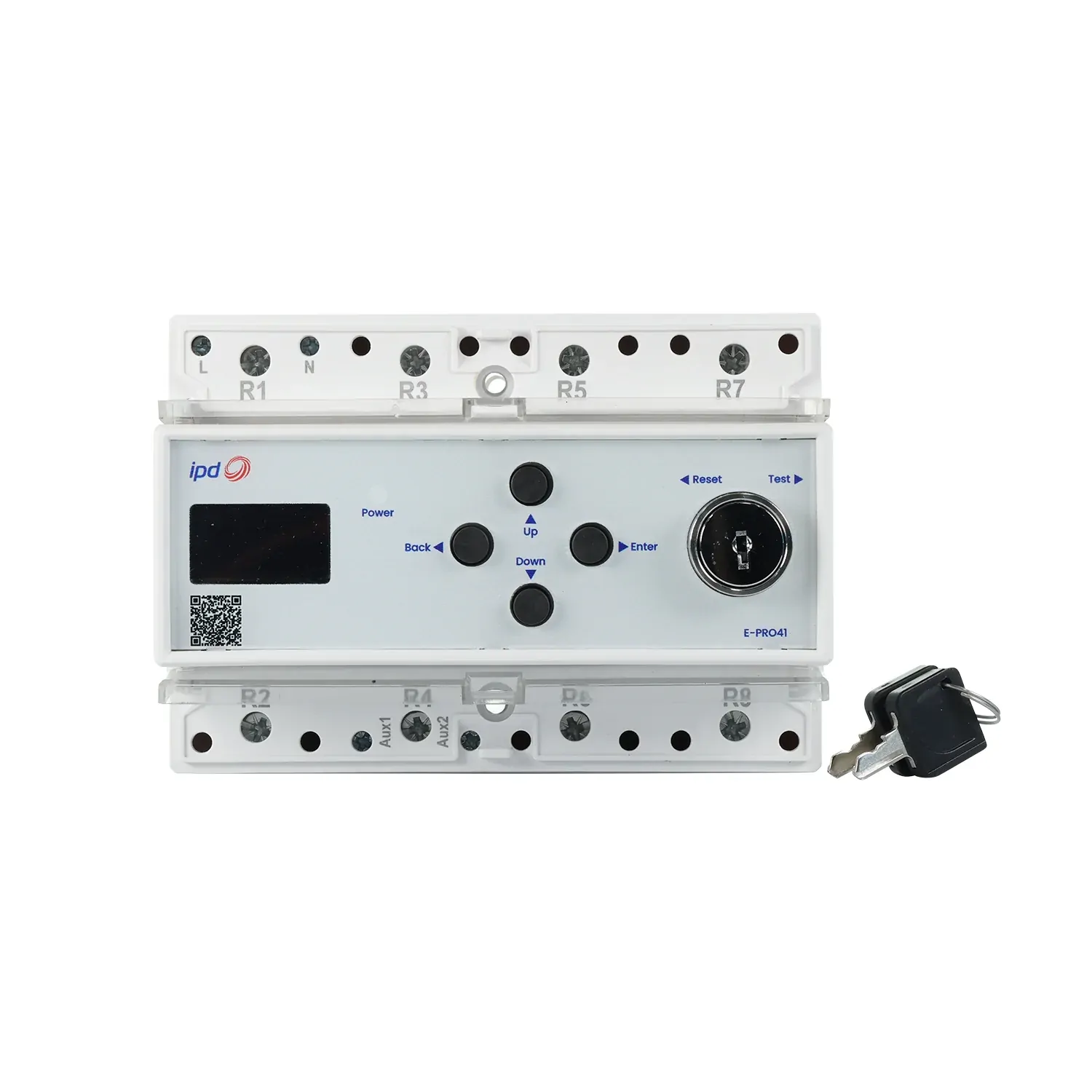

        IPD E-PRO41 | Emergency Lighting Test Switch 20A 240VAC Key-Operated

        The IPD E-PRO41 is a key-operated 20A emergency lighting test switch built for reliable testing of up to four single-phase emergency lighting circuits. With a programmable timer, OLED status display, and key or PIN lockout, it's designed for efficient compliance testing in commercial and industrial settings.

        Install is simple with its DIN1 35mm rail mount, and you can set precise test durations using either discrete (1–99999 sec) or preset timers (60 / 90 / 120 minutes). Output contacts support remote switching of external contactors, while built-in operation counters track usage for maintenance or compliance logging.

        E-PRO41 Features

        • 20A, 240V AC Rated: Supports four single-phase emergency lighting circuits
        • Flexible Timer Options: Select between 1–99999 seconds or preset 60 / 90 / 120 minute durations
        • 0.96" OLED Display: Shows countdown and switch status in real time
        • DIN Rail Mount (35mm): Fits standard DIN1 enclosures for easy install
        • Key or PIN Lockable: Secure control with physical key or optional PIN entry

        E-PRO41 FAQ

        Q: How does this unit mount?
        A: It clips to a 35mm DIN rail (DIN1 frame size).

        Q: Can I customise the test time?
        A: Yes, choose discrete seconds or select from 60, 90, or 120-minute presets.

        Q: Is access restricted?
        A: Yes, it's lockable via the supplied key or via PIN code for extra security.

        (E-PRO41)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand IPD
        SKU E-PRO41
        Model # E-PRO41
        Barcode # 9322017253820
        Package Weight 0.847kg
        Package Width 0.145m
        Package Height 0.100m
        Package Length 0.170m
        TYPE VALUE
        Type Emergency Lighting
        Brand IPD
        Rated Current (A) 20A
        Switch function Emergency Test
        Contact Configuration 4 N/C
        Voltage (V) 240
        Rated Voltage (V) 100-240 VAC
        Rated Power (W) 10W
        Number of Circuits 4
