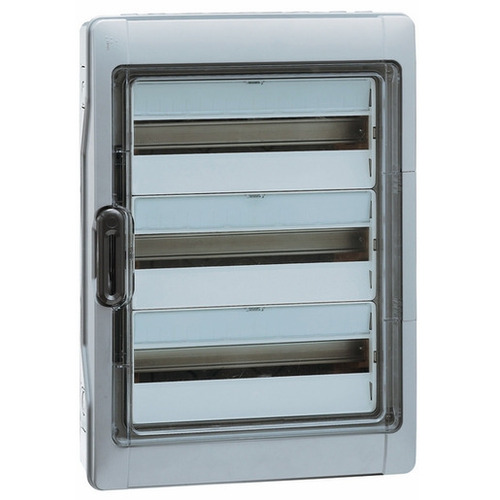

        Legrand 601983 | 36 Module 3 Rows Surface Mount Weatherproof Switch Board IP65 IK09
        $326.37 $296.70 ex. GST
        Description

        Legrand 601983 | 36 Module 3 Rows Surface Mount Weatherproof Switch Board IP65 IK09

        Description:

        Experience the pinnacle of electrical control with the Legrand 601983, a 36 Module 3 Rows Surface Mount Weatherproof Switch Board designed for uncompromised performance. Explore the benefits and find answers to frequently asked questions below.

        Benefits:

        • Unmatched Capacity: With 36 modules across 3 rows, this switchboard provides expansive capacity, accommodating diverse electrical components to meet the demands of modern homes.

        • Rugged Durability: Crafted with a Class II insulated enclosure and IK09 shock-resistant polystyrene material, this switchboard ensures long-lasting durability, even in challenging environments.

        • Flexible Configuration: The fully reversible door and enclosure, along with removable chassis and faceplates, offer flexibility in configuring the switchboard to suit your specific needs.

        • Modular Versatility: Featuring a 2-position rail for modular products and moulded cases, this switchboard provides versatility to adapt to evolving electrical requirements.

        • Efficient Cable Management: The 150mm spacing between rails facilitates organized cable management, ensuring a clean and efficient electrical setup.

        • Enhanced Security Features: A lockable door handle, sealable cover, and faceplate enhance security, safeguarding your electrical components from unauthorized access.

        • IP2X Earth and Neutral Terminal Blocks: Supplied with IP2X Earth and Neutral terminal blocks, the switchboard guarantees a secure and reliable electrical connection.

        • Weatherproof Design: Part of the Weatherproof PLEXO3 IP65 cabinets, this switchboard is suitable for both indoor and outdoor installations, offering resilience against various weather conditions.

        • Reversible Door and Cabinet: The fully reversible door and cabinet allow for flexible installation options, adapting to spatial constraints.

        • Tamper-Evident Cover: The tamper-evident cover adds an extra layer of security, providing a visual indication in case of any tampering attempts.

        FAQ:

        Q: Can I install the Legrand 601983 outdoors?
        A: Yes, the switchboard is part of the Weatherproof PLEXO3 IP65 cabinets, making it suitable for both indoor and outdoor installations.

        Q: How do I reverse the door and cabinet if needed?
        A: The door and cabinet are designed to be totally reversible. Refer to the product manual for detailed instructions on the reversal process.

        Q: Can I use non-modular products with this switchboard?
        A: Yes, the switchboard accommodates perforated plates and plain faceplates, allowing for the mounting of non-modular products as needed.

        Q: Are direct perforation entry glands included?
        A: Yes, the switchboard comes with direct perforation entry glands, ensuring convenient and secure cable entry.

        Upgrade to Legrand 601983, a 36-module weatherproof switchboard that sets the standard for capacity, durability, and security. Invest in a solution that meets the evolving needs of your electrical setup, ensuring reliability and efficiency.

        (601983)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Features
        Specifications Details
        Number of Rows 3
        Number of Modules 36
        Max. Permitted Current 90A
        Short Circuit Current 10kA
        Permissible Loads 40N per Row
        Rated Operating Voltage 400V AC ~ 50/60Hz
        Rated Insulation Voltage 400V AC ~ 50/60Hz
        Operating Temperature -25°C to +40°C
        Self Extinguishing 650°C
        Protection Rating IP65/IK09
        Standards IEC 60 439-3, IEC 60 695-2-11, IEC 62 262, IEC 62 208, RoHS, WEEE, REACH
        Material ABS
        Material housing Polycarbonate
        Colour Grey
        Mounting method Screw and snap-on mounting
        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Legrand
        SKU 601983
        Barcode # 3245066019833
        Shipping Weight 4.9000kg
        Shipping Width 0.350m
        Shipping Height 0.180m
        Shipping Length 0.640m
        Shipping Cubic 0.040320000m3
        TYPE VALUE
        Type Switchboard
        Brand Legrand
        Colour Grey
