Learn more by watching our Major Tech MT965 | Digital Vibration Meter video.

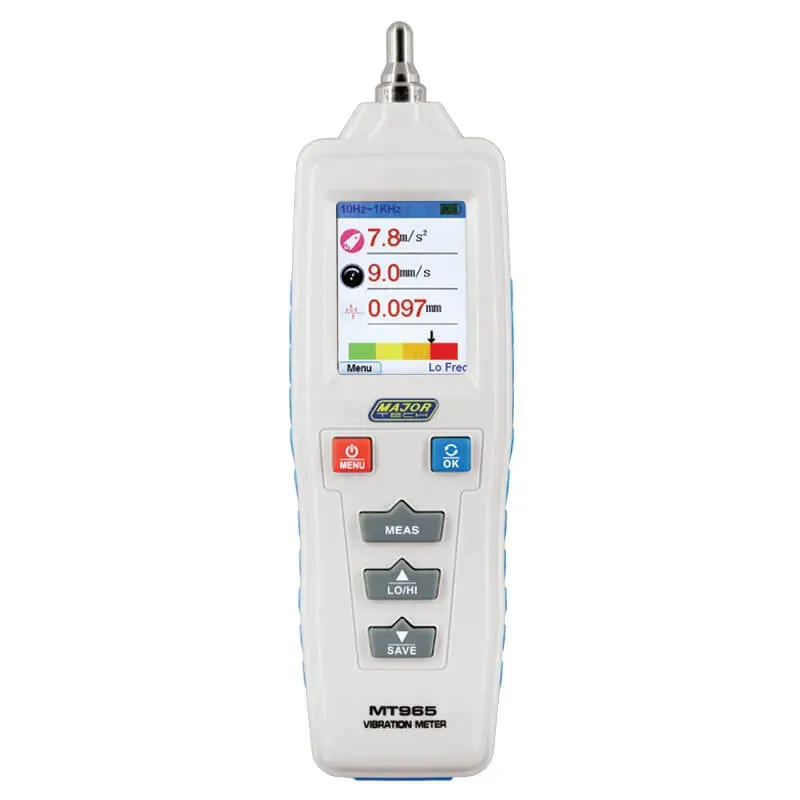

The Major Tech MT965 is a handheld digital vibration meter that measures acceleration, velocity, and displacement on rotating and reciprocating machinery. A shear-type piezoelectric ceramic accelerometer senses vibration across 10Hz to 1kHz, with a selectable 1kHz to 4kHz high-frequency band for acceleration. The MT965 reads acceleration from 0.1 to 199.9m/s², velocity from 0.1 to 199.9mm/s, and displacement from 0.001 to 1.999mm, each rated ±10%. A colour LCD rotates through 360 degrees, presents all three readings simultaneously, and stores 500 data points across five groups for later review.
Bearing wear, shaft misalignment, and structural looseness all announce themselves as rising vibration long before a machine actually fails. Judging that rise by hand or by ear puts the call on experience alone, and marginal machines slip through until they stop mid-shift. The MT965 puts a number and a colour-coded severity bar against each measurement, graded to the machine power level you set, from small motors below 15kW to large sets above 75kW. Switching between high and low frequency bands separates high-frequency energy from general running vibration on the same machine.
For a tech doing motor changeovers and pump alignments, a before-and-after reading turns an invoice line into proof the job worked. The rotating display and second measure button on the base keep readings usable when the meter points down into a coupling guard or under a fan housing. Interchangeable short and long probes reach recessed measurement points, and both come off for flat-surface contact on a machine foot. Stored groups hold 100 readings each, so a full plant round survives in the meter until it is written up.
The MT965 operates within 0°C to 40°C at 30-90% relative humidity and must not be immersed in water or exposed to strong impacts. Keep the meter away from dangerous voltage, flammable atmospheres, and anything that could catch on rotating equipment during a reading. No ingress protection rating is published, so treat the meter as a dry-conditions instrument only.
(MT965)
Acceleration from 0.1 to 199.9m/s², velocity from 0.1 to 199.9mm/s, and displacement from 0.001 to 1.999mm, each with ±10% accuracy. A shear-type piezoelectric ceramic accelerometer does the sensing, and the colour display shows all three readings simultaneously with a live graph curve.
Acceleration measurement switches between a low band of 10Hz to 1kHz and a high band of 1kHz to 4kHz, selected with the frequency button. Velocity and displacement always measure on the low band. If an acceleration value will not read, the manual suggests switching bands.
A status bar across the bottom of the full display grades vibration velocity as green, yellow, orange, or red. The grading follows the machine power level set in the menu: small below 15kW, medium 15-75kW, or large above 75kW on a hard or soft base.
The short probe suits most general vibration measurements and gives improved response values. The long probe, included in the package, reaches narrow or recessed points with faster response. Removing the probe entirely lets the MT965 sit flat against a surface for the most stable readings.
Up to 500 data points in five groups of 100, with a 20-point live cache during measurement. Stored groups replay as acceleration, velocity, and displacement charts on the meter, and groups can be deleted singly or all at once from the File menu.
Two 1.5V AAA batteries in a battery compartment. An automatic shutdown timer is adjustable from 0 to 9 minutes to save power, the meter shuts itself down on low battery, and the manual recommends removing the batteries during long storage periods.
The MT965 carries a 2 year warranty for both domestic and commercial use, starting from the invoice date. Lodge a claim by returning the unit to Sparky Direct with proof of purchase and a fault description; it is then forwarded to Major Tech's authorised service centre for assessment. Allow 7 to 14 working days.
The Major Tech MT965 is available online from Sparky Direct, with Australia-wide delivery to any state or territory including regional areas. Sparky Direct is an Australian electrical wholesaler established in 2005, supplying more than 500,000 customers with transparent trade pricing.
100-Day Fuss-Free Returns
We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.
If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.
All products come with a manufacturer’s or supplier’s warranty
Damaged or Faulty Goods
If your order arrives damaged or is faulty, let us know within 24 hours.
Contact us via our chat to arrange the return.
Exclusions
We can’t accept returns for:
How to Request a Return
Warranty starts from Invoice Date
Domestic Use: 2 Year
Commercial Use: 2 Year
Warranty Method: Return to Sparky Direct
All Major Tech Meters sold through Sparky Direct are covered by the manufacturer’s warranty. If you believe your meter is faulty or defective, you may request an assessment under this warranty policy.
To initiate a warranty claim:
Return to Sparky Direct
Ship the meter back to Sparky Direct along with:
Please ensure the unit is securely packaged to prevent damage in transit.
Forwarded for Assessment
Upon receiving your meter, we will forward it to Major Tech’s authorised service centre for inspection, testing, and calibration.
Major Tech’s service lab will assess the returned unit to determine:
As Major Tech’s service labs are independent providers, Sparky Direct cannot govern or guarantee turnaround times or any costs incurred for repairs outside of warranty coverage.
| Specification | Details |
|---|---|
| Measurement Type | Acceleration, Velocity, Displacement |
| Sensor Type | Piezoelectric ceramic accelerometer (Shear type) |
| Acceleration Range | 0.1 – 199.9m/s² ±10% |
| Velocity Range | 0.1 – 199.9mm/s ±10% |
| Displacement Range | 0.001 – 1.999mm ±10% |
| Acceleration Frequency Range | High Frequency: 1kHz – 4kHz Low Frequency: 10Hz – 1kHz |
| Velocity Frequency Range | Low Frequency: 10Hz – 1kHz |
| Displacement Frequency Range | Low Frequency: 10Hz – 1kHz |
| Data Storage | 500 pieces (5 groups – 100 pieces per group) |
| Power Source | 2 x 1.5V AAA Battery |
| Display | Colour LCD with brightness control |
| Screen Rotation | 360° Rotatable |
| Dimensions | 180 x 54 x 30mm |
| Weight | 150g |
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | Major Tech |
| SKU | MT965 |
| Model # | MT965 |
| Barcode # | 6008229015571 |
| Package Weight | 0.500kg |
| TYPE | VALUE |
|---|---|
| Type | Vibration Meter |
| Brand | Major Tech |
| Dimensions | 180 x 54 x 30mm |
| Battery | 2 x AAA 1.5V |
| Weight | 150g |
| High Frequency | 1-4kHz |
| Low Frequency | 10Hz - 1kHz |
