Learn more by watching our Major Tech VBW18SA | 18 Pole Surface Mount Distribution Board IK08 | IP66 video.

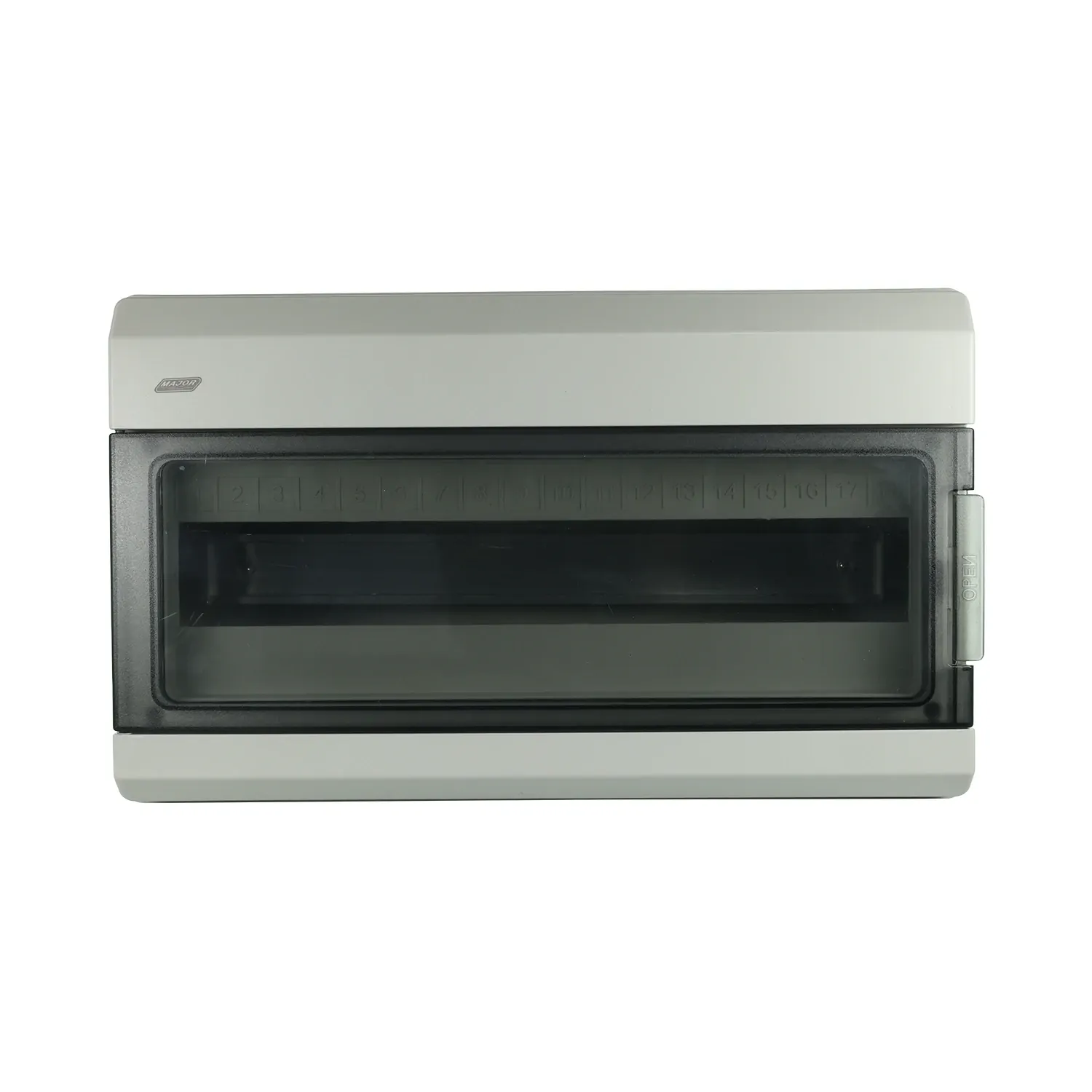

The Major Tech VBW18SA is an 18-pole surface-mount distribution board built for secure and reliable electrical installations in demanding outdoor and industrial environments. With an IP66 waterproof and dustproof rating and IK08 impact resistance, it provides full protection in harsh conditions.
Made from high-quality polycarbonate plastic, the enclosure is fire-resistant to 850°C for 30 seconds and offers long-lasting performance. The clip-on transparent cover allows easy, push-to-open access while keeping internal components protected. Supporting up to 18 x 18mm DIN modules on a single rail, the board is rated to ≤125A and handles voltages up to 1000VAC or 1500VDC.
Fully compliant with AS/NZS 61439 and AS/NZS 61000 standards, the VBW18SA is a dependable solution for professional installations where safety, strength, and compliance are critical.
Major Tech VBW18SA Features
Where to use this Major Tech VBW18SA
(VBW18SA)
It accommodates up to 18 individual 18mm modules on a single DIN rail, making it suitable for medium-scale installations.
The board is IP66-rated for waterproof and dustproof protection and IK08-rated for impact resistance, ensuring durability in harsh conditions.
Yes, the VBW18SA is fire-resistant up to 850°C for 30 seconds, offering additional safety in demanding environments.
The board measures 230 x 380 x 115mm and features four 20mm and four 32mm knockouts on both the top and bottom for versatile cable entry.
Yes, copper Earth and Neutral Bars are supplied for easy, compliant wiring.
Yes, it’s fully sealed to IP66, keeping out dust and strong water jets for reliable outdoor performance.
100-Day Fuss-Free Returns
We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.
If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.
All products come with a manufacturer’s or supplier’s warranty
Damaged or Faulty Goods
If your order arrives damaged or is faulty, let us know within 24 hours.
Contact us via our chat to arrange the return.
Exclusions
We can’t accept returns for:
How to Request a Return
Warranty starts from Invoice Date
Domestic Use: 5 Year
Commercial Use: 5 Year
Warranty Method: Return to Sparky Direct
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | Major Tech |
| SKU | VBW18SA |
| Model # | VBW18SA |
| Barcode # | 6008229042874 |
| Package Weight | 1.610kg |
| Package Width | 0.390m |
| Package Height | 0.235m |
| Package Length | 0.120m |
| TYPE | VALUE |
|---|---|
| Type | Enclosures |
| Brand | Major Tech |
| Colour | White |
| Height (mm) | 230 |
| Width (mm) | 380 |
| Length (mm) | 115 |
| Mounting | Surface Mount |
| Material | Polycarbonate Plastic |
| IP Rating | IP66 |
| Number of Rows | 1 |
| Number of Modules | 18 |
| IK Rating | IK08 |
| Fire Resistance | 850°C |
