        Legrand 601974 | 4 Module Surface Mount Weatherproof Switch Board IP65 IK09
        $54.95 $49.95 ex. GST

        Learn more by watching our Legrand 601974 | 4 Module Surface Mount Weatherproof Switch Board IP65 IK09 video.

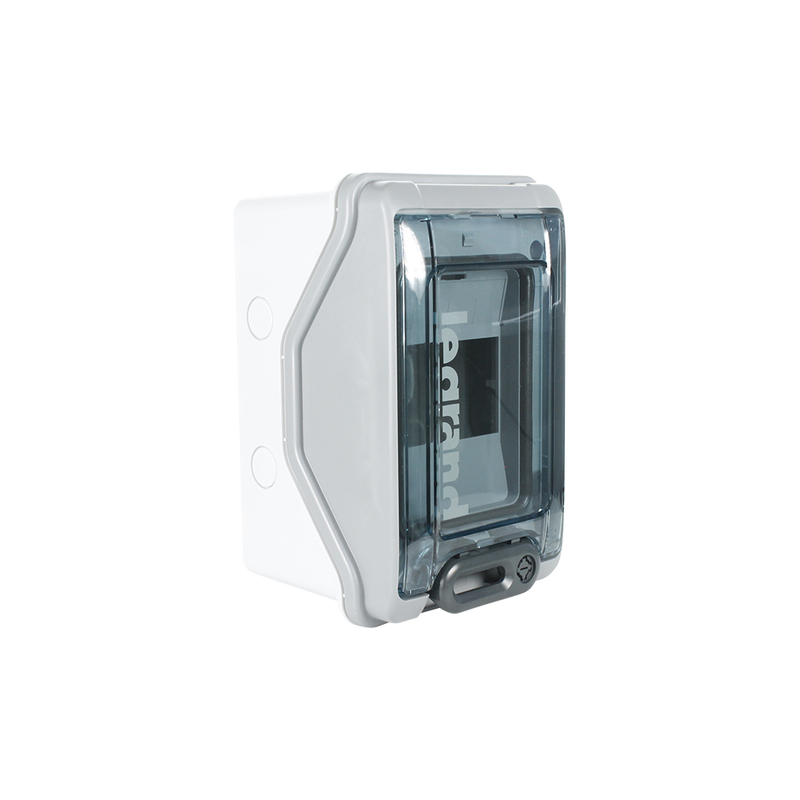

        Legrand 601974 | 4 Module Surface Mount Weatherproof Switch Board IP65 IK09


        Discover the Legrand 601974, a cutting-edge 4 Module Surface Mount Weatherproof Switch Board designed to redefine your electrical control needs. Engineered for performance, durability, and adaptability, this switchboard is the perfect addition to your home. Dive into the benefits and explore the answers to frequently asked questions below.


        • Weatherproof Excellence: With an impressive IP65 rating and IK09 rating, this switchboard stands strong against the elements, ensuring reliability in diverse weather conditions.

        • Adaptable Configuration: The Class II insulated enclosure, reversible door and enclosure, and removable chassis provide flexibility and ease of customization for your specific requirements.

        • Modular Versatility: The 2-position rail accommodates modular products and moulded cases, allowing you to tailor your electrical setup with precision.

        • Secure Access: The lockable door handle guarantees secure access, while the sealable cover and faceplate add an extra layer of protection, safeguarding your electrical components.

        • Shock-Resistant Design: Crafted from shock-resistant polystyrene material, this switchboard ensures durability and longevity, even in demanding environments.

        • Efficient Cable Management: The well-spaced rails with a 150mm gap facilitate efficient cable management, making installations and adjustments hassle-free.

        • Supplied with Essential Components: The switchboard comes equipped with IP2X Earth and Neutral terminal blocks, streamlining your installation process.


        Q: Is the Legrand 601974 suitable for outdoor installations?
        A: Yes, the switchboard boasts an IP65 weatherproof rating, making it ideal for outdoor use, and ensuring durability against varying weather conditions.

        Q: Can I customize the configuration of the switchboard?
        A: Absolutely; the Class II insulated enclosure, reversible door, and removable chassis allow for easy customization to meet your specific needs.

        Q: What is the shock-resistant material used in the construction?
        A: The switchboard is crafted from shock-resistant polystyrene material, ensuring durability and longevity in challenging conditions.

        Q: Does it come with terminal blocks?
        A: Yes, the switchboard is supplied with IP2X Earth and Neutral terminal blocks for your convenience.

        Elevate your electrical control experience with Legrand 601974. Invest in weatherproof excellence, adaptability, and security for your home's electrical setup. Embrace innovation and reliability in one powerful switchboard.



        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Specifications Details
        Number of Rows 1
        Number of Modules 4
        Max. Permitted Current 32A
        Short Circuit Current 10kA
        Permissible Loads 40N per Row
        Rated Operating Voltage 400V AC ~ 50/60Hz
        Rated Insulation Voltage 400V AC ~ 50/60Hz
        Operating Temperature -25°C to +40°C
        Self Extinguishing 650°C
        Protection Rating IP65/IK09
        Standards IEC 60 439-3, IEC 60 695-2-11, IEC 62 262, IEC 62 208, RoHS, WEEE, REACH
        Material ABS
        Material housing Polycarbonate
        Colour Grey
        Mounting method Screw and snap-on mounting

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Legrand
        SKU 601974
        Barcode # 3245066019741
        Shipping Weight 0.5300kg
        Shipping Width 0.130m
        Shipping Height 0.120m
        Shipping Length 0.200m
        Shipping Cubic 0.003120000m3
        TYPE VALUE
        Type Switchboard
        Brand Legrand
        Colour Grey
