        MATCHMASTER 02MM-MDU36 | Phased Array TV Antenna UHF RG-6
        $60.50 $55.00 ex. GST
        Video

        Learn more by watching our MATCHMASTER 02MM-MDU36 | Phased Array TV Antenna UHF RG-6 video.

        Description

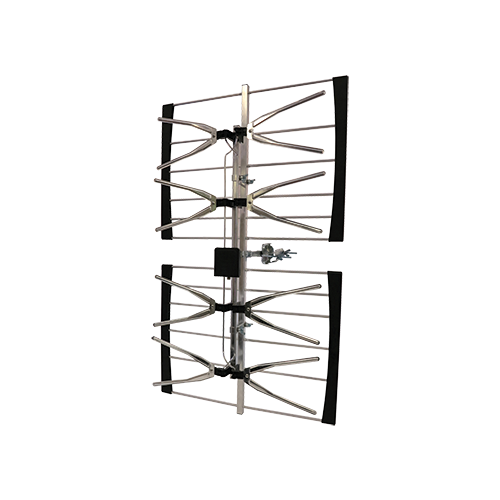

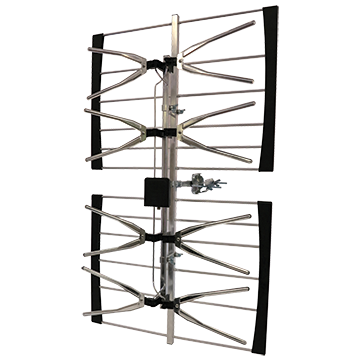

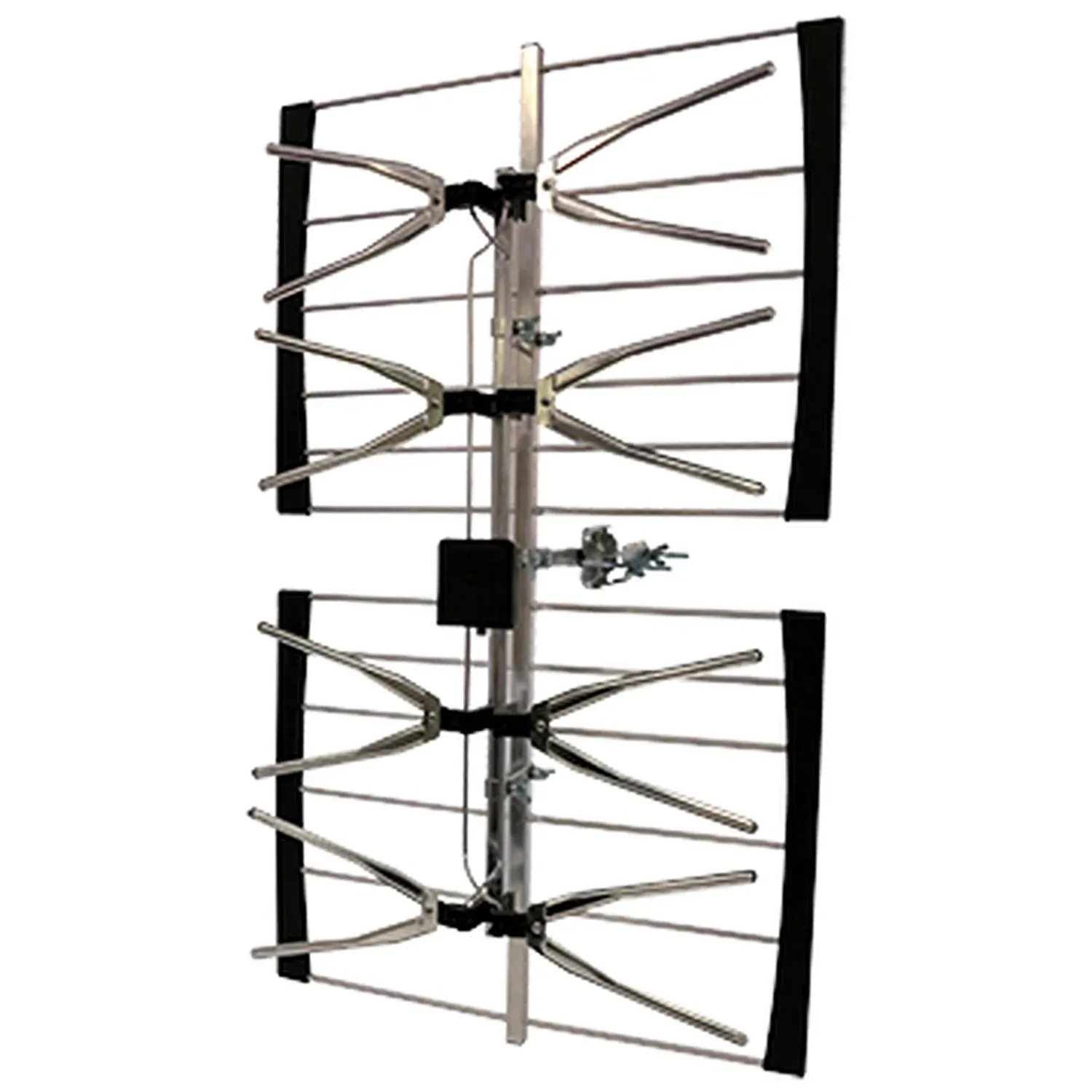

        MATCHMASTER 02MM-MDU36 | Phased Array TV Antenna UHF RG-6

        * NOTE: This item is only available for pickup

        Description:

        The MATCHMASTER 02MM-MDU36 is a robust, full-sized high gain phased array UHF antenna, expertly designed for optimum reception of UHF channels 28-51. It stands out as a top choice for electricians and consumers alike, especially in harsh Australian coastal regions where durability and performance are paramount.

        Boasting a new Dacromet finish on all clamping components, the MDU36 excels in corrosion resistance, ensuring longevity even in challenging environments. Its construction includes thicker aluminium tube walls and a heavy-duty aluminium alloy T-bracket, enhancing its structural integrity and durability.

        A key feature of this antenna is its built-in 694MHz low pass 4G/5G LTE filter, which provides over 30dB of attenuation at 750MHz. This advanced filtering capability is crucial in eliminating mobile cellular signal interference, ensuring a clearer and more reliable viewing experience.

        With a maximum gain of 12dB, the MDU36 is specifically designed for both horizontal and vertical UHF broadcasts, making it an ideal choice for a wide range of reception zones, particularly in coastal areas where signal disruption is a common issue.

        Features:

        • High Gain Phased Array: Ensures optimal UHF reception.
        • Durable Design: New Dacromet finish and thicker aluminium for corrosion resistance.
        • 4G/5G LTE Filter: Over 30dB attenuation at 750MHz to reduce signal interference.
        • Versatile Reception: Covers UHF channels 28-51.
        • Suitable for Coastal Regions: Designed to withstand harsh environments.

        FAQ

        Q: Is this antenna suitable for coastal areas?
        A: Yes, its corrosion-resistant design makes it ideal for harsh coastal environments.

        Q: Does it filter out 4G/5G signals?
        A: Absolutely, it features a low pass LTE filter to minimize cellular signal interference.

        Q: What is the gain of this antenna?
        A: It offers a maximum gain of 12dB, providing excellent UHF reception.

        (02MM-MDU36)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Features
        Specification Details
        Elements 36
        Band UHF
        Channels (28-51)
        Frequency Range 520-694MHz
        Maximum Gain 12dB
        Front/Back Ratio 20dB
        Half Power Beam Width Horizontal 48°
        Half Power Beam Width Vertical 29°
        Cable Connection 'F' Type
        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Matchmaster
        SKU 02MM-MDU36
        Barcode # 9322190012429
        Shipping Weight 2.0000kg
        Shipping Width 0.090m
        Shipping Height 0.505m
        Shipping Length 0.485m
        Shipping Cubic 0.022043250m3
        TYPE VALUE
        Type TV Antenna
        Brand Matchmaster
