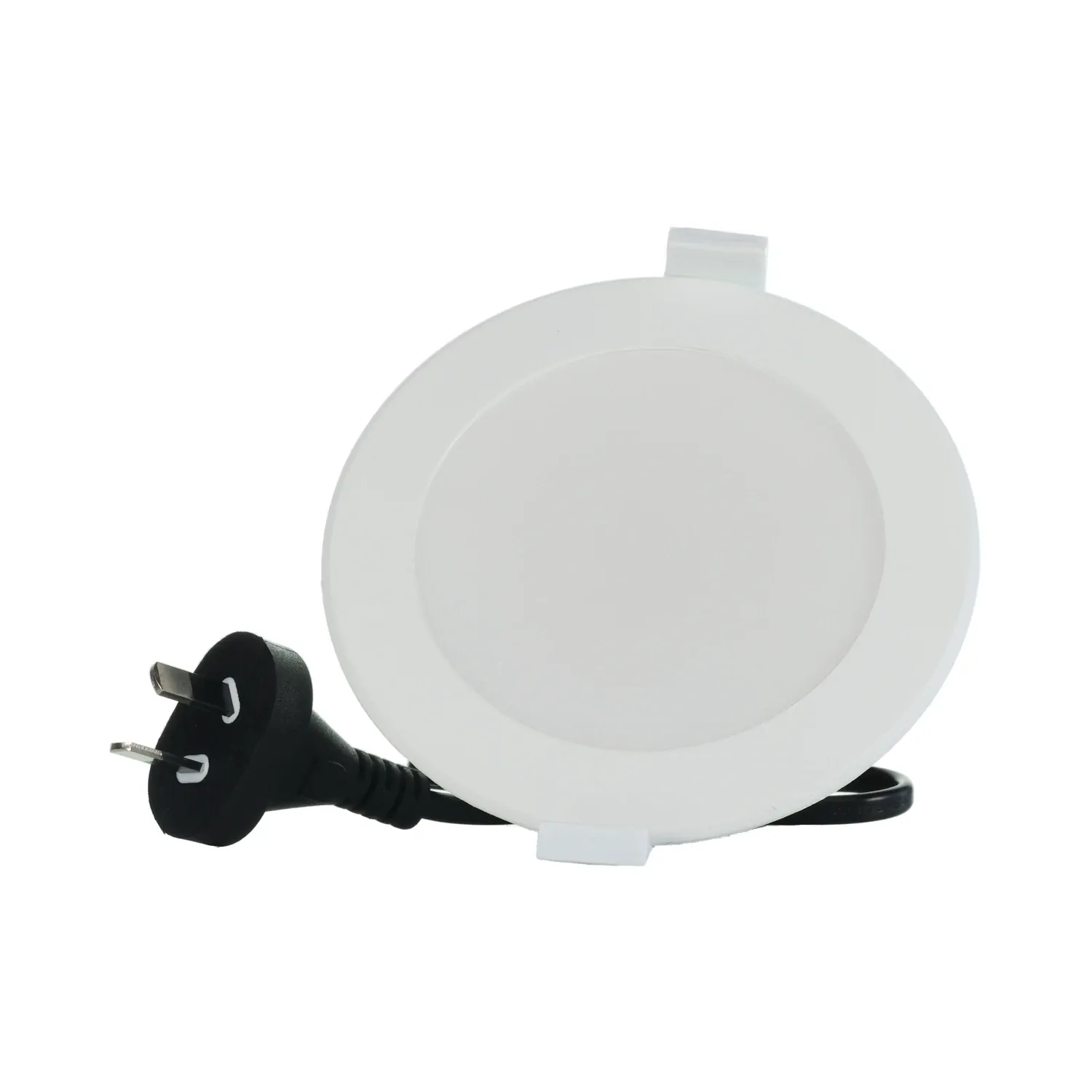

The NLS 20074 is a 13W recessed LED downlight rated 240V AC, with a selectable tri-CCT output of 3000K, 4000K or 6000K and a light output of 1300 lumens. The 20074 fits a 90mm ceiling cut-out, measures 115mm across by 60mm deep, and throws a 120 degree beam. It carries an IP44 rating on the front face only and runs on a dimmable driver.
Downlight selection usually stalls on colour temperature: warm white in the bedrooms, cool white through the kitchen, daylight in the laundry, and three part numbers on the van to cover it. The 20074 carries a selectable 3000K, 4000K and 6000K output set before the fitting goes up, so one part number covers the whole house. A 90mm cut-out also drops straight into the hole left by most existing downlights, which keeps a lamp swap to a fit-off rather than a ceiling repair.
Stocking one 13W tri-CCT fitting instead of three fixed-temperature versions cuts the van inventory down and takes the guesswork out of a quote. The 1300 lumen output lets a sparky drop the fitting count on an open-plan ceiling and still hit the light level the customer expects. The dimmable driver gives the client a lounge and bedroom circuit that comes back down at night without a second fitting type. A 120 degree beam spreads wide enough to keep spacing simple on a standard grid.
The NLS 20074 is not rated for exposed outdoor locations or any position where water can reach the body or driver from above. The IP44 rating applies to the front face only, so the fitting is not suitable for open eaves, unlined verandah ceilings, or damp roof spaces. It is a recessed fitting and cannot be surface mounted on a solid ceiling without a suitable recess.
(20074)
The NLS 20074 fits a 90mm cut-out. The fitting measures 115mm across, so the trim covers the hole with a margin either side. Body depth is 60mm, which suits shallow ceiling voids where a deeper fitting will not clear the framing.
Where a ceiling socket is already in place, the 20074 can be swapped over without a licensed electrician. Installing a new socket, running new cable, or altering the existing ceiling wiring in any way is licensed electrical work and must be carried out by a licensed electrician.
A three-position toggle switch on the fitting sets the colour, with 3000K warm white, 4000K neutral white and 6000K daylight available. Set it before the downlight goes up. Changing it afterwards means dropping the fitting back out of the ceiling, as there is no wall switch control.
The downlight runs on a dimmable driver. It needs a dimmer rated for LED loads, such as a trailing edge type, matched to the total connected wattage on the circuit. A dimmer intended for incandescent or halogen loads may flicker or limit the dimming range.
The 20074 puts out 1300 lumens at 13 watts. That sits above a typical 10W LED downlight and comfortably above a 50W halogen, so fewer fittings are needed to reach the same light level across a room.
The visible front face is rated against splash and moisture from below, which suits a protected bathroom or laundry ceiling. The body and driver above the ceiling carry no ingress rating, so the roof space must stay dry and the fitting is not for exposed outdoor positions.
The NLS 20074 is available online from Sparky Direct, with Australia-wide delivery to any state or territory including regional areas. Sparky Direct is an Australian electrical wholesaler established in 2005, supplying more than 500,000 customers with transparent trade pricing.
100-Day Fuss-Free Returns
We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.
If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.
All products come with a manufacturer’s or supplier’s warranty
Damaged or Faulty Goods
If your order arrives damaged or is faulty, let us know within 24 hours.
Contact us via our chat to arrange the return.
Exclusions
We can’t accept returns for:
How to Request a Return
Warranty starts from Invoice Date
Domestic Use: 2 Year
Commercial Use: 2 Year
Warranty Method: Return to Sparky Direct
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | NATIONAL LIGHT SOURCES |
| SKU | 20074 |
| Model # | 20074 |
| Barcode # | 9336700018306 |
| Package Weight | 0.203kg |
| TYPE | VALUE |
|---|---|
| Type | LED Downlight |
| Brand | National Light Sources |
| Lumens (lm) | 1300 |
| Light Colour (K) | 3000/4000/6000 |
| Wattage (W) | 13 |
| Cutout Size (mm) | 90 |
