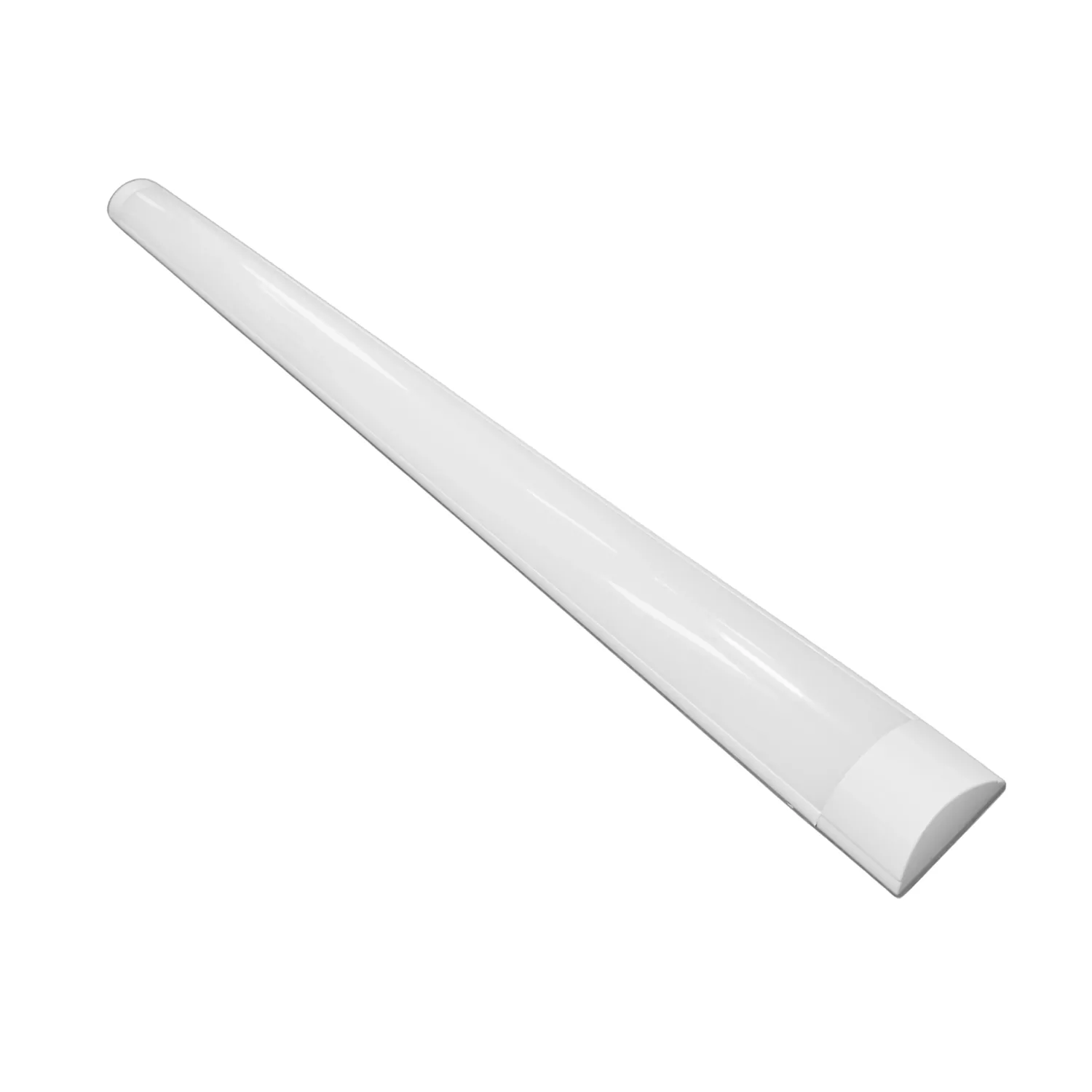

The NLS 20100 is a 1200mm LED batten light rated 36W at 240V AC, with a selectable tri-CCT output of 3000K, 4000K or 6000K. The 20100 delivers 3600 lumens across a 120 degree beam angle and measures 1200 x 75 x 30mm. It is rated IP20 for dry interior positions and is not dimmable.
A workshop, stockroom or long hallway needs light along the length of the space, not a single point in the middle of it. The 1200mm body of the 20100 spreads the output along the run rather than concentrating it overhead. At 30mm deep the fitting stays close to the ceiling line where head height is tight. Tri-CCT selection covers 3000K, 4000K and 6000K from the one fitting, so warm, neutral and cool positions take the same part.
The NLS 20100 carries an IP20 rating, which means it is not protected against water or moisture. Keep the 20100 out of bathrooms, laundries and washdown areas, and away from any outdoor or exposed position. The fitting runs at fixed output, so it should not be wired to a dimmer circuit.
(20100)
The NLS 20100 delivers 3600 lumens from a 36W LED batten body. Light spreads over a 120 degree beam angle, which gives broad coverage across a room rather than a narrow pool directly beneath the fitting.
The NLS 20100 measures 1200 x 75 x 30mm. The body runs 1200mm end to end, sits 75mm across and stands 30mm deep, which keeps the fitting close to the ceiling line.
Mounting is surface mount. The 20100 fixes directly onto a ceiling or wall face rather than sitting in a recess, with the body standing 30mm off the mounting surface.
Installation must be carried out by a qualified licensed electrician, to the manufacturer's specifications. The batten complies with all AS/NZS standards and approvals and carries RCM and RoHS marking.
Colour temperature is set with a three position switch on the fitting: 3000K warm white, 4000K neutral white or 6000K cool white. One fitting covers all three, so the same part suits positions needing different colour temperatures.
The NLS 20100 is covered by a three-year warranty from National Light Sources. The LED itself is rated for 30,000 hours of operation, with colour rendering above 80Ra.
The 20100 is not dimmable. The batten runs at fixed output and should not be wired to a dimmer circuit. Where output needs to vary across a lighting circuit, this fitting is not the right choice.
The IP20 rating covers dry interior positions only, with no protection against water. Bathrooms, laundries, washdown areas and any outdoor or exposed position fall outside that rating. Indoor dry areas such as garages, hallways, storerooms and offices are suitable.
The NLS 20100 is available online from Sparky Direct, with Australia-wide delivery to any state or territory including regional areas. Sparky Direct is an Australian electrical wholesaler established in 2005, supplying more than 500,000 customers with transparent trade pricing.
100-Day Fuss-Free Returns
We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.
If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.
All products come with a manufacturer’s or supplier’s warranty
Damaged or Faulty Goods
If your order arrives damaged or is faulty, let us know within 24 hours.
Contact us via our chat to arrange the return.
Exclusions
We can’t accept returns for:
How to Request a Return
Warranty starts from Invoice Date
Domestic Use: 1 Year replacement
Commercial Use: 1 Year replacement
Warranty Method: Return to Sparky Direct
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | NATIONAL LIGHT SOURCES |
| SKU | 20100 |
| Model # | 20100NLS |
| Barcode # | 9336700018276 |
| Package Weight | 0.691kg |
| TYPE | VALUE |
|---|---|
| Type | LED Batten |
| Brand | National Light Sources |
| Height (mm) | 30 |
| Width (mm) | 75 |
| Length (mm) | 1200 |
| Lumens (lm) | 3600 |
| Light Colour (K) | 3000/4000/6000 |
| Voltage (V) | 240 |
| Wattage (W) | 36 |
| Dimmable | No |
| IP Rating | IP20 |
