Learn more by watching our ILD XS1020WLED | Diffused Dual Wattage 10W or 20W 590MM LED Batten | Tri-Colour Surface Mounted White video.

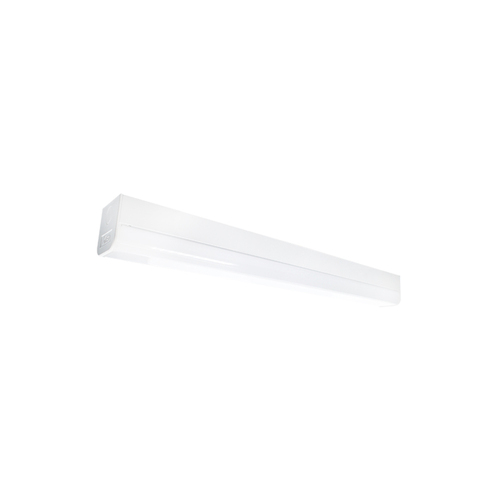

The ILD XS1020WLED is a surface-mounted LED batten luminaire rated 240V, with dual selectable wattage of 10W or 20W and tri-colour output of 3000K, 4000K, or 6000K. The XS1020WLED measures 590mm long and carries an IP20 rating alongside an IK08 impact rating. The fitting uses an opal polycarbonate diffuser over a powder-coated white steel body and is part of the ILD XLED Signature Series.
Commercial and industrial spaces often run dated fluorescent battens that draw high wattage and need frequent tube changes. The XS1020WLED replaces these with a sealed LED fitting that pairs an opal polycarbonate diffuser with a powder-coated steel body suited to dusty or confined areas. Its dual 10W or 20W selection and tri-colour output let one fitting cover several lighting specs, cutting the number of part numbers carried on the van.
Electricians fitting out schools, warehouses, and public areas value a batten that sets both output and colour on site. The XS1020WLED switches between 10W and 20W and between 3000K, 4000K, and 6000K without swapping the unit, so one box suits offices, storerooms, and corridors. The twist-lock removable gear tray speeds first wiring and later servicing, and the 50,000-hour lamp life keeps maintenance call-backs low across large fit-outs.
The XS1020WLED is not rated for outdoor, wet, or damp exposed locations. Its IP20 rating limits it to dry interior use under cover, so it should not be installed in bathrooms, external eaves, or areas subject to rain or splash. It is non-dimmable and is not suited to circuits run through a dimmer.
(XS1020WLED)
The ILD XS1020WLED is rated IP20 with an IK08 impact rating. IP20 means it is protected against solid objects but not against water, so it suits dry interior use under cover only. IK08 gives it resistance to knocks in workshops, storerooms, and public areas.
Installation must be carried out by a licensed electrician. The XS1020WLED is surface mounted, runs on 240V mains, and has an integral LED driver, so no separate control gear is needed. The twist-lock gear tray drops out for wiring, then locks back into the housing.
This LED batten is set on site rather than being fixed at the factory. Wattage selects between 10W and 20W, and colour temperature selects between 3000K warm white, 4000K neutral white, and 6000K cool white. This lets one fitting cover several lighting specs across a job.
The XS1020WLED is non-dimmable. Its integral driver runs the fitting at full output, so it is not suited to circuits controlled by a dimmer. If a dimmable batten is required, select a fitting specified with a dimmable driver instead.
The XS1020WLED has a rated lamp life above 50,000 hours. Sparky Direct lists a 3-year replacement warranty for both domestic and commercial use, starting from the invoice date. The warranty is void if the fitting is not installed by a licensed electrician.
The XS1020WLED is rated IP20 and is for dry interior use under cover only. It is not sealed against water or dust and should not be installed outdoors, in bathrooms, under eaves, or anywhere exposed to rain or splash. For wet or exposed areas, choose an IP-rated weatherproof batten.
The ILD XS1020WLED is available online from Sparky Direct, with Australia-wide delivery to any state or territory including regional areas. Sparky Direct is an Australian electrical wholesaler established in 2005, supplying more than 500,000 customers with transparent trade pricing.
100-Day Fuss-Free Returns
We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.
If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.
All products come with a manufacturer’s or supplier’s warranty
Damaged or Faulty Goods
If your order arrives damaged or is faulty, let us know within 24 hours.
Contact us via our chat to arrange the return.
Exclusions
We can’t accept returns for:
How to Request a Return
Warranty starts from Invoice Date
Domestic Use: 3 Year replacement
Commercial Use: 3 Year replacement
Warranty Method: Return to Sparky Direct
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | ILD |
| SKU | XS1020WLED |
| Barcode # | 796548147528 |
| Package Weight | 0.950kg |
| TYPE | VALUE |
|---|---|
| Type | Light |
| Brand | ILD |
| Colour | White |
| Width (mm) | 65 |
| Depth (mm) | 65 |
| Length (mm) | 590 |
| Protection | IP20 |
| Power Source | 240V |
| Mounting | Surface Mount |
| Lumens (lm) | 2100 |
| Lighting Technology | LED |
| IK Rating | IK08 |
| Colour Range (CCT) | 3000K/4000K/6000K |
| Lamp Type | 10W/20W LED |
| Diffuser | Opal High Impact Polycarbonate |
| Lamp Life | >50,000Hrs |
| CRI | >80+ |
| Beam Angle | 120° |
| Installation Area | Under cover |
| Dimmable | No |
| Voltage (V) | 240V |
