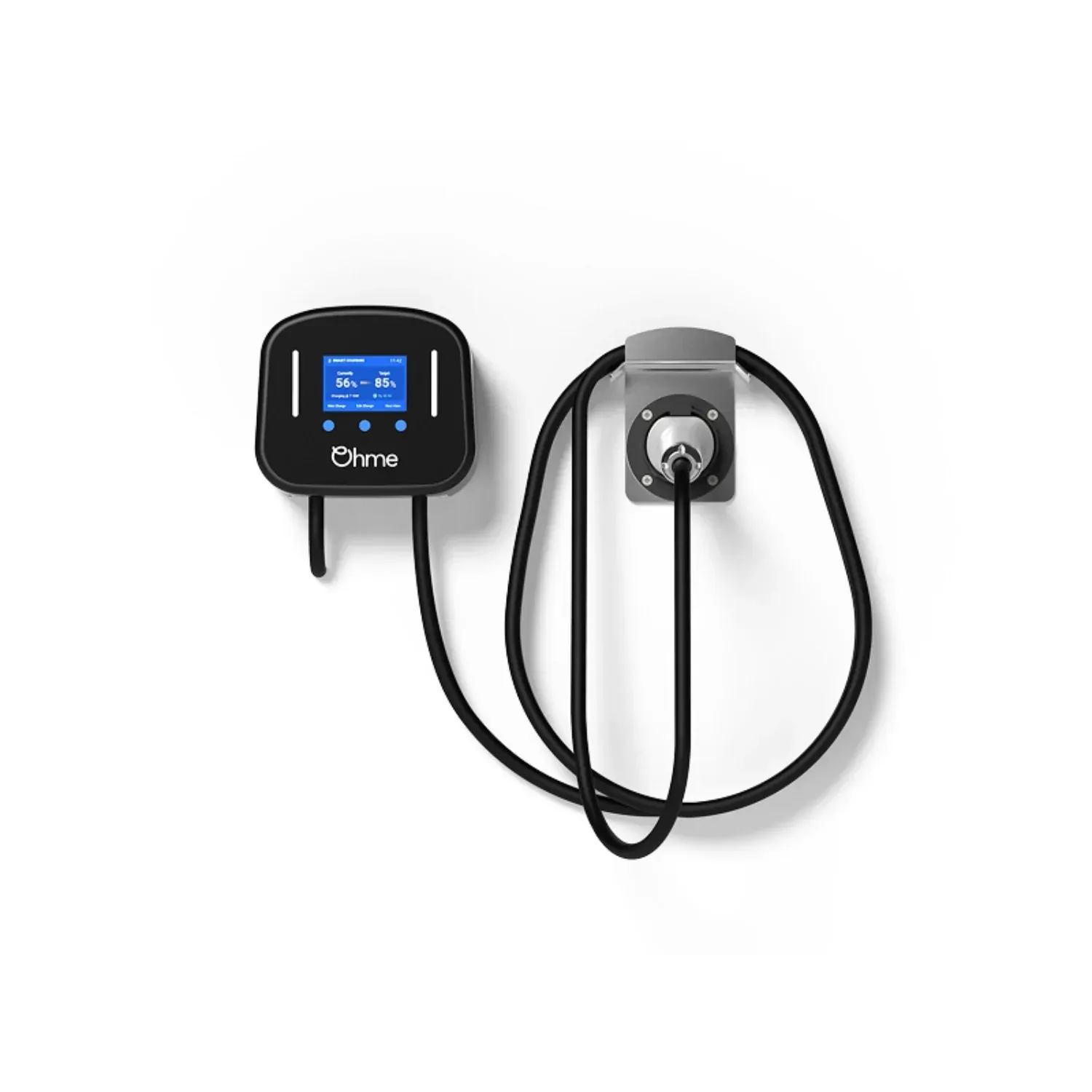

The Ohme Home Pro HP5-07AU-WI-BLSTD-01 is a smart 7.4kW EV charger built for home use, offering fast charging, intelligent scheduling, and rugged, outdoor-ready construction. It includes a tethered 5-metre Type 2 cable, compatible with most EVs in Australia, and suits wall or post mounting in garages, carports, or open areas.
Equipped with WiFi connectivity, the unit gives users full control via the Ohme mobile app or its full-colour LCD display with built-in push-button controls. Through the app, users can schedule charging, track real-time energy usage, optimise for off-peak electricity rates, or leverage excess solar generation—all designed to reduce costs and increase charging efficiency.
Built tough with an IP55 weather rating and IK08 impact resistance, it performs reliably in harsh Australian conditions. The unit includes built-in RCD protection (30mA AC + 6mA DC), eliminating the need for an external Type B RCD. A CT clamp is also included for load management, helping prevent overloads by adjusting charging based on available supply.
HP5-07AU-WI-BLSTD-01 Features
HP5-07AU-WI-BLSTD-01 FAQ
Q: How do I connect to the charger?
A: Through the Ohme app via WiFi, or directly using the charger’s LCD screen and push-button controls.
Q: Can it charge using my solar system?
A: Yes, when connected via WiFi, the charger can utilise surplus solar energy through the app settings.
Q: Is this unit safe for outdoor installation?
A: Absolutely. It’s rated IP55 for weather resistance and IK08 for impact protection—perfect for exposed areas.
(HP5-07AU-WI-BLSTD-01)
100-Day Fuss-Free Returns
We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.
If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.
All products come with a manufacturer’s or supplier’s warranty
Damaged or Faulty Goods
If your order arrives damaged or is faulty, let us know within 24 hours.
Contact us via our chat to arrange the return.
Exclusions
We can’t accept returns for:
How to Request a Return
Warranty starts from Invoice Date
Domestic Use: 3 Year
Commercial Use: 3 Year
Warranty Method: Return to Sparky Direct
| Specification | Details |
|---|---|
| Order Code | HP5-07AU-WI-BLSTD-01 (5m cable) |
| Power Rating | 7.4kW |
| Rated Current | 32A |
| Nominal Supply | 230V/240V AC, 50Hz |
| Supply Cable Entry | 1m length input cable with 3x6mm² L1, N, PE, and Data |
| Overcurrent Protection | Not fitted (to be installed separately) |
| Residual Current Protection | Type A 30mA (AC), 6mA (DC) |
| Status Indication | 3 colour LED strip (green, blue, red), LCD screen (blue, red) |
| Charging Mode | Mode 3 |
| Socket Type | Tethered unit with Type 2 plug |
| Dimensions (H x W x D) | 170mm x 200mm x 100mm |
| Unit Weight | 4kg (Shipping weight: 5.35kg) |
| Mounting Location | Wall or post mounted, indoor or outdoor |
| Operating Temperature | -25°C to 45°C |
| Storage Temperature | -40°C to 85°C |
| Operating Humidity | 5 - 95% RH |
| Enclosure | PC6600, UV Stabilised (f1 UL 746C), Fire Rated (V-0 UL94) |
| IP Rating | IP55 |
| Impact Rating | IK08 |
| Finish | Black |
| Connectivity | WiFi (IEEE 802.11b/g/n, 2.4GHz), Bluetooth |
| Control Method | Buttons on charger or Ohme smartphone app |
| Technology | Load balancing (CT clamp included), solar compatible via WiFi only |
| Upgrades | Over-the-air firmware and software updates |
| Compliance | RCM marked, EESS Registered; complies with multiple IEC/AS/EN standards |
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | Ohme EV |
| SKU | HP5-07AU-WI-BLSTD-01 |
| Package Weight | 5.350kg |
| Package Width | 0.375m |
| Package Height | 0.115m |
| Package Length | 0.368m |
| TYPE | VALUE |
|---|---|
| Type | Charging Station |
| Brand | Ohme |
| Rated Current (A) | 32A per phase |
| IP Rating | IP54/IK08 |
| Earth Leakage Protection | RCD Type A 30 mA with integral 6 mA DC |
| Power Rating | 7.4kW |
| Nominal Supply | 240V AC, 50 HZ |
| Charging Mode | Mode 3 |
