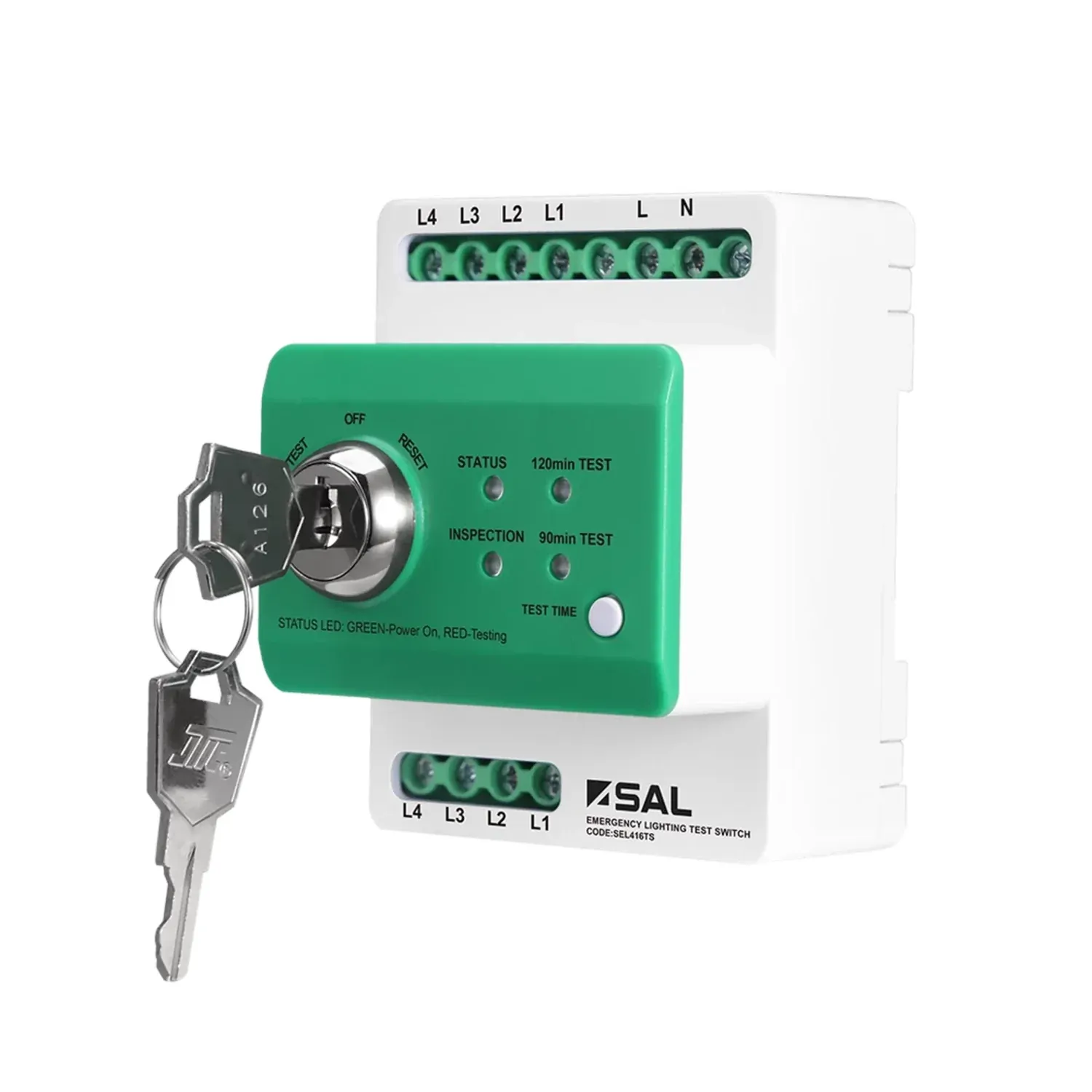

The SAL SEL416TS is a 240V four-pole emergency lighting test switch rated 16A, built to the Steward series on a conventional 35mm DIN rail profile. It runs 90 and 120 minute test functions with LED indicators and a lockable key control. The SEL416TS is a Class II double-insulated device that draws 2 watts in standby.
Emergency lighting in commercial buildings must be discharge-tested at set intervals to confirm the batteries hold up when mains power drops. Doing this by pulling the main feed is slow and hard to log accurately. The SEL416TS sits on the switchboard and isolates the emergency circuit through a 240V-rated 4-pole 16A relay, so the check runs from one lockable key switch with 90- and 120-minute test functions.
For contractors maintaining emergency lighting, the SEL416TS keeps scheduled testing quick and repeatable across a building. The 35mm DIN rail profile mounts alongside the board's other protective devices, and the 4mm2 terminals take standard circuit wiring without adaptors. Front-panel LEDs give a clear reading at the board, and the lockable key stops a test being triggered by anyone but the appointed maintainer.
The SEL416TS is not rated for outdoor or damp locations and its IP20 body suits enclosed indoor switchboards only. It is an emergency lighting test switch, not a general isolator and not a substitute for the circuit protection on the board. Installation and testing must be carried out by a licensed electrician.
(SEL416TS)
The SEL416TS provides 90 and 120 minute timed discharge functions used for routine emergency lighting testing in commercial buildings, isolating the circuit through a 240V four-pole 16A relay. Confirm the test regime and intervals for your site against the current AS/NZS 2293 maintenance requirements.
The switch clips onto a conventional 35mm DIN rail inside a switchboard. Its terminals accept 4mm2 conductors for the 240V four-pole 16A connection. As a Class II device it needs no earth to the body. Installation must be carried out by a licensed electrician.
The two functions run timed discharge tests of 90 and 120 minutes, matching common rated durations for emergency and exit luminaires. Front-panel LEDs indicate status, isolation, and the active test, so the result can be read at the board without extra instruments.
The SEL416TS is rated at 240V AC and switches up to 16A across four poles, drawing 2 watts in standby. The four-pole relay lets it isolate the active and neutral conductors of the emergency lighting circuit for the duration of a test.
SAL supplies the Steward SEL416TS with a three-year commercial warranty covering manufacturing defects. Keep proof of purchase and follow the installation guidance to maintain cover. Warranty claims are handled through SAL or the point of purchase.
The test switch is IP20 rated and built for interior commercial switchboards only, so it is not suitable for outdoor, wet, or damp exposed locations. Mount it inside an enclosed distribution board within an ambient range of 0 to 40 degrees C.
The SAL SEL416TS is available online from Sparky Direct, with Australia-wide delivery to any state or territory including regional areas. Sparky Direct is an Australian electrical wholesaler established in 2005, supplying more than 500,000 customers with transparent trade pricing.
100-Day Fuss-Free Returns
We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.
If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.
All products come with a manufacturer’s or supplier’s warranty
Damaged or Faulty Goods
If your order arrives damaged or is faulty, let us know within 24 hours.
Contact us via our chat to arrange the return.
Exclusions
We can’t accept returns for:
How to Request a Return
Warranty starts from Invoice Date
Commercial Use: 3 Year
Warranty Method: Return to Sparky Direct
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | SAL |
| SKU | SEL416TS |
| Model # | SEL416TS |
| Barcode # | 9328623140073 |
| Package Weight | 0.289kg |
| TYPE | VALUE |
|---|---|
| Type | Emergency Lighting |
| Brand | SAL |
| Rated Current (A) | 16 |
| Height (mm) | 60 |
| Width (mm) | 75 |
| Length (mm) | 65 |
| Voltage (V) | 240 |
| Wattage (W) | 2 |
| Number of Poles | 4 |
| IP Rating | IP20 |
