Name: Theben PIRA-T8-AP | Surface-Mounted Motion and Presence Detector PIR | 360° Detection
Brand: Theben
SKU: PIRA-T8-AP
Price: 82.83 AUD
Availability: OutOfStock

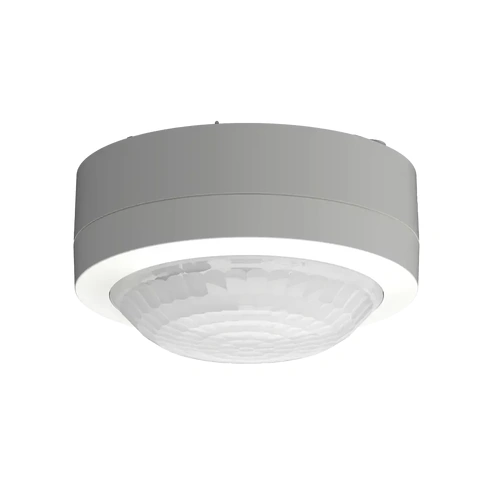

Theben PIRA-T8-AP | Surface-Mounted Motion and Presence Detector PIR | 360° Detection

The Theben PIRA-T8-AP is a surface-mounted indoor motion and presence detector, ideal for spaces where recessed mounting isn’t practical. With a 360° detection range up to 64m² at 3m height, it’s suited for offices, hallways, and commercial areas needing automatic lighting control without ceiling cut-outs.

This unit features 1 lighting output (230V relay) and supports automatic switching based on motion and ambient brightness. The brightness threshold is adjustable between 5–1000 lux, and the switch-off delay can be set from 5 seconds to 15 minutes. It arrives pre-set at 100 lux with a 2-minute delay, ready for immediate use.

Compatible with various lamp types including LED (up to 200W), fluorescent, halogen, and energy-saving bulbs, the PIRA-T8-AP installs easily on ceilings and is rated IP21 for dry indoor environments. Designed for ceiling heights between 2 and 3 metres.

PIRA-T8-AP Features

Surface-mounted ceiling PIR sensor: Perfect for solid ceilings or retrofit installs.

360° detection up to 64m²: Detects up to 9m diameter from a 3m height.

Supports LED and multiple lamp types: Works with LEDs (200W max), halogen, and more.

Adjustable lux & delay settings: Brightness 5–1000 lux, delay 5s–15min.

Plug-and-play default settings: 100 lux, 2 min switch-off preset for fast commissioning.

PIRA-T8-AP FAQ
Q: What is the detection area at maximum height?
A: At 3m ceiling height, it detects motion across 64m² (9m diameter).

Q: Can it switch LED lighting?
A: Yes, it supports LED loads up to 200W and other standard lamp types.

Q: Does it need to be recessed into the ceiling?
A: No, it's a surface-mount model, ideal for solid or retrofit ceiling installs.

Specification

Details

Operating Voltage

230 V AC

Frequency

50 Hz

Installation Height

2 – 3 m

Installation Type

Ceiling installation, Indoor

Colour

White

Switching Output

Light

Light Measurement

Mixed light measurement

Setting Range Brightness

5 – 1000 lx

Light Switch-off Delay

5 s – 15 min

Lamp Types

Incandescent/halogen, fluorescent, energy saving lamps, LEDs

LED Lamp 2-8W

200 W

LED Lamp >8W

200 W

Detection Range

50 m² (ø 8 m | 360°)

Detection Angle

360°

Ambient Temperature

-5°C to +40°C

Type of Protection

IP21

Mounting Height (A)

Sitting (S)

Diagonally (T)

Head on to (R)

2 m

7 m² | 3 m

38 m² | 7 m

13 m² | 4 m

2.5 m

7 m² | 3 m

50 m² | 8 m

13 m² | 4 m

3 m

7 m² | 3 m

64 m² | 9 m

13 m² | 4 m

TYPE

VALUE

Type

PIR Sensor

Brand

Theben

Colour

White

Frequency

50Hz

IP Rating

IP21

Operating Voltage

230V AC

Detection angle

360°

Brightness Range

5 lx - 1000 lx

Installation Height

2.5 - 3.5 m

Brand	Theben
SKU	PIRA-T8-AP
Barcode #	4003468102152
Package Weight	0.160kg
Package Width	0.100m
Package Height	0.100m
Package Length	0.050m
