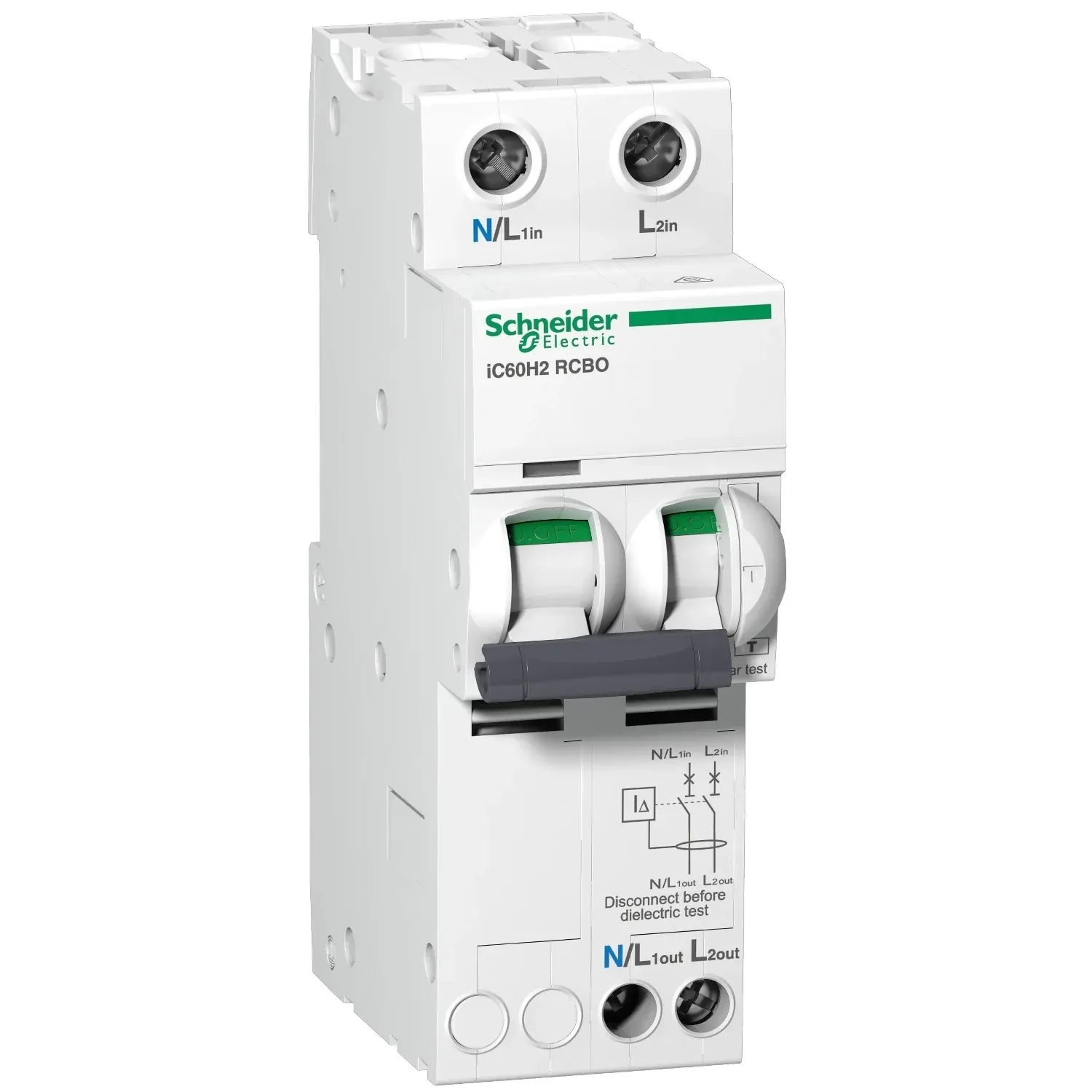

        Schneider Electric | Acti9 iC60H2 RCBO 2P 25A 30mA C Curve | Type A 10kA

        The Schneider Electric A9D11225 is a two-pole RCBO rated 25A, with 30mA earth-leakage sensitivity and a C curve. The A9D11225 pairs Type A residual current detection with a thermal-magnetic trip unit in one four-module device. It carries a 10,000A breaking capacity at 230/240V AC and complies with AS/NZS 61009.1.

        Earth-leakage protection fitted as a separate RCD takes a second device and the board space to hold it. The A9D11225 carries both functions in one four-module DIN rail device measuring 36mm across. Its Type A protection class responds to pulsating DC residual current as well as sinusoidal AC. The 30mA sensitivity trips instantaneously, with no intentional time delay on the earth-leakage path.

        The A9D11225 clips onto standard DIN rail and is rated for isolation, so it can isolate the circuit it protects. ON/OFF locking facilities take a padlock up to 4mm shackle diameter. A contact position indicator shows the true position of the contacts at the toggle. Tightening torque is set at 3.5 N.m on the top terminals and 2 N.m on the bottom.

        Features

        • 25A C curve rating — rated 25A at 50 degrees C ambient, with a C curve tripping characteristic on overcurrent.
        • Type A earth leakage class — detects sinusoidal AC residual current and pulsating DC residual current.
        • 30mA sensitivity — earth-leakage tripping is instantaneous, with no intentional time delay set at the device.
        • 10,000A breaking capacity — Icn of 10,000A at 230/240V AC, with a rated service breaking capacity (Ics) of 7,500A.
        • Two protected poles — the A9D11225 switches active and neutral together, with the neutral position on the left.
        • Thermal-magnetic trip unit — overcurrent protection uses a thermal element for overload and a magnetic element for short circuit.
        • Screw clamp terminals — top terminals accept 1 to 25mm2 rigid, bottom terminals 1 to 16mm2 rigid, without cable ends.
        • AS/NZS 61009.1 compliance — the A9D11225 is also built to IEC 61009-1 and IEC 61009-2-2.
        • 20,000 mechanical operations — rated mechanical endurance is 20,000 cycles and rated electrical endurance is 5,000 cycles.
        • Voltage dependent tripping — the residual current tripping technology on the A9D11225 depends on supply voltage being present.
        • IP20 rating — IP20 protection suits DIN rail installation inside a switchboard or enclosure, with no ingress protection against water.
        • No comb busbar connection — comb busbar and distribution block compatibility is not supported on this device.

        Where to use

        • Final subcircuit protection — the A9D11225 sits as an outgoing device in a distribution board, protecting a single final subcircuit.
        • Switchboard upgrades — combines earth-leakage and overcurrent protection where a board has room for four 9mm pitches.
        • TN, IT and TT earthing — rated for use on TN, IT and TT earthing systems.
        • Circuits with electronic loads — the Type A class of the A9D11225 covers circuits that can produce pulsating DC residual current.
        • 230/240V 50Hz distribution — rated operational voltage is 230/240V AC at 50/60Hz on a 50Hz network.

        The A9D11225 is IP20 rated, which gives no protection against water ingress and no protection against dust. It is not rated for comb busbar or distribution block connection. Operating ambient runs from -15 to 60 degrees C, so it is not rated above 60 degrees C.

        (A9D11225)

        The A9D11225 complies with AS/NZS 61009.1, and is also built to IEC 61009-1 and IEC 61009-2-2. It is rated 230/240V AC at 50/60Hz, with a 10,000A breaking capacity and a rated service breaking capacity of 7,500A.

        Mounting is clip-on to DIN rail. The device occupies four 9mm pitches, measuring 36mm wide, 110mm high and 75.5mm deep. The neutral position is on the left. Net weight is 332g.

        Type A is the earth-leakage protection class. It covers sinusoidal AC residual current and pulsating DC residual current. Sensitivity is 30mA and the earth-leakage protection time delay is instantaneous. Residual current tripping is voltage dependent, so supply voltage must be present for the device to trip.

        C curve describes the magnetic tripping characteristic for short-circuit current. The trip unit is thermal-magnetic: the thermal element handles overload and the magnetic element handles short circuit. Rated current is 25A at 50 degrees C ambient. Limitation class is 3.

        Top screw clamp terminals take 1 to 25mm2 rigid or 1 to 16mm2 flexible. Bottom terminals take 1 to 16mm2 rigid or 1 to 10mm2 flexible, all without cable ends. Stripping length is 14mm top and 13mm bottom. Torque is 3.5 N.m top and 2 N.m bottom.

        The contractual warranty period for the A9D11225 is 18 months. Rated endurance is 20,000 mechanical operations and 5,000 electrical operations. The device carries a contact position indicator and ON/OFF local signalling, so contact state can be checked at the toggle.

        The device is rated as suitable for isolation and carries ON/OFF locking facilities. It accepts a padlock up to 4mm shackle diameter. Control is by toggle, with a contact position indicator showing the true position of the contacts.

        The IP20 rating means installation inside a switchboard or enclosure. Ambient operating temperature runs from -15 to 60 degrees C, and storage from -40 to 85 degrees C. Comb busbar and distribution block connection is not supported.

        The Schneider Electric A9D11225 is available online from Sparky Direct, with Australia-wide delivery to any state or territory including regional areas. Sparky Direct is an Australian electrical wholesaler established in 2005, supplying more than 500,000 customers with transparent trade pricing.

        100-Day Fuss-Free Returns
        We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.

        • Items must be unused, with all parts, accessories, and original packaging.
        • We can’t accept returns if the product is damaged, incomplete, or not in resalable condition.
        • Proof of purchase is required.
        • Return shipping is the responsibility of the customer.

        If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.


        All products come with a manufacturer’s or supplier’s warranty

        • Warranty starts from the Invoice Date
        • Some suppliers offer in-home warranties and handle claims directly, so you won’t need to uninstall or return the product. Chat with us to check if your product qualifies.
        • Sparky Direct isn’t responsible for losses caused by product failure.
        • Warranties are void if products aren’t installed by a licensed electrician.

        Damaged or Faulty Goods
        If your order arrives damaged or is faulty, let us know within 24 hours.

        • Sparky Direct will pay for return shipping via an emailed return label.
        • If the fault is confirmed, we will send you a replacement item or provide a refund.

        Contact us via our chat to arrange the return.


        Exclusions
        We can’t accept returns for:

        • Items that have been installed, modified, or used
        • Clearance, End of life, Discontinued, or special order items (unless faulty)
        • All PPE Items
        • Goods returned without original packaging or proof of purchase

        How to Request a Return

        1. Contact our customer service team with your order number.
        2. Confirm it’s eligible under our return or warranty policy.
        3. Pack the item securely and return it using a trackable service.
        4. Once we receive and inspect it, we’ll process your refund or replacement.

        Warranty starts from Invoice Date

        Domestic Use: 18 Months
        Commercial Use: 18 Months
        Warranty Method: Clipsal in home warranty

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Clipsal by Schneider Electric
        SKU A9D11225
        Model # A9D11225
        Barcode # 3606480558757
        Package Weight 0.290kg
        TYPE VALUE
        Type RCBO
        Brand Clipsal by Schneider Electric
        Range Acti9 iC60H2
        Rated Current (A) 25
        Protection C Curve
        Voltage (V) 230/240
        Number of Poles 2
        Earth Leakage Sensitivity 30mA
        Earth Leakage Protection Class Type A
