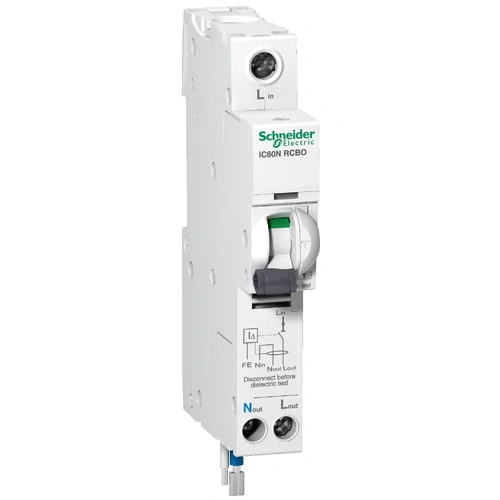

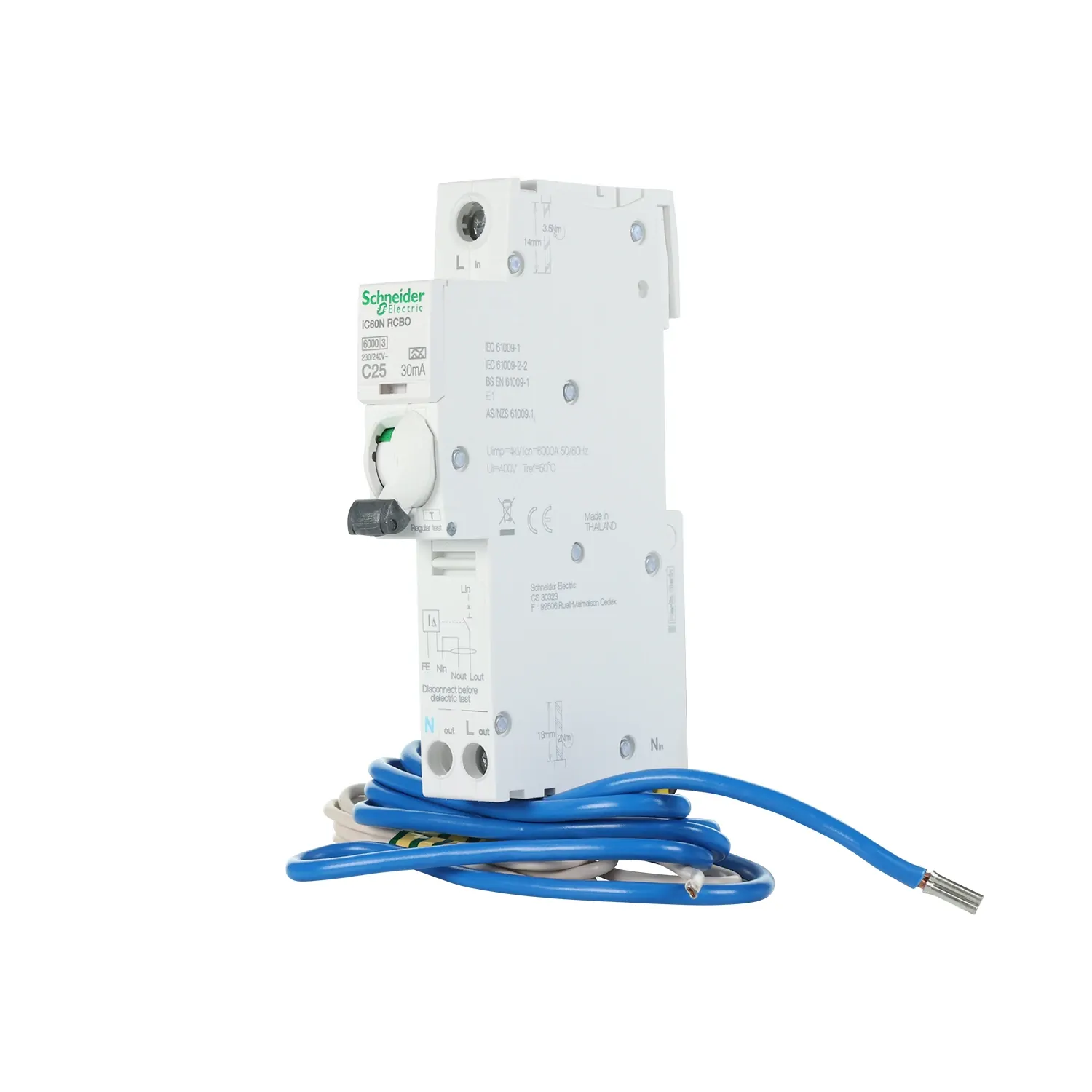

        Schneider Electric A9D61825 | Acti9 25A RCBO 1P+Ns Type A | 6kA

        The Schneider Electric A9D61825 is a 25A, single module RCBO offering combined protection against earth leakage and overcurrent faults. Suitable for residential and commercial installations, it features a 30mA sensitivity, C Curve trip, and 6kA breaking capacity—making it ideal for lighting and general power circuits.

        This DIN-mounted device includes a thermal-magnetic trip unit, padlockable toggle, and a clear ON/OFF indicator for maintenance safety. With a slim 18mm width and left-hand neutral configuration, it installs easily into tight switchboards and complies with AS/NZS 61009.1 standards.

        A9D61825 Features

        • 25A Type A RCBO – Provides residual current and overload protection in one unit.
        • 30mA Earth Leakage Sensitivity – Detects and trips on leakage to enhance user safety.
        • 6kA Breaking Capacity – Suitable for general low-voltage fault protection.
        • C Curve Trip Profile – Ideal for inductive and resistive load circuits.
        • DIN Rail Mount, 18mm Wide – Compact design with screw terminals and left-side neutral.

        A9D61825 FAQ

        Q: What kind of loads is this RCBO suited for?
        A: The C Curve makes it suitable for lighting, appliances, and small motor loads.

        Q: Can it be used in TN systems?
        A: Yes, it’s designed for TN earthing systems commonly used in Australian installations.

        Q: Is the toggle padlockable?
        A: Yes, the toggle includes a padlock provision for secure isolation during maintenance.

        (A9D61825)

        100-Day Fuss-Free Returns
        We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.

        • Items must be unused, with all parts, accessories, and original packaging.
        • We can’t accept returns if the product is damaged, incomplete, or not in resalable condition.
        • Proof of purchase is required.
        • Return shipping is the responsibility of the customer.

        If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.


        All products come with a manufacturer’s or supplier’s warranty

        • Warranty starts from the Invoice Date
        • Some suppliers offer in-home warranties and handle claims directly, so you won’t need to uninstall or return the product. Chat with us to check if your product qualifies.
        • Sparky Direct isn’t responsible for losses caused by product failure.
        • Warranties are void if products aren’t installed by a licensed electrician.

        Damaged or Faulty Goods
        If your order arrives damaged or is faulty, let us know within 24 hours.

        • Sparky Direct will pay for return shipping via an emailed return label.
        • If the fault is confirmed, we will send you a replacement item or provide a refund.

        Contact us via our chat to arrange the return.


        Exclusions
        We can’t accept returns for:

        • Items that have been installed, modified, or used
        • Clearance, End of life, Discontinued, or special order items (unless faulty)
        • All PPE Items
        • Goods returned without original packaging or proof of purchase

        How to Request a Return

        1. Contact our customer service team with your order number.
        2. Confirm it’s eligible under our return or warranty policy.
        3. Pack the item securely and return it using a trackable service.
        4. Once we receive and inspect it, we’ll process your refund or replacement.

        Warranty starts from Invoice Date

        Domestic Use: 2 Year
        Commercial Use: 2 Year
        Warranty Method: Clipsal in home warranty

        Specification Details
        Model A9D61825
        Product Type RCBO - Residual Current Breaker with Overcurrent Protection
        Poles Description 1P + Ns
        Rated Current 25 A at 50°C
        Curve Code C
        Breaking Capacity 6000 A at 230/240 V AC 50/60 Hz
        Earth Leakage Sensitivity 30 mA
        Earth Leakage Protection Class Type A
        Residual Current Tripping Voltage dependent, instantaneous
        Rated Operational Voltage 230/240 V AC 50/60 Hz
        Rated Insulation Voltage 400 V AC
        Impulse Withstand Voltage 4 kV
        Surge Current 250 A
        Mounting DIN rail, clip-on
        Dimensions (H×W×D) 110 × 18 × 77.5 mm
        Net Weight 205 g
        Colour White
        Mechanical Durability 20000 cycles
        Electrical Durability 5000 cycles
        Degree of Protection IP20
        Standards IEC 61009-1, IEC 61009-2-2, AS/NZS 61009.1

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Clipsal by Schneider Electric
        SKU A9D61825
        Barcode # 3606480558269
        Package Weight 0.205kg
        Package Width 0.018m
        Package Height 0.077m
        Package Length 0.110m
        TYPE VALUE
        Type Circuit Protection
        Brand Schneider Electric
        Range Acti9
        Rated Current (A) 25A
        Height (mm) 110mm
        Width (mm) 18mm
        Depth (mm) 77.5mm
        Number of Poles 1P + Ns
        Breaking Capacity 6kA
        Earth Leakage Sensitivity 30mA
        Earth Leakage Protection Class Type A
        Curve C
