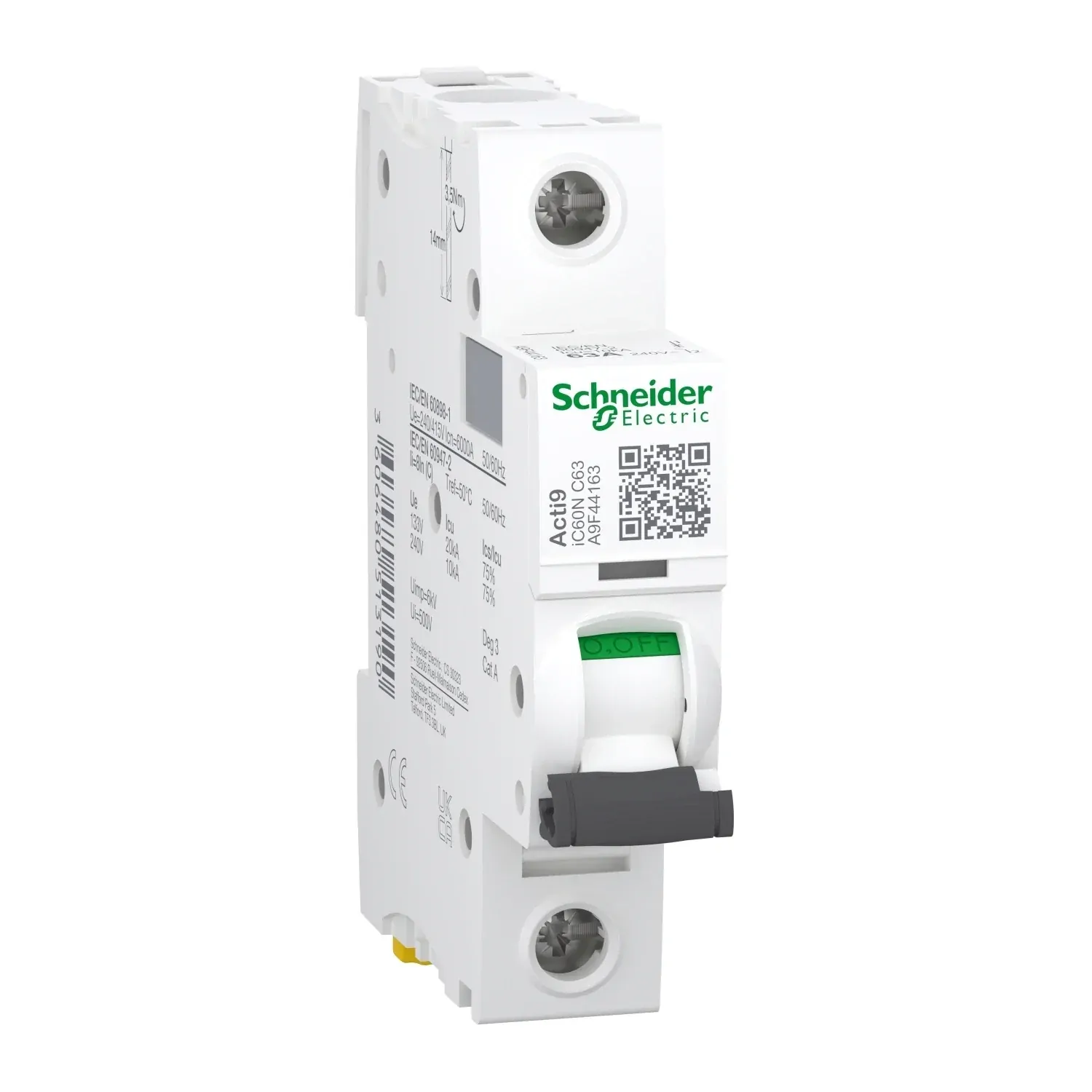

The Schneider Electric A9F44163 is a single pole miniature circuit breaker rated 63A with a C tripping characteristic, from the Acti9 iC60N Disbo range. It carries 6000A Icn at 240V AC to EN/IEC 60898-1 and 10kA Icu at 220 to 240V AC to EN/IEC 60947-2. The A9F44163 holds Category A utilisation classification and is certified for both alternating and direct current networks. The body occupies a single 18mm pole width and clips onto standard DIN rail.
63A is the top single pole rating in the iC60N Disbo range, so it lands on sub-mains, sub-board feeds and fixed plant sized close to the cable limit. Boards that also carry DC control or battery supply alongside those loads need a breaker certified for both networks. A DC arc has no zero crossing to assist extinction, so the interrupting mechanism must be rated for DC duty. The A9F44163 is certified for AC and DC networks, with DC operation to 72V and a C characteristic that rides through compressor and motor inrush.
Carrying one part number certified for both duties cuts the number of breakers held on the van. The A9F44163 mounts on standard DIN rail at a single 18mm pole width, so existing switchboard schedules and enclosure layouts need no revision. Terminals accept 35mm² rigid or 25mm² flexible conductor, which matters at 63A where the incoming sub-main conductor is already substantial. The sealable handle supports positive isolation, so the circuit is proved dead before downstream work starts.
The A9F44163 is not a residual current device and provides no earth leakage protection independently. It is rated IP20, so installation must be inside a switchboard or enclosure, and the breaker is not suitable for exposed or wet locations. Direct current application stops at 72V, so the device must not be fitted to higher voltage DC circuits.
(A9F44163)
The breaker conforms to EN/IEC 60898-1 and EN/IEC 60947-2. Rated short-circuit capacity is 6000A Icn at 240V AC under 60898-1, and 10kA Icu at 220 to 240V AC under 60947-2. Utilisation category is A, rated insulation voltage 500V AC, impulse withstand 6kV.
Installation or replacement inside a switchboard must be carried out by a licensed electrician under AS/NZS 3000. The breaker clips onto DIN rail without tools. Terminals are tightened to 3.5 N.m with 14mm of insulation stripped from the conductor.
A C curve trips magnetically at 8 times rated current plus or minus 20 percent, which is roughly 504A at 63A. That headroom rides through compressor, pump and transformer inrush that would trip a B curve device on start-up.
The Acti9 iC60N Disbo is certified for AC and DC networks. DC ratings are 15kA Icu at 12 to 60V DC and 10kA Icu at 60 to 72V DC. Circuits above 72V DC sit outside the rating and need a device rated for that voltage.
Each top or bottom terminal accepts 1 to 35mm2 rigid or 1 to 25mm2 flexible conductor. Strip 14mm of insulation and tighten to 3.5 N.m. That range covers the conductor sizes normally run to a 63A sub-main.
Earth leakage protection is not built into the Acti9 iC60N Disbo. The device covers overload and short circuit only. Residual current protection comes from a separate add-on block fitted alongside it on the rail, or from a combined residual current breaker on that circuit.
Schneider Electric states an 18 month contractual warranty on the A9F44163, covering manufacturing defects. Claims are made through Schneider Electric or the supplying wholesaler with proof of purchase and the date of installation.
The Schneider Electric A9F44163 is available online from Sparky Direct, with Australia-wide delivery to any state or territory including regional areas. Sparky Direct is an Australian electrical wholesaler established in 2005, supplying more than 500,000 customers with transparent trade pricing.
100-Day Fuss-Free Returns
We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.
If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.
All products come with a manufacturer’s or supplier’s warranty
Damaged or Faulty Goods
If your order arrives damaged or is faulty, let us know within 24 hours.
Contact us via our chat to arrange the return.
Exclusions
We can’t accept returns for:
How to Request a Return
Warranty starts from Invoice Date
Domestic Use: 18 Months
Commercial Use: 18 Months
Warranty Method: Clipsal in home warranty
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | Clipsal by Schneider Electric |
| SKU | A9F44163 |
| Model # | A9F44163 |
| Barcode # | 3606480513190 |
| Package Weight | 0.106kg |
| TYPE | VALUE |
|---|---|
| Type | Circuit Protection |
| Brand | Schneider Electric |
| Range | Acti9 |
| Colour | White |
| Rated Current (A) | 63 |
| Height (mm) | 85 |
| Width (mm) | 18 |
| Depth (mm) | 78.5 |
| Protection | C Curve |
| Voltage (V) | 240 |
