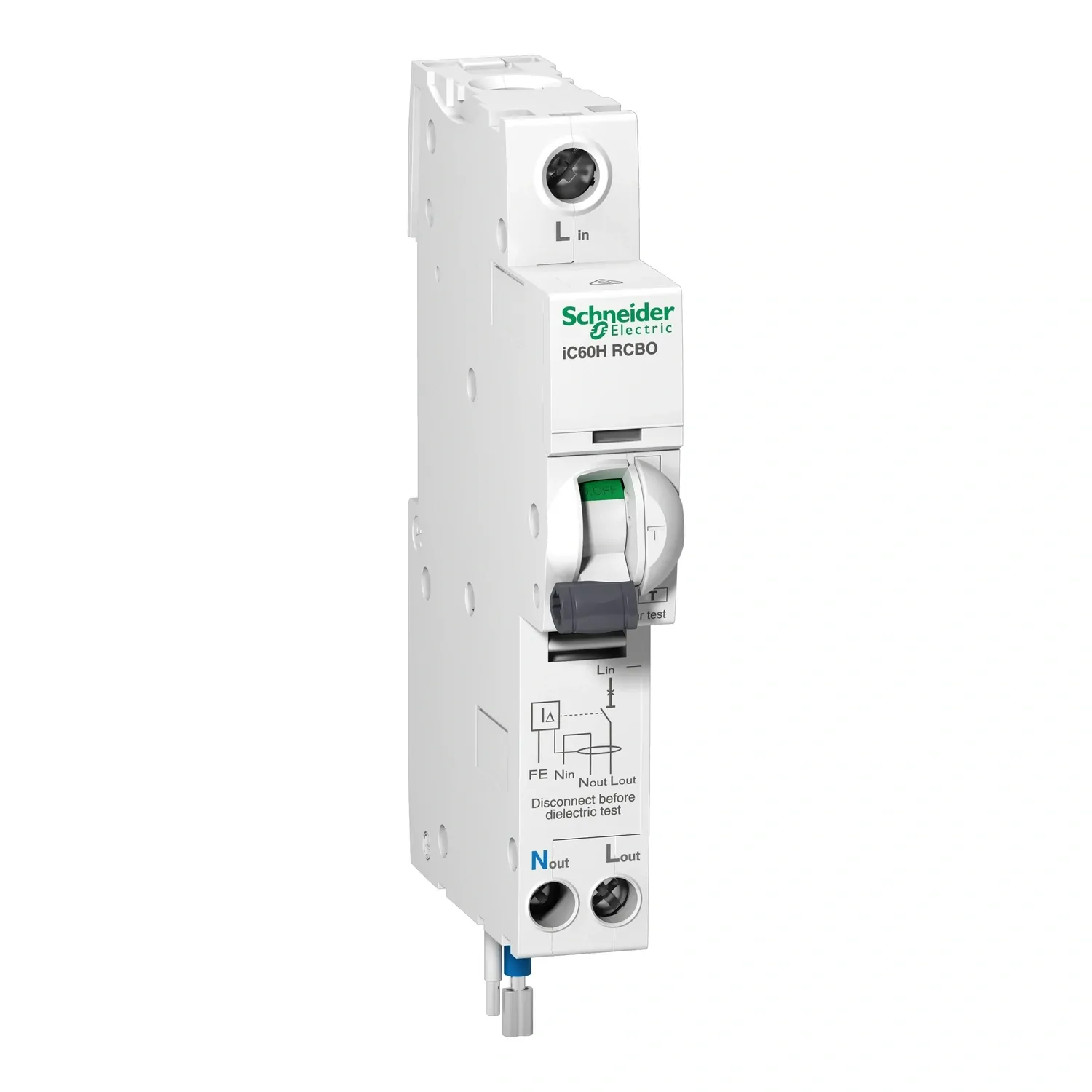

The Schneider Electric A9D11810 is a residual current breaker with overcurrent protection (RCBO), rated 10A with 30mA earth-leakage sensitivity. The A9D11810 is a 1P+Ns device from the Acti9 iC60H range, with a C curve and Type A earth-leakage protection. Breaking capacity is 10,000A Icn at 230/240V AC and the device complies with AS/NZS 61009.1. It clips onto standard DIN rail and occupies two 9mm pitches, 18mm overall.
Switchboard space runs short on older domestic boards being brought up to current wiring rules. The A9D11810 combines overcurrent and earth-leakage protection in one 18mm module, so the one-module width suits retrofit work where space is limited. Earth-leakage protection is integrated on the outgoing circuit rather than shared across a group RCD. The device also gives additional protection on loss of the neutral, and ON/OFF local signalling shows contact position at the board.
Combining overcurrent and earth-leakage protection in one device saves installation time and space on the board. The A9D11810 accepts up to 25mm2 rigid cable in the top screw clamp terminals at 3.5 N.m torque. It is suitable for isolation, so the outgoing circuit can be locked off while work is carried out. The Visi-Trip window indicates fault tripping, so a faulted device is identified at the board.
The A9D11810 is rated IP20, so it must sit inside a switchboard or enclosure and is not weatherproof. The device is marked general type, not for patient areas, and is not for medical treatment locations. It is not compatible with comb busbar or distribution block connection, and operates between -15 and 60 degrees Celsius.
(A9D11810)
The A9D11810 complies with AS/NZS 61009.1, IEC 61009-1, IEC 61009-2-2 and BS EN 61009-1. Rated insulation voltage is 400V AC and rated impulse withstand voltage is 4kV. The device is IP20 rated for installation inside a switchboard.
Switchboard work is licensed electrical work in Australia and must be carried out by a licensed electrician. The device clips onto DIN rail across two 9mm pitches. Stripping length is 14mm for the top connection and 13mm for the bottom, with 3.5 N.m and 2 N.m tightening torque respectively.
A Type A device detects pulsating DC residual current, which loads with single-phase rectifier circuits can produce, as well as the sinusoidal AC residual current a Type AC device detects. Sensitivity is 30mA and the earth-leakage protection time delay is instantaneous.
Comb busbar and distribution block connection is not supported on this device. Conductors are terminated directly into the screw clamp terminals, which take 1 to 25mm2 rigid or 1 to 16mm2 flexible cable at the top, and 1 to 16mm2 rigid or 1 to 10mm2 flexible at the bottom.
Mechanical durability is 20,000 cycles and electrical durability is 5,000 cycles. The toggle carries ON/OFF local signalling and a contact position indicator, and fault tripping is shown in the Visi-Trip window. Accessories and auxiliaries are listed by Schneider Electric for this range.
Schneider Electric states a contractual warranty period of 18 months on this device. Warranty covers manufacturing defects. Installation must be carried out by a licensed electrician for the warranty to hold, and the device must be used within its rated voltage, current and ambient temperature limits.
The IP20 rating means the device is for installation inside a switchboard or enclosure, not for direct outdoor or damp exposure. It is marked general type, not for patient areas, so it is not for medical treatment locations. Ambient operating range is -15 to 60 degrees Celsius.
The Schneider Electric A9D11810 is available online from Sparky Direct, with Australia-wide delivery to any state or territory including regional areas. Sparky Direct is an Australian electrical wholesaler established in 2005, supplying more than 500,000 customers with transparent trade pricing.
100-Day Fuss-Free Returns
We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.
If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.
All products come with a manufacturer’s or supplier’s warranty
Damaged or Faulty Goods
If your order arrives damaged or is faulty, let us know within 24 hours.
Contact us via our chat to arrange the return.
Exclusions
We can’t accept returns for:
How to Request a Return
Warranty starts from Invoice Date
Domestic Use: 18 Months
Commercial Use: 18 Months
Warranty Method: Clipsal in home warranty
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | Clipsal by Schneider Electric |
| SKU | A9D11810 |
| Model # | A9D11810 |
| Barcode # | 3606480558603 |
| Package Weight | 0.208kg |
| TYPE | VALUE |
|---|---|
| Type | RCBO |
| Brand | Schneider Electric |
| Colour | White |
| Rated Current (A) | 10 |
| Protection | C Curve |
| Voltage (V) | 240 |
| Number of Poles | 1P + Ns |
| Earth Leakage Sensitivity | 30mA |
| Earth Leakage Protection Class | Type A |
