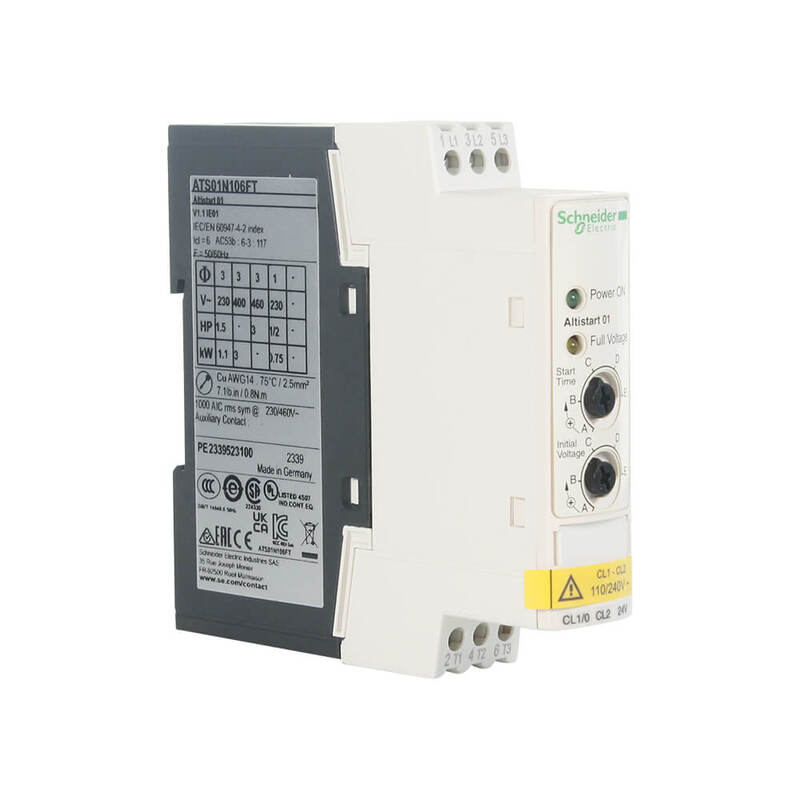

Schneider Electric ATS01N106FT | Altistart Soft Starter 6A 110-480V 0.75-3KW
Learn more by watching our Schneider Electric ATS01N106FT | Altistart Soft Starter 6A 110-480V 0.75-3KW video.
Description:
The Schneider Electric ATS01N106FT Altistart Soft Starter is a compact and efficient solution designed for electricians seeking to improve the performance and longevity of various machinery. Ideal for single or 3-phase asynchronous motors with a rating up to 6A, this soft starter is versatile for a wide array of applications.
Capable of handling motors with rated power up to 3kW or 3hp for 3-phase (110V to 480V AC) and up to 0.75kW for single-phase (110V to 230V AC), the ATS01N106FT is perfect for simple machines such as conveyors, pumps, fans, compressors, automatic doors, gates, small cranes, and belt-driven machinery.
Measuring just 22.5mm in width, this soft starter is one of the smallest on the market, ensuring it can be installed in nearly any space. Its integrated bypass not only reduces noise but also decreases heat dissipation, making for a quieter and cooler operation.
The ATS01N106FT is designed for easy configuration, with only two settings needed for setup. It provides a smooth start for machinery, thus avoiding mechanical stresses and extending service life. This functionality not only enhances the performance of your equipment but also contributes to a more comfortable work environment by reducing noise and vibrations.
Features:
FAQ:
Q: What types of motors can this soft starter control?
A: It's designed for single or 3-phase asynchronous motors up to 6A.
Q: Is it easy to install?
A: Yes, its compact size and simple configuration make installation straightforward.
Q: How does it benefit the machinery?
A: It provides a smooth start, reducing mechanical stress and extending the life of the equipment.
(ATS01N106FT)
Warranty starts from Invoice Date
Domestic Use: 18 Months
Commercial Use: 18 Months
Warranty Method: Return to Sparky Direct
| Specifications | Details |
|---|---|
| Range | Altistart 01 |
| Product or component type | Soft Starter |
| Device application | Asynchronous motors |
| Product Specific Application | Simple machine |
| Network Number of Phases | 1 Phase |
| [Us] Rated Supply Voltage | 110...480 V - 10...10 % |
| Motor Power Kw | 3 kW, 3 phases at 400 V 0.75 kW, 3 phases at 230 V 1.1 kW, 3 phases at 230 V 2.2 kW, 3 phases at 400 V 0.75 kW, 1 phase at 230 V |
| Motor power Hp | 1 hp, 3 phases at 230 V 2 hp, 3 phases at 460 V 3 hp, 3 phases at 460 V 0.5 hp, 3 phases at 210 V 1.5 hp, 3 phases at 230 V |
| Icl Starter Rating | 6 A |
| Utilisation category | AC-53B conforming to EN/IEC 60947-4-2 |
| Current Consumption | 30 A at nominal load |
| Type of Start | Start with voltage ramp |
| Power Dissipation In W | 31 W in transient state 1 W at full load and at end of starting |
| Complementary | |
| Assembly Style | With heat sink |
| Function Available | Integrated bypass |
| Supply Voltage Limits | 99…528 V |
| Supply Frequency | 50...60 Hz - 5...5 % |
| Network Frequency | 47.5...63 Hz |
| Output Voltage | <= power supply voltage |
| [Uc] Control Circuit Voltage | 110 V AC +/- 10 % at 30 mA 24 V AC/DC +/- 10 % at 25 mA 240 V AC +/- 10 % at 65 mA |
| Starting Time | 1 s / 100 5 s / 20 Adjustable from 1 to 5 s |
| Starting Torque | 30...80 % of starting torque of motor connected directly on the line supply |
| Discrete Output Current | 2 A DC-13 3 A AC-15 |
| Tightening Torque | 0.8 N.m |
| Motor Power Range Ac-3 | 0.55…1 kW at 200…240 V 3 phases 1.1…2 kW at 380…440 V 3 phases 0.55…1 kW at 200…240 V 1 phase 1.1…2 kW at 200…240 V 3 phases 2.2…3 kW at 380…440 V 3 phases |
| General | |
| Standards | EN/IEC 60947-4-2 |
| Product Certifications | CSA GOST C-Tick UL CCC B44.1-96/ASME A17.5 for starter wired to the motor delta terminal |
| IP Degree Of Protection | IP20 |
| Vibration Resistance | 1 gn (f= 13…150 Hz) conforming to EN/IEC 60068-2-6 1.5 mm peak to peak (f= 3…13 Hz) conforming to EN/IEC 60068-2-6 |
| Shock Resistance | 15 gn for 11 ms conforming to EN/IEC 60068-2-27 |
| Relative Humidity | 5…95 % without condensation or dripping water conforming to EN/IEC 60068-2-3 |
| Ambient air temperature for operation | -10…40 °C (without derating) 40…50 °C (with current derating of 2 % per °C) |
| Dimensions (Height x Width x Depth) | 100 x 23 x 100 mm |
| Weight | 0.16 kg |
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | Clipsal by Schneider Electric |
| SKU | ATS01N106FT |
| Barcode # | 3389110667141 |
| Shipping Weight | 0.1780kg |
| Shipping Width | 0.105m |
| Shipping Height | 0.025m |
| Shipping Length | 0.105m |
| Shipping Cubic | 0.000275625m3 |
| TYPE | VALUE |
|---|---|
| Type | Circuit Protection |
| Brand | Schneider Electric |
| Range | Altistart 01 |
