    Learn more by watching our Schneider Electric LE1M35N714 | TeSys Enclosed DOL Starter 5.5-8A 415V video.

    Description

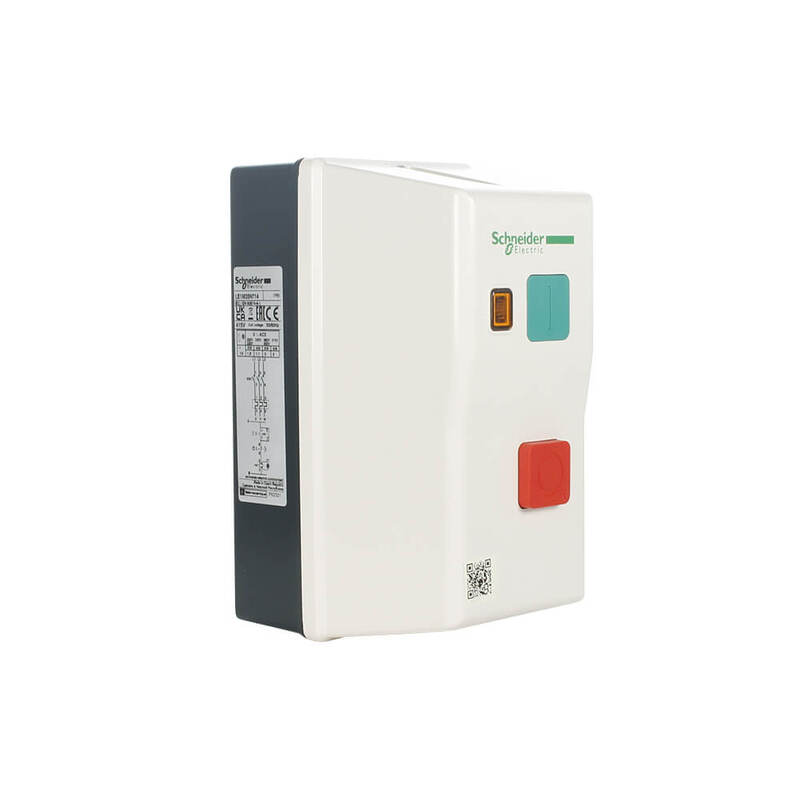

    Schneider Electric LE1M35N714 | TeSys Enclosed DOL Starter 5.5-8A 415V

    Description:

    Upgrade your motor-driven systems with the Schneider Electric LE1M35N714 TeSys Enclosed DOL Starter, a pinnacle of innovation and efficiency. Boasting a robust polycarbonate enclosure, advanced motor protection, and user-friendly controls, this starter is engineered to meet the demands of diverse applications. Explore the benefits and find answers to common queries in our FAQ section.

    Benefits:

    • Exceptional Protection: The polycarbonate enclosure ensures a high level of protection against water, dust, and mechanical impact, safeguarding your equipment and enhancing its durability.

    • Efficient Motor Protection: Efficient motor protection against overload conditions, working seamlessly with an overload relay to ensure the longevity and reliability of your motor-driven systems.

    • Intuitive Operation: The starter is designed for ease of use with front-facing pushbuttons, providing an intuitive interface for straightforward and efficient motor control.

    • Versatile Resetting Options: Enjoy the flexibility of multiple resetting methods, including manual and remote options, catering to different operational scenarios and enhancing control convenience.

    • Powerful Motor Control: Engineered for Direct On Line operation, this starter supports 415 Volt AC coils and various power requirements, making it a robust solution for motors with power ratings between 5.5A and 8A.

    • User-Friendly Controls: The control interface features a start/stop pushbutton system, using green for start and red for stop/reset, ensuring user-friendly and efficient operation.

    • Adaptable Voltage Range: The starter accommodates a broad voltage range, supporting different motor power requirements, adding to its versatility across various applications.

    • Wide Operating Temperature Range: With a wide operating temperature range of -5 to 40 degrees Celsius, this starter ensures reliable performance in diverse environmental conditions.

    • Compact and Space-Efficient Design: The compact design of the starter allows for easy integration into various setups, providing efficient and space-saving motor control.

    FAQ:

    Q: How does the overload relay enhance motor protection in this DOL starter?
    A: The overload relay collaborates with the starter to deliver comprehensive motor protection against overload conditions, contributing to the overall reliability of the system.

    Q: Can the starter be operated remotely?
    A: Yes, the starter offers multiple resetting methods, including remote operation, providing flexibility in control and management.

    Q: Is the starter suitable for harsh environmental conditions?
    A: Absolutely. The polycarbonate enclosure and robust design make the starter resilient against water, dust, and mechanical impact, ensuring reliable performance in challenging environments.

    Upgrade your motor control system with the Schneider Electric LE1M35N714 TeSys Enclosed DOL Starter, where advanced motor protection meets user-friendly operation. With a robust design and versatile features, this starter is engineered to elevate your motor control experience.

    (LE1M35N714)

    Warranty

    Warranty starts from Invoice Date

    Domestic Use: 18 Months
    Commercial Use: 18 Months
    Warranty Method: Return to Sparky Direct

    Features
    Specifications Details
    Range TeSys
    Product or component type Enclosed DOL starter
    Device application Standard
    Utilisation category AC-3
    Device composition Contactor
    Earth terminal
    Neutral terminal
    Thermal overload relay
    Thermal protection adjustment range 5.5…8 A
    Motor power kW 1.1 kW at 240 V AC 50/60 Hz
    3 kW at 415 V AC 50/60 Hz
    1.5 kW at 220/230 V AC 50/60 Hz
    3 kW at 380/400 V AC 50/60 Hz
    [Uc] control circuit voltage 415 V AC 50/60 Hz
    Control type Push-button start green I
    Push-button stop/reset red O
    Complementary
    Local signalling Operating: LED (yellow)
    Cable entry number 2 ISO20 top
    2 ISO25 top
    2 Pg 13 top
    2 Pg 21 top
    2 ISO20 bottom
    2 ISO25 bottom
    2 Pg 13 bottom
    2 Pg 21 bottom
    2 Pg 16 top
    2 Pg 16 bottom
    Width 78 mm
    Height 160 mm
    Depth 108 mm
    Net weight 0.6 kg
    General
    Material ABS (acrylonitrile-butadiene-styrene)
    IP degree of protection IP65 conforming to IEC 60529
    Standards IEC 60947-4-1
    Ambient air temperature for operation -5…40 °C
    Product certifications UKCA
    Specifications

    These specifications and characteristics outline physical, mechanical, electrical details.

    Brand Clipsal by Schneider Electric
    SKU LE1M35N714
    Barcode # 3389110781205
    Package Weight 0.575kg
    Package Width 0.170m
    Package Height 0.120m
    Package Length 0.085m
    TYPE VALUE
    Type Circuit Protection
    Brand Schneider Electric
    Range TeSys
