Description:

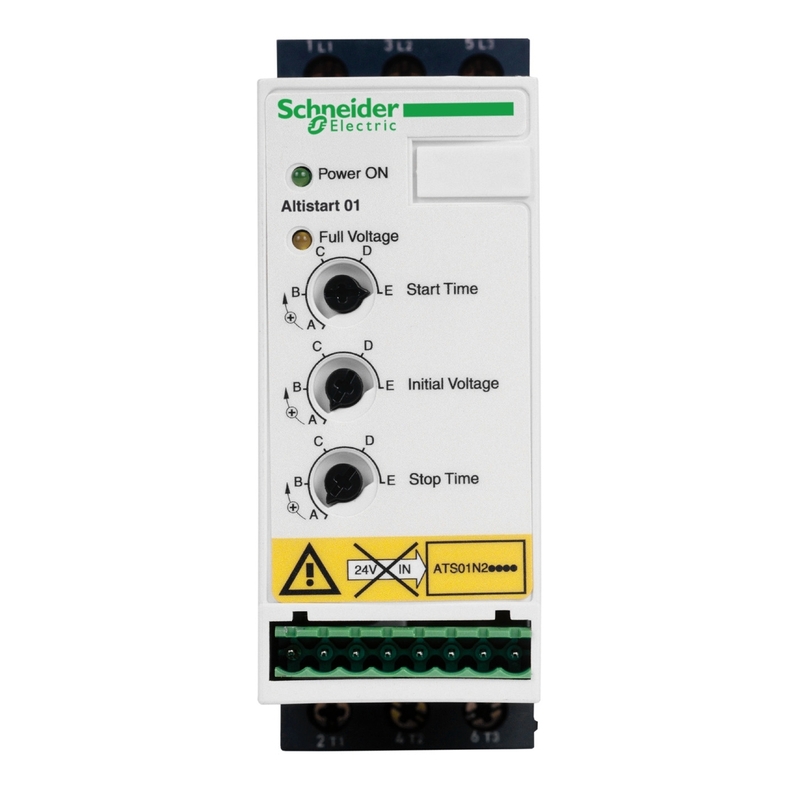

The Schneider Electric ATS01N206QN Altistart Soft Starter is an essential tool for electricians, offering advanced control for 3-phase asynchronous motors with a rating of up to 6A. This soft starter is suitable for a wide range of industrial applications, including conveyors, pumps, fans, compressors, automatic doors, gates, small cranes, and belt-driven machinery.
Designed for motors with rated power up to 3kW for 3-phase (380V to 415V AC), the ATS01N206QN provides a smooth start, effectively minimizing mechanical stress and extending the service life of machinery. Its progressive start feature also limits the starting and stopping noise of motors, reducing auditory discomfort for operators in work environments.
Measuring just 45mm in width, the ATS01N206QN is one of the smallest soft starters on the market, making it easy to install in nearly any location. Its integrated bypass not only reduces noise but also decreases heat dissipation, contributing to a quieter and cooler operation.
The soft starter is designed for simple configuration, requiring only two settings, making it an easy and quick setup process. This feature ensures a hassle-free installation process and reliable operation.
Features:
FAQ:
Q: What types of motors can this soft starter control?
A: It's designed for 3-phase asynchronous motors up to 6A.
Q: Is it easy to install?
A: Yes, its compact size and simple configuration make installation straightforward.
Q: Does it reduce the noise of the motors?
A: Absolutely, it features an integrated bypass that reduces motor noise and heat.
(ATS01N206QN)
Warranty starts from Invoice Date
Domestic Use: 18 Months
Commercial Use: 18 Months
Warranty Method: Return to Sparky Direct
Specifications | Details |
---|---|
Range | Altistart 01 |
Product or component type | Soft Starter |
Device application | Asynchronous motors |
Product Specific Application | Simple machine |
Network Number of Phases | 3 Phase |
[Us] Rated Supply Voltage | 380...415 V - 10...10 % |
Motor Power Kw | 3 kW, 3 phases at 380...415 V 1.5 kW, 3 phases at 380...415 V 2.2 kW, 3 phases at 380...415 V |
Icl Starter Rating | 6 A |
Utilisation category | AC-53B conforming to EN/IEC 60947-4-2 |
Current Consumption | 30 A at nominal load |
Type of Start | Start with voltage ramp |
Power Dissipation In W | 64 W in transient state 4 W at full load and at end of starting |
Complementary | |
Assembly Style | With heat sink |
Function Available | Integrated bypass |
Supply Voltage Limits | 342…456 V |
Supply Frequency | 50...60 Hz - 5...5 % |
Network Frequency | 47.5...63 Hz |
Output Voltage | <= power supply voltage |
[Uc] Control Circuit Voltage | Built into the starter |
Starting Time | 1 s / 100 5 s / 20 10 s / 10 Adjustable from 1 to 10 s |
Deceleration Time Symb | Adjustable from 1 to 10 s |
Starting Torque | 30...80 % of starting torque of motor connected directly on the line supply |
Discrete Input Type | Logic (LI1, LI2, BOOST) stop, run and boost on start-up functions <= 8 mA 27 kOhm |
Discrete Input Voltage | 24...40 V |
Discrete Input Logic | Positive LI1, LI2, BOOST at State 0: < 5 V and 13 V, >= 0.5 mA |
Discrete Output Current | 2 A DC-13 3 A AC-15 |
Discrete Output Type | Open collector logic LO1 end of starting signal Relay outputs R1A, R1C NO |
Discrete Output Voltage | 24 V (voltage limits: 6...30 V) open collector logic |
Minimum Switching Current | 10 mA at 6 V DC for relay outputs |
Maximum Switching Current | Relay outputs: 2 A at 250 V AC cos phi = 0.5 and L/R = 20 ms inductive load Relay outputs: 2 A at 30 V DC cos phi = 0.5 and L/R = 20 ms inductive load |
Display Type | 1 LED (green) for starter powered up 1 LED (yellow) for nominal voltage reached |
Tightening Torque | 0.5 N.m 1.9…2.5 N.m |
Motor Power Range Ac-3 | 1.1…2 kW at 380…440 V 3 phases 2.2…3 kW at 380…440 V 3 phases |
General | |
Standards | EN/IEC 60947-4-2 |
Product Certifications | CSA GOST C-Tick UL CCC B44.1-96/ASME A17.5 for starter wired to the motor delta terminal |
IP Degree Of Protection | IP20 |
Vibration Resistance | 1 gn (f= 13…150 Hz) conforming to EN/IEC 60068-2-6 1.5 mm peak to peak (f= 3…13 Hz) conforming to EN/IEC 60068-2-6 |
Shock Resistance | 15 gn for 11 ms conforming to EN/IEC 60068-2-27 |
Relative Humidity | 5…95 % without condensation or dripping water conforming to EN/IEC 60068-2-3 |
Ambient air temperature for operation | -10…40 °C (without derating) 40…50 °C (with current derating of 2 % per °C) |
Dimensions (Height x Width x Depth) | 124 x 45 x 131 mm |
Weight | 0.42 kg |
These specifications and characteristics outline physical, mechanical, electrical details.
Brand | Clipsal by Schneider Electric |
SKU | ATS01N206QN |
Barcode # | 3389110667202 |
Package Weight | 0.535kg |
Package Width | 0.175m |
Package Height | 0.055m |
Package Length | 0.155m |
TYPE | VALUE |
---|---|
Type | Circuit Protection |
Brand | Schneider Electric |
Range | Altistart 01 |
