Description:

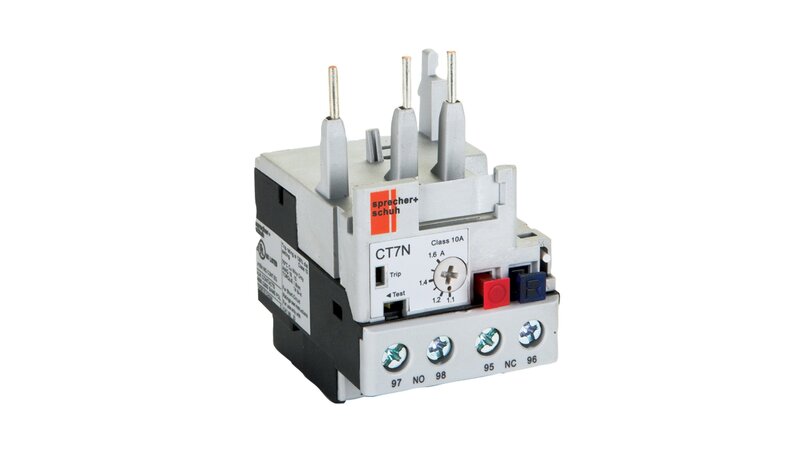

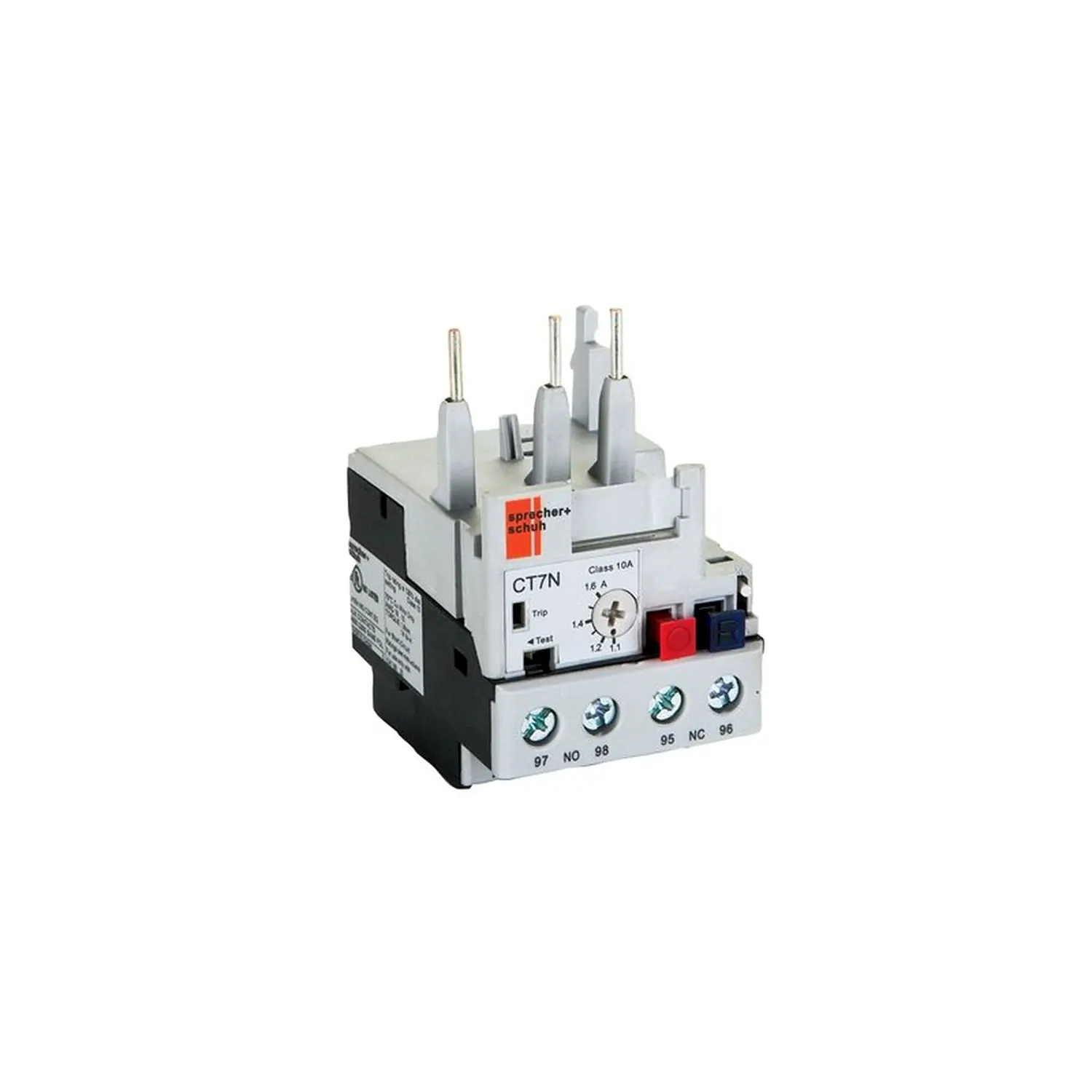

Upgrade your motor protection with the Sprecher+Schuh CT7N-23-C16 Thermal Overload Relay, a powerful solution designed to ensure the safety and longevity of your motors. With consistent and reliable protection, this relay is the perfect addition to your home, offering peace of mind for a variety of applications.
Benefits:
Dependable Motor Protection: The CT7N-23-C16 provides consistent and reliable motor protection, offering peace of mind for the safe operation of your equipment.
Versatile Application: Suitable for use with CA7-12 to CA7-23 Contactors, this relay is designed for various applications, including light industry, conveyors, fans, pumps, VFD-controlled motors, and DC motors.
Selectable Reset Options: Tailor the reset process to your preference with the selectable reset switch, providing flexibility with both manual and automatic reset modes.
Ideal for Single-Phase Conditions: Specifically designed for single-phase applications, the CT7N-23-C16 ensures reliable protection in various motor setups.
Ambient Temperature Compensation: The relay's ambient temperature compensation feature maintains consistent performance over a wide temperature range (-20 to 60 deg C).
FAQ:
Q: What is the voltage rating of the CT7N-23-C16 Thermal Overload Relay?
A: The relay is rated for 690 Volt AC, ensuring robust protection for your motors.
Q: Can it be used for single-phase applications?
A: Yes, the CT7N-23-C16 is designed for single-phase applications, catering to a variety of motor setups.
Q: Is the reset process customizable?
A: Certainly. The CT7N-23-C16 offers a selectable reset switch, allowing users to choose between manual and automatic reset modes.
Q: What applications are ideal for this thermal overload relay?
A: The CT7N-23-C16 is perfect for light industry and low-critical process environments, including conveyors, fans, pumps, VFD-controlled motors, and DC motors.
Elevate your motor protection strategy with the Sprecher+Schuh CT7N-23-C16 Thermal Overload Relay, ensuring your motors operate at their best. Make the smart choice for your home's equipment—choose the CT7N-23-C16.
(CT7N-23-C16)
100-Day Fuss-Free Returns
We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.
If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.
All products come with a manufacturer’s or supplier’s warranty
Damaged or Faulty Goods
If your order arrives damaged or is faulty, let us know within 24 hours.
Contact us via our chat to arrange the return.
Exclusions
We can’t accept returns for:
How to Request a Return
The warranty starts from the Invoice Date.
Domestic Use: 1 Year
Commercial Use: 1 Year
Warranty Method: Return to Sparky Direct
| Specification | Details |
|---|---|
| UNSPSC CLASS | 39122300 |
| UOM | EA |
| CONTACT CONFIGURATION | 1 Normally Opened & 1 Normally Closed |
| CONTROL TYPE | Automatic/Manual |
| FREQUENCY | 50/60 Hz |
| FOR USE WITH | CA7-9 to CA7-23 Contactors |
| MOUNTING METHOD | Direct |
| PLEASE NOTE | 1 Phase |
| OPERATIONAL VOLTAGE | 690 Volt AC |
| SETTING RANGE TO (AMP) | 12.5 |
| PRODUCT TYPE | Contactor Overloads |
| TERMINAL CONNECTION | Screw |
| TIGHTENING TORQUE | 1.5-2.2 N/m |
| TEMPERATURE | -20 to 60 deg C |
| SETTING RANGE FROM (AMP) | 9.0 |
| TRIP CHARACTERISTIC | Class 10A |
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | Sprecher + Schuh |
| SKU | CT7N-23-C16 |
| Barcode # | 10662074718785 |
| Package Weight | 0.140kg |
| Package Width | 0.075m |
| Package Height | 0.050m |
| Package Length | 0.080m |
| TYPE | VALUE |
|---|---|
| Type | Thermal Overload Relay |
| Brand | Sprecher+Schuh |
