        Theben LUXA103-S360-100-12-AP-WH | Ceiling PIR Motion Detector 360° IP54 | White
        $104.72 $95.20 ex. GST
        Description

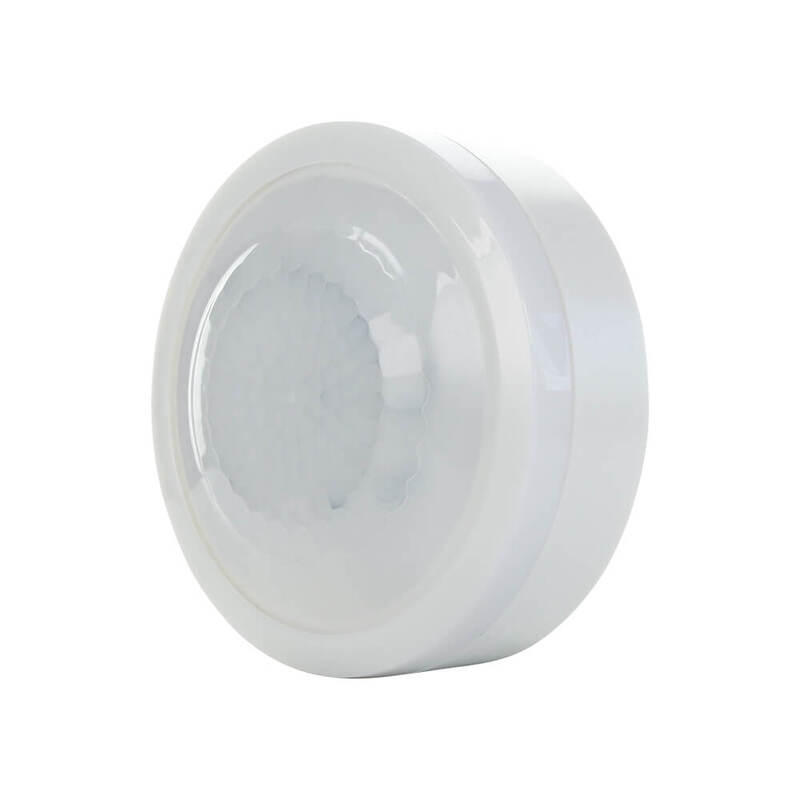

        Theben LUXA103-S360-100-12-AP-WH | Ceiling PIR Motion Detector 360° IP54  | White

        The Theben LUXA103-S360-100-12-AP-WH is a ceiling-mounted PIR motion detector with a 360° detection area. It offers a 12 m diameter detection at a 3 m mounting height.

        This detector supports parallel switching for extended coverage and can connect up to 8 detectors. It networks with the theMura Slave wall detector and allows manual switching via a push-button.

        Operating fully or semi-automatically, it features directional brightness measurement and various functions like teach-in, pulse, and test. Factory presetting ensures immediate use, with possible adjustments via potentiometers or remote controls.

        Suitable for outdoor use, its detection range is reduced to 8 m when installed outdoors. The detection range can also be restricted as needed.

        PIR Motion Detector Features:

        • 360° Detection Area: Provides comprehensive coverage with a circular detection area of Ø 12 m at a 3 m mounting height.
        • Parallel Switching: Extend the detection area by connecting up to 8 detectors in parallel.
        • Manual and Remote Control: Compatible with theMura Slave wall detector and push-button for manual switching; remote control options include theSenda B, theSenda P, and theSenda S.
        • Adjustable Settings: Fully or semi-automatic operation with adjustable brightness measurement and various functions like teach-in, pulse, and test.
        • Ready for Immediate Use: Factory preset for instant operation, with further adjustments available via potentiometers or remote controls.
        • Outdoor Use: Suitable for outdoor applications with reduced detection range (Ø 8 m).

        LUXA103-S360 FAQ:

        Q: What is the detection range of this motion detector?
        A: The detection range is 12 m in diameter indoors and reduces to 8 m when used outdoors.

        Q: Can this motion detector be controlled remotely?
        A: Yes, it can be controlled with optional remote controls like theSenda B, theSenda P, and theSenda S.

        Q: How many detectors can be connected in parallel?
        A: Up to 8 detectors can be connected in parallel to extend the detection area

        (LUXA103-S360-100-12-AP-WH)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Features
        Specification Detail
        Operating Voltage 230 V AC
        Frequency 50 Hz
        Stand-by Consumption ca. 0.5 W
        Light Measurement Mixed light measurement
        Colour White
        Installation Type Ceiling installation
        Setting Range Brightness 5 lx - 1000 lx
        Detection Angle 360°
        Installation Height 2.5 - 3.5 m
        Switching Output Light
        Light Switch-off Delay 15 s - 30 min
        Incandescent/Halogen Lamp Load 2300 W
        Inrush Current Max. 500 A / 200 µs
        LED Lamp 2-8 W 400 W
        LED Lamp > 8 W 400 W
        Lamp Types Incandescent/halogen lamps, fluorescent lamps, energy saving lamps, LEDs
        Detection Range 113 m² (ø 12 m | 360°), Round
        Ambient Temperature -25°C ... 55°C
        Type of Protection IP 54
        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Theben
        SKU LUXA103-S360-100-12-AP-WH
        Barcode # 4003468101759
        Shipping Weight 0.1600kg
        Shipping Width 0.100m
        Shipping Height 0.100m
        Shipping Length 0.050m
        Shipping Cubic 0.000500000m3
        TYPE VALUE
        Type PIR Sensor
        Brand Theben
        Colour White
        Detection angle 360°
        Frequency 50Hz
        Installation Height 2.5 - 3.5 m
        Operating Temperature 230V AC
        Brightness Range 5 lx - 1000 lx
        IP Rating IP54
