        Theben THELUXA-S360-WH | Outdoor Wall PIR Motion Detector 360° IP66 | White
        $96.25 $87.50 ex. GST

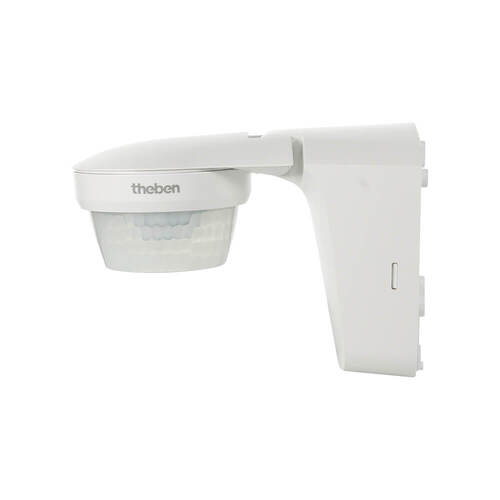

        Theben THELUXA-S360-WH | Outdoor Wall PIR Motion Detector 360° IP66 | White

        The Theben THELUXA-S360-WH is an advanced outdoor PIR motion detector for wall and ceiling installations. With a comprehensive 360° detection angle, this device ensures complete coverage of your outdoor areas. The adjustable sensor head allows for precise positioning, and the detector is equipped with features such as adjustable brightness, switch-off delay, and sensitivity settings.

        It supports various lamp types, including fluorescent, incandescent, halogen, and LEDs, making it versatile for most lighting. The robust IP66 rating ensures durability against harsh weather conditions, while the easy installation process makes it a convenient choice for homeowners looking to enhance their security.

        360° PIR Motion Detector Features:

        • 360° Detection Angle: Provides complete coverage for optimal security.
        • Adjustable Sensor Head: The sensor head can be turned ± 90° horizontally, 45° downwards, and 90° upwards for precise detection.
        • Customizable Settings: Adjustable brightness (5 lx - 1000 lx) and switch-off delay (1s - 20 mins) to suit different needs.
        • Sensitivity Adjustment: Sensitivity can be reduced to limit the detection area, with area limit via lens attachment.
        • Mixed Light Measurement: Suitable for controlling fluorescent, incandescent, halogen lamps, and LEDs.
        • Zero-Cross Switching: Extends relay life and supports high lamp loads.
        • Ease of Installation: Single-handed plug-in installation on a flush-mounted socket (60mm) with instant start-up via factory presets.
        • Energy Efficient: Low stand-by consumption of ~0.5W.
        • Robust Design: IP66 protection against dust and water and operation in temperatures from -25°C to 45°C.

        THELUXA-S360-WH FAQ:

        Q: What applications is the THELUXA-S360-WH suitable for?
        A: It is ideal for outdoor security in residential areas, ensuring complete coverage of spaces such as gardens, driveways, and patios.

        Q: How does the sensitivity adjustment feature work?
        A: Sensitivity can be reduced to limit the detection area, and you can use the lens attachment to define the area of detection further.

        Q: What types of lamps can this motion detector control?
        A: It is compatible with incandescent, halogen, fluorescent lamps, energy-saving lamps, and LEDs.

        Q: Is the THELUXA-S360-WH weatherproof?
        A: Yes, it has an IP66 rating, providing excellent protection against dust and water, making it suitable for outdoor use in various weather conditions.



        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Specification Detail
        Operating Voltage 230 V AC
        Frequency 50 Hz
        Stand-by Consumption ~0.5 W
        Light Measurement Mixed light measurement
        Number of Channels 1
        Colour White (similar RAL 9010)
        Switching Output Light
        Installation Type Wall and ceiling installation, Outdoor
        Setting Range Brightness 5 lx - 1000 lx
        Switching Capacity 10 A at 230 V AC, cos φ = 1, 6 A at 230 V AC, cos φ = 0.6, 3 AX at 230 V AC, cos φ = 0.3
        Detection Angle 360°
        Installation Height 2 - 4 m
        Light Switch-off Delay 1 s - 20 min
        Incandescent/Halogen Lamp Load 2300 W
        Fluorescent Lamp Load (Conventional, Not Corrected) 2300 VA
        Fluorescent Lamp Load (Conventional, Parallel-Corrected) 1200 VA 120 µF
        Fluorescent Lamp Load (Conventional, Series-Corrected) 2300 VA
        Fluorescent Lamp Load (Electronic Ballast) 1000 W
        Energy Saving Lamps 250 W
        Inrush Current Max. 300 A / 200 µs
        LED Lamp < 2 W 50 W
        LED Lamp 2-8 W 500 W
        LED Lamp > 8 W 500 W
        Lamp Types Incandescent/halogen lamps, fluorescent lamps, energy-saving lamps, LEDs
        Detection Range Round
        Ambient Temperature -25°C ... 45°C
        Protection Class II
        Type of Protection IP 66

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Theben
        SKU THELUXA-S360-WH
        Barcode # 4003468100264
        Shipping Weight 0.3300kg
        Shipping Width 0.150m
        Shipping Height 0.105m
        Shipping Length 0.090m
        Shipping Cubic 0.001417500m3
        TYPE VALUE
        Type PIR Sensor
        Brand Theben
        Colour White
        Detection angle 360°
        Frequency 50Hz
        Installation Height 2 - 4m
        Operating Temperature 230V AC
        Brightness Range 5 lx - 1000 lx
        IP Rating IP66
