Learn more by watching our Trader Hippo HPISWL363 | Three Pole 63Amp Weatherproof Isolator | IP66 video.

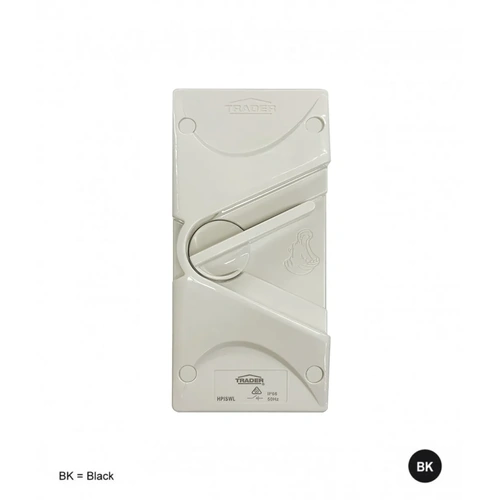

The Trader Hippo HPISWL363 is a tough, high-capacity 63A 3-pole isolator designed for secure disconnection in demanding residential, commercial, and industrial applications.
Rated at 440V AC and built with a full IP66 weatherproof enclosure, it offers complete protection against dust and high-pressure water — ideal for outdoor and harsh indoor environments.
Tested to AS/NZS3133 and AS/NZS IEC60947-3 standards, the HPISWL363 features combination head terminal screws, large 25mm² cable capacity, and twin 25mm threaded entries top and bottom for fast, flexible installations.
The UV-stabilised grey housing resists fading and cracking, and a built-in padlock facility allows for secure lock-off during maintenance.
Installation must be carried out by a licensed electrician to comply with safety and regulatory requirements.
Q: What is the current and voltage rating of the HPISWL363?
A: It is rated at 63 Amps and 440V AC, suitable for heavy-duty applications.
Q: Can this isolator be installed outdoors?
A: Yes, with its IP66 rating, it’s ideal for outdoor and harsh indoor environments.
Q: Does the unit allow for locking during maintenance?
A: Yes, it includes a padlock facility to securely isolate circuits when needed.
(HPISWL363)
100-Day Fuss-Free Returns
We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.
If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.
All products come with a manufacturer’s or supplier’s warranty
Damaged or Faulty Goods
If your order arrives damaged or is faulty, let us know within 24 hours.
Contact us via our chat to arrange the return.
Exclusions
We can’t accept returns for:
How to Request a Return
Warranty starts from Invoice Date
Warranty Period: 10 Year Trader Warranty
Warranty Method: Return to Sparky Direct
Specification | Details |
---|---|
Catalogue Number | HPISWL363 |
Description | Isolator Switch Weatherproof IP66 63A 440V AC 3 Pole Large Grey |
Rated Operational Voltage (Ue) | 440V AC |
Rated Insulation Voltage (Ui) | 690V AC |
Rated Thermal Current (Ith) | 63A |
Rated Short Time Withstand (Icw) | 1.26kA for 1s |
Rated Impulse Withstand Voltage (Uimp) | 4.0kV |
Rated Short Circuit Making Capacity (Icm) | 1.789kA |
Motor Rating (AS/NZS3133) | M180 |
AC21A (440V) Current Rating | 63A |
AC21A Operational Power | 41.0kW (54.9HP) |
AC22A Operational Power | 34.5kW (46.2HP) |
AC23A Operational Power | 28.0kW (37.6HP) |
Rated Duty | Uninterrupted |
IP Rating | IP66 |
Terminal Torque (Recommended) | 2.5 Nm |
Cover Screw Torque (Recommended) | 0.6 Nm |
Earth/Neutral Terminal Torque (Recommended) | 2.0 Nm |
Minimum Conductor Size | 2.5 mm² |
Maximum Conductor Size | 25 mm² |
Terminal Bore | 7.6 mm diameter suits 25 mm² |
Earth/Neutral Terminal Bore | 6.3 mm diameter suits 16 mm² |
Pollution Degree | 2 |
Lock-off Padlock Size | 8.0 mm Padlock Staple |
Certification Number | GMA-516781 |
These specifications and characteristics outline physical, mechanical, electrical details.
Brand | Trader |
SKU | HPISWL363 |
Barcode # | 9349703007581 |
TYPE | VALUE |
---|---|
Brand | Trader |
Range | Hippo |
Colour | Resistant Grey |
Rated Current (A) | 63 |
Height (mm) | 176mm |
Width (mm) | 79mm |
Depth (mm) | 86mm |
Complete / Skin Only / Grid Plate Only | Complete |
Number of Switches / Gangs | 1 |
Protection | IP66 |
Number of Poles | 3 |
Conduit Entries | 2 x 25mm Threaded |
