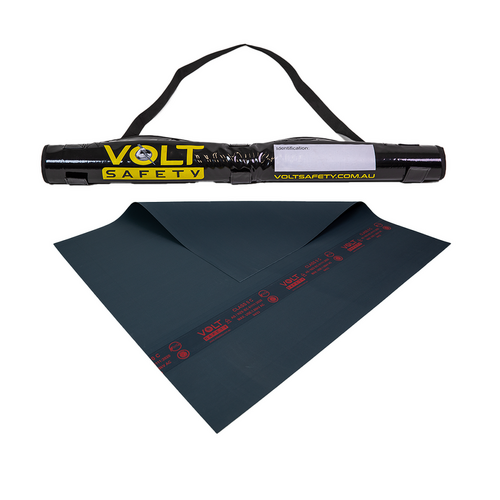

Volt Safety | Insulated Mat Kit Class 0 1000V | 1m x 1m EPDM Rubber
The Volt Safety MAT0-K is an insulated electrical safety mat kit rated Class 0 1000V, built to isolate an operator from ground potential during work on or near live equipment. The MAT0-K measures 1m x 1m, is 2.2mm thick, and is made from grey EPDM rubber with an anti-slip finish on both sides. It complies with AS/NZS IEC 61111, the standard for electrical insulating matting.
Electricians working on energised equipment need to break the path to earth that a conductive floor provides. A concrete slab, steel mezzanine, or damp switch room makes the operator a conductive route to ground potential. The MAT0-K puts a Class 0 1000V insulating barrier underfoot, with an anti-slip finish on both sides so it holds position on smooth concrete. The kit rolls into its own carry bag, so it moves between the van, the switchboard, and the next site without picking up grit or damage.
Licensed electricians specify an insulated mat as standard equipment for switchboard and commissioning work, where standing on a mat rated to 1000V forms part of a documented safe system of work. The EPDM rubber stays flexible and resists ozone cracking, so the mat does not go brittle in a hot van or a cold plant room. At 3.5kg per metre it rolls up small and travels light, and the bag keeps it clean between jobs.
Features
- Class 0 1000V rating — insulates the operator to 1000V for work on and around low-voltage equipment.
- Dual anti-slip finish — textured on both faces so the mat grips the floor and holds underfoot on smooth concrete or steel.
- EPDM rubber construction — flexible and resistant to ozone cracking, ageing, and light, so the mat holds its properties over years of use.
- 2.2mm thickness — thin enough to lie flat and roll tight, thick enough to carry the Class 0 insulation rating.
- 1m x 1m working area — gives an operator room to stand clear of earth at a switchboard or test bench.
- Lightweight at 3.5kg per metre — the MAT0-K rolls up and carries on a shoulder strap between jobs.
- Roll-up carry bag included — a non-conductive heavy-duty PVC bag with a strong strap protects the mat in transit and storage.
- Permanent surface markings — moulded markings stay legible so the mat class and rating can be checked on site.
- AS/NZS IEC 61111 compliant — meets the current Australian and New Zealand standard for electrical insulating matting.
- Grey mat, black bag — the grey EPDM mat pairs with the black PVC roll-up bag as a ready-to-use kit.
- Not a standalone safe system — the MAT0-K lowers earth-path risk but does not replace isolation, testing for dead, and correct PPE.
- Kit format — supplied as a mat and matching carry bag, with no assembly needed before use.
Where to use
- Switchboard work — stand on the MAT0-K at distribution boards and switchboards to break the path to earth through the floor.
- Test benches — an insulating floor mat for a workshop bench where technicians handle energised equipment.
- Plant and switch rooms — portable insulation for substations, plant rooms, and switch rooms with conductive or damp floors.
- Field testing and commissioning — rolls out on site for commissioning and fault-finding, then packs back into its bag.
- Training and apprentice areas — a defined insulated space for supervised work on and around live equipment.
- Van and workshop storage — the MAT0-K travels rolled in its bag, ready for the next call-out.
The Volt Safety MAT0-K is rated Class 0 1000V and is not suitable for high-voltage work above that class rating. It is a personal insulating mat, not a general floor covering, and should be inspected before each use and kept clear of oils, solvents, and sharp objects that damage the rubber. Do not use a mat that shows cuts, cracks, or embedded debris.
