Learn more by watching our Wago 207-1432Single | Gelbox Size 2 For 6mm² Wago 221 | Single Buy video.

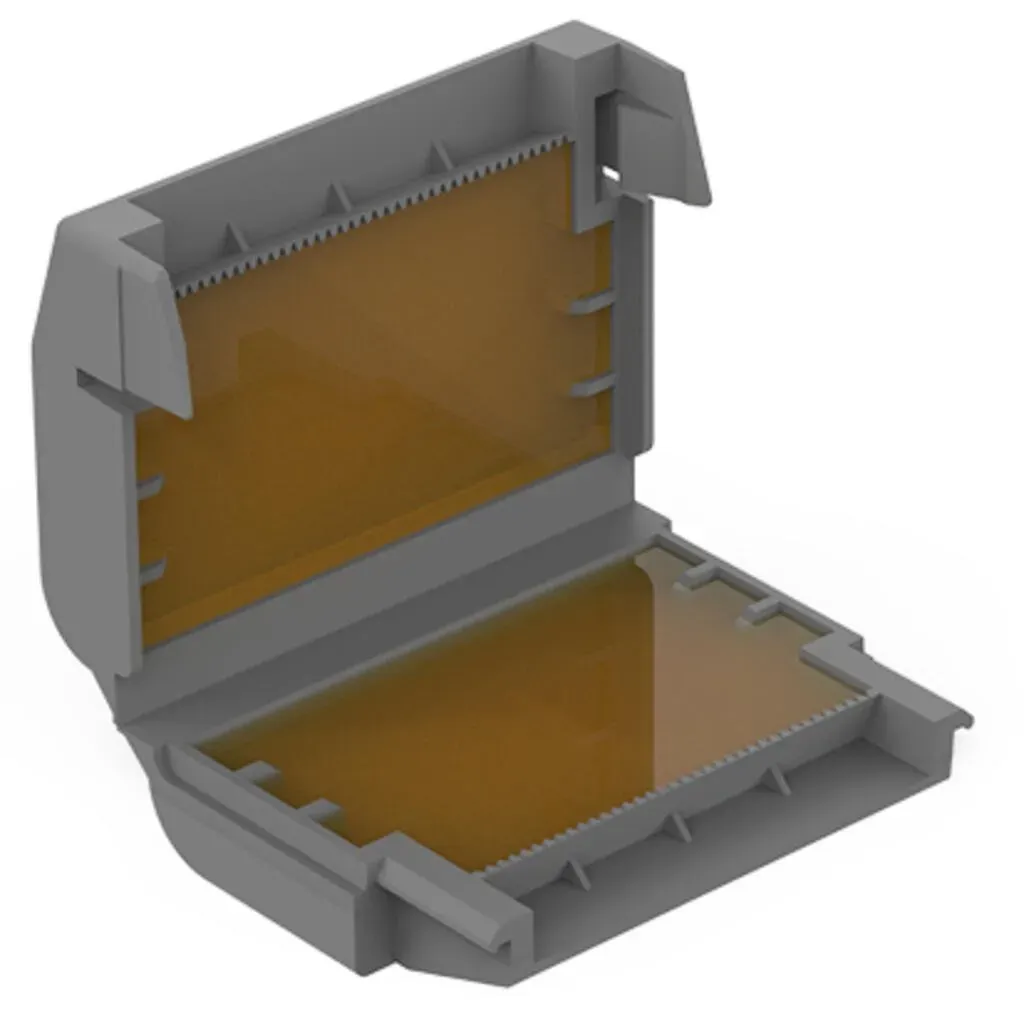

The Wago 207-1432Single is a gelbox for a 221 Series splicing connector rated to 6mm². It is a grey, gel-filled enclosure that seals a made-up joint against moisture ingress in damp positions. The 207-1432Single measures 49.4mm by 21.3mm by 40.1mm and is supplied without splicing connectors.
A splicing connector on its own carries no seal, so a joint sitting in a damp position is exposed. The 207-1432Single encloses the made-up connector in gel that seals around the conductors. The complete system of gelbox and splicing connector is VDE-tested and IPX8-certified, rather than the box alone.
The gelbox opens and closes on a side latch locking system, so the joint is made up first and enclosed after. It is re-accessible: the box opens, the gel comes out, and the joint is rewired with new components. Ambient operating range runs from -55 to +85 degrees C.
The 207-1432Single is supplied without splicing connectors, so a 221 Series connector must be bought separately. Storage temperature range is 0 to +40 degrees C, which is narrower than the operating range. Once the gel is removed the joint has to be rewired with new components.
(207-1432Single)
Yes. Just snap the housing shut around the connector - no special tools or messy sealants are needed.
You can open the Gelbox for inspection, but once the gel is disturbed the unit must be replaced.
Absolutely. Its IPX8 waterproof rating means it performs well in outdoor, bathroom, and irrigation setups.
Yes. Wago doesn’t supply gel-only refills, so the complete Gelbox must be replaced.
Yes. It’s tested to perform reliably in both very cold and hot conditions.
It’s designed for Wago 221 connectors up to 6 mm². Other connectors may not fit properly.
100-Day Fuss-Free Returns
We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.
If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.
All products come with a manufacturer’s or supplier’s warranty
Damaged or Faulty Goods
If your order arrives damaged or is faulty, let us know within 24 hours.
Contact us via our chat to arrange the return.
Exclusions
We can’t accept returns for:
How to Request a Return
Warranty starts from Invoice Date
Domestic Use: 1 Year
Commercial Use: 1 Year
Warranty Method: Return to Sparky Direct
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | Wago |
| SKU | 207-1432Single |
| Model # | 207-1432 |
| Package Weight | 0.026kg |
| TYPE | VALUE |
|---|---|
| Type | Gelbox |
| Brand | Wago |
| Colour | Grey |
| Height (mm) | 21.3 |
| Width (mm) | 49.4 |
| Depth (mm) | 40.1 |
| Mounting | Flying leads |
| Quantity | 1 |
| Design | Size 2 |
| Weight (g) | 25.5 |
| Housing material | Polypropylene |
| Protection type | IPX8 |
