What is Clipsal Easy56?
Clipsal Easy56 is an industrial switchgear range providing reliable, value-for-money power solutions for commercial and industrial applications across Australia. Easy56 offers current ratings from 10A to 32A, IP66 protection, UV resistance, and operates over a temperature range from -25C to 75C. The range includes switches, plugs, socket outlets, appliance inlets, and extension sockets with transparent housings, double padlocking facilities, and permanent laser-etched markings, suitable for harsh indoor and outdoor environments.
Table of Contents
- Why Electricians Choose Easy56
- Four Main Product Categories
- Key Features & Technical Specifications
- Installation Requirements & Guidelines
- Where to Use Easy56 Products
- Complete Product Range & Pricing
- Easy56 vs Standard 56 Series
- See Easy56 in Action
- Tradies Join Club Clipsal
- What Our Customers Say
- Quick Summary
Common Questions About Clipsal Easy56
Why choose Easy56 over standard industrial switchgear?
Easy56 delivers premium engineering at value pricing, designed by the same team that created the legendary PDL 56 Series. You get IP66 protection, UV resistance, and an operating range of -25C to 75C at a lower cost than premium alternatives. The transparent plug bodies and pin surrounds let you verify connections at a glance, whilst double-padlocking facilities and permanent laser markings provide security and durability. For electricians who need reliable industrial switchgear without premium pricing, Easy56 offers exceptional value.
What product types are available in the Easy56 range?
The range includes four main categories: straight plugs (3-pin and 5-pin configurations from 10A to 32A), switched socket outlets (surface-mounted with hinged flaps), appliance inlets (for fixed equipment connections), and extension sockets (cord-mounted for portable applications). All products feature screw terminals, IP66 protection, and transparent bodies for easy inspection. Two, three, and four-gang modular enclosures are available for customised installations.
Is Easy56 suitable for outdoor conditions in Australia?
Yes. Easy56 is specifically designed for harsh Australian environments with an IP66 rating for dust and water protection, UV resistance for direct sunlight exposure, and an operating temperature range of -25C to 75C. The hinged socket flaps automatically lock when plugs are removed, maintaining IP66 integrity even in hosedown environments. PVC enclosures can be solvent-bonded to standard electrical conduit accessories, making outdoor installations straightforward and reliable.
Do Easy56 products meet Australian electrical standards?
All Easy56 products comply with relevant Australian and New Zealand standards, including AS/NZS 3112 (plugs), AS/NZS 3120 (socket outlets), AS/NZS 3133 (switches), and AS/NZS 60320.1 (appliance inlets). IP66 rating is tested to AS 60529. Pin configurations follow AS/NZS 3123 requirements. All permanent electrical installations using Easy56 must be completed by licensed electricians in accordance with AS/NZS 3000:2018 wiring rules.
Key Features & Technical Specifications
Technical Specifications
Why These Specs Matter
The IP66 rating means complete dust protection and protection against high-pressure water jets from any direction, making it suitable for hosedown environments. The -25C to 75C range covers Australian conditions from cold rooms to direct summer sun exposure. UV resistance prevents brittle degradation in outdoor installations. The screw terminal design with captive stainless steel screws prevents loss and corrosion. Transparent housings on plugs let electricians verify correct wiring and pin configuration without disassembly.
The current rating range of 10A to 32A covers most commercial and industrial applications, from lighting circuits to heavy-duty machinery. Pin configurations that comply with AS/NZS 3123 ensure compatibility with standard Australian industrial equipment. The ability to handle cables up to 16mm² accommodates high-current installations without difficulty.
Four Product Categories Explained

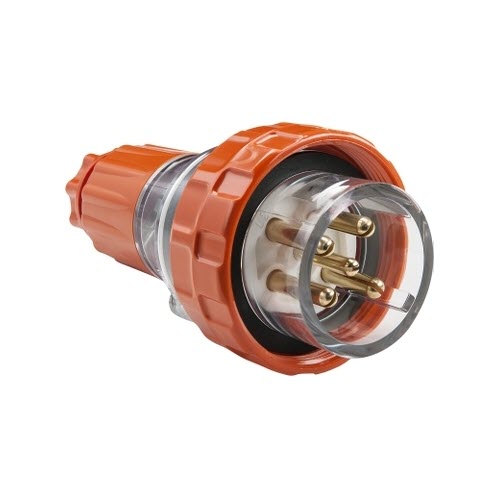

Straight Plugs
For Portable Equipment Connection
Transparent polycarbonate body allows visual inspection of cable connections and pin configuration. The wide lock ring tightens easily, even with gloved hands. Integral sponge gasket provides positive IP66 sealing. Cable gland entry suits cable diameters from 6.8mm to 10.6mm. Orange colour (RAL 2004) for high visibility. Available in 3-pin, 4-pin, and 5-pin configurations from 10A to 32A.

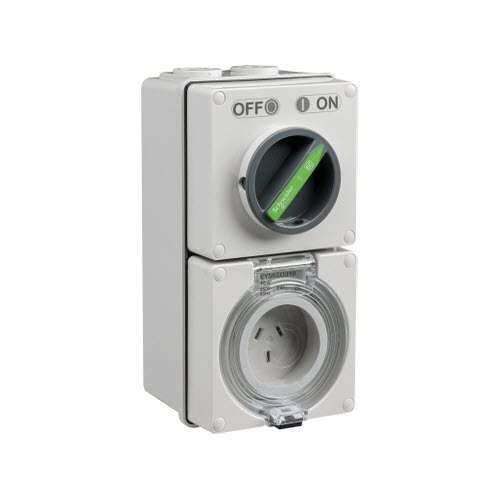

Switched Socket Outlets
For Fixed Installation Points
Surface-mounted design with a separate back box for rear cable entry. Transparent hinged flap shows pin configuration and automatically locks to maintain IP66 rating. Captive stainless steel combination head screws resist corrosion. Double-padlocking facility on switch for lockout/tagout safety. Permanent laser-etched ON/OFF markings will not fade or wear off. Suits 2-gang, 3-gang, and 4-gang modular enclosures.
Appliance Inlets
For Fixed Equipment Connection
Designed for permanent connection to fixed appliances and machinery. Surface-mounted installation on equipment panels or enclosures. Screw terminal connections accept rigid or stranded cable. Grey colour (RAL 7035) for a professional appearance. Complies with AS/NZS 60320.1 appliance coupler standards. Mates with Easy56 extension socket connectors. Rated IP66 when correctly installed.

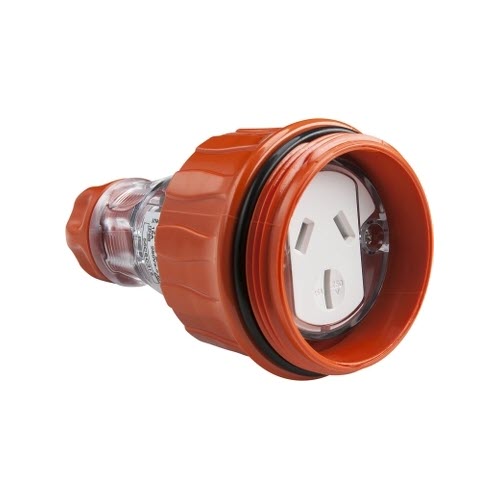

Extension Sockets
For Cord-Mounted Applications
Cord extension sockets for creating custom-length extension leads. Transparent body shows internal wiring for inspection. Cable gland entry with a suitable range for common cable sizes. Screw terminals provide a secure connection. Orange colour matches the Easy56 plug range. Useful for workshop applications, temporary installations, and equipment servicing. Must be assembled by a licensed electrician.
Installation Requirements & Guidelines
Easy56 installation requires screw terminal connections, appropriate cable sizing for current rating, correct IP66 sealing practices, and must be completed by licensed electricians in accordance with AS/NZS 3000:2018.
Installation Best Practices
Cable Selection and Preparation
Select cable size according to current rating and length of run per AS/NZS 3008.1. For 10A circuits, use a minimum 1.5mm² cable. For 15A-20A circuits, use 2.5mm² cable. For 32A circuits, use a minimum 6mm² cable. Strip the cable sheath to expose conductors without damaging insulation. Strip individual conductors 10-12mm for plugs, 10mm for appliance inlets. Ensure no stray strands that could cause short circuits.
Plug and Socket Connection
For plugs, remove the cable gland nut and gasket. Thread the cable through the gland components in the correct order. Connect conductors to terminals observing correct polarity (Active, Neutral, Earth). Tighten terminal screws firmly, but avoid overtightening, which can damage threads. Position the cable seal correctly and tighten the lock ring until the gasket compresses evenly. The transparent body allows visual verification that all connections are secure with no exposed copper.
Socket Outlet Installation
Mount the back box securely to the wall or in a modular enclosure using appropriate fixings. Use conduit entries or cable cut-outs as required, ensuring IP66 sealing with appropriate glands or plugs. Connect supply cables to socket terminals, ensuring correct polarity. For switched sockets, connect the Active through the switch terminal. Tighten all terminals securely. Fit the socket front-to-back box, ensuring the gasket seats correctly. Secure with captive stainless steel screws, tightening evenly to compress the gasket.
IP66 Integrity Maintenance
IP66 rating depends on correct installation practices. All unused conduit entries must be sealed with appropriate plugs. Cable glands must be tightened to compress gaskets properly. Socket flaps must close and latch correctly. Cover screws should be tightened evenly to ensure even gasket compression. In outdoor applications, mount sockets with outlets facing downward where possible to prevent water pooling. Regular inspection ensures ongoing protection.
Testing and Commissioning
Before energising, visually inspect all connections through transparent bodies where applicable. Test continuity of Active, Neutral, and Earth conductors. Verify correct polarity using appropriate test equipment. Test insulation resistance to AS/NZS 3017. For switched sockets, verify switch operation and, if fitted, the mechanical interlock. Test RCD protection where installed. Label circuits clearly. Document installation, including cable sizes, protective device ratings, and installation date.
Professional Installation Tip
When installing multiple socket outlets in modular enclosures, pre-wire the internal connections between sockets and switches before mounting the front assemblies. This makes the work easier in confined spaces. Use the double-padlocking facility during commissioning to prevent accidental energisation whilst work is ongoing. The transparent plug bodies are invaluable for training apprentices, as they can see exactly how connections should look when correctly made.
All electrical installation work in Australia must be performed by licensed electricians. Work must comply with AS/NZS 3000:2018 and relevant state electrical safety regulations. Unauthorised electrical work is illegal and dangerous.
Where to Use Easy56 Products
Commercial Applications
Retail and Hospitality
Shopping centres, food courts, and commercial kitchens require switchgear that withstands regular cleaning and hosedown. Easy56's IP66 rating and UV resistance make it suitable for outdoor dining areas. The transparent plugs help maintenance staff verify correct connections when moving equipment. Double-padlocking prevents unauthorised equipment connection.
Office and Light Commercial
Office fit-outs, particularly in older buildings or temporary installations, benefit from Easy56's modular enclosure options. The value pricing suits budget-conscious projects. Permanent laser markings maintain a professional appearance. The range covers lighting circuits (10A) through to power distribution (32A).
Distribution Centres
Warehouses and logistics facilities need reliable power for conveyor systems, loading equipment, and battery charging stations. Easy56 handles dusty environments and temperature extremes. The -25 °C rating is suitable for cold storage areas. Robust construction withstands forklift traffic and general industrial use.
Swimming Centres and Aquatic Facilities
Pool environments demand high IP ratings and corrosion resistance. Easy56's IP66 rating, stainless steel screws, and UV resistance make it suitable for poolside installations. The hinged socket flaps maintain protection even in high-humidity environments. Regular hosedown of the surrounding areas presents no issues.
Industrial Applications
Manufacturing Facilities
Factory floors require switchgear that handles regular machine movements, dusty conditions, and occasional water exposure from cleaning. Easy56 provides cost-effective solutions for powering machinery up to 32A. The transparent plugs speed up troubleshooting when equipment connections need verification.
Food Processing Plants
Food industry applications demand equipment that withstands aggressive cleaning chemicals and regular hosedown. Whilst Easy56 is not chemical-resistant orange, the standard grey range handles neutral cleaning products well. The IP66 rating provides essential water protection. Applications include conveyor drives, processing equipment, and packaging machinery.
Outdoor Industrial Sites
Construction sites, tilt-up buildings during construction, and outdoor storage yards benefit from Easy56's weather protection. UV resistance prevents brittle degradation under direct sunlight. The -25 °C to 75 °C operating range covers Australian extremes. Suitable for temporary site power, lighting towers, and portable equipment connections.
Portable Equipment and Tools
Workshops and trade applications use Easy56 extension leads for power tools, welding equipment, and portable machinery. The transparent plug bodies let users quickly verify correct wiring. Robust construction withstands workshop environments. Available in various current ratings to suit different tool requirements.
Application Selection Guide
10A Products: Lighting circuits, small power tools, office equipment, general-purpose applications.
15A Products: Heavy-duty power tools, commercial kitchen equipment, workshop machinery, medium-load applications.
20A Products: Industrial machinery, air compressors, large power tools, commercial refrigeration, and welding equipment under 20A.
32A Products: Heavy industrial machinery, large compressors, high-power equipment, three-phase distribution (with 4-pin or 5-pin configurations), workshop main feeds.
Complete 56 Series Product Range
Easy56 products are competitively priced depending on their current rating and product type. Sparky Direct stocks all of the best-selling 56 series range for fast Australia-wide delivery, with trade pricing available online every day.
Straight Plugs - 3 Pin Configurations
| Product Code | Description | Pin Type | Current | Voltage |
|---|---|---|---|---|
| EY56P310 | Easy56 Straight Plug | 3 Flat Pin | 10A | 250V |
| EY56P315 | Easy56 Straight Plug | 3 Flat Pin | 15A | 250V |
| EY56P320 | Easy56 Straight Plug | 3 Round Pin | 20A | 250V |
| EY56P332 | Easy56 Straight Plug | 3 Round Pin | 32A | 250V |
Straight Plugs - 5 Pin Configurations
| Product Code | Description | Pin Type | Current | Voltage |
|---|---|---|---|---|
| EY56P510 | Easy56 Straight Plug | 5 Round Pin | 10A | 250V |
| EY56P520 | Easy56 Straight Plug | 5 Round Pin | 20A | 250V |
| EY56P532 | Easy56 Straight Plug | 5 Round Pin | 32A | 250V |
Switched Socket Outlets
| Product Code | Description | Pin Type | Current | Voltage |
|---|---|---|---|---|
| EY56C310 | Easy56 Switched Socket Outlet | 3 Flat Pin | 10A | 250V |
| EY56C315 | Easy56 Switched Socket Outlet | 3 Flat Pin | 15A | 250V |
| EY56C320 | Easy56 Switched Socket Outlet | 3 Round Pin | 20A | 250V |
| EY56C332 | Easy56 Switched Socket Outlet | 3 Round Pin | 32A | 250V |
| EY56SW120 | Easy56 Switch Only | 1 Pole | 20A | 250V |
Appliance Inlets
| Product Code | Description | Pin Type | Current | Voltage |
|---|---|---|---|---|
| EY56AI310 | Easy56 Appliance Inlet | 3 Flat Pin | 10A | 250V |
| EY56AI315 | Easy56 Appliance Inlet | 3 Flat Pin | 15A | 250V |
Extension Sockets (Cord-Mounted)
| Product Code | Description | Pin Type | Current | Voltage |
|---|---|---|---|---|
| EY56CSC310 | Easy56 Extension Socket | 3 Flat Pin | 10A | 250V |
| EY56CSC315 | Easy56 Extension Socket | 3 Flat Pin | 15A | 250V |
Need Help Selecting Products? Our team can recommend the right Easy56 products for your specific application. Contact Sparky Direct for technical advice, Everyday Trade prices, or to discuss your project requirements.
Get Expert AdviceEasy56 vs Standard Clipsal 56 Series
Easy56 delivers similar protection and performance to the standard 56 Series at a more accessible price point, making it ideal for budget-conscious commercial and industrial projects where premium features are not required.
Feature Comparison
| Feature | Easy56 | Standard 56 Series | Notes |
|---|---|---|---|
| IP Rating | IP66 | IP66 | Equal |
| UV Resistance | Yes | Yes | Equal |
| Operating Temperature | -25C to +75C | -25C to +75C | Equal |
| Current Ratings | 10A, 15A, 20A, 32A | 10A to 50A | 56 Series wider range |
| Transparent Housings | Yes (plugs) | Yes (plugs) | Equal |
| Double-Padlocking | Yes | Yes | Equal |
| Permanent Markings | Laser-etched | Laser-etched | Equal |
| Chemical Resistance | Standard only | Orange and White options | 56 Series has more options |
| Price Point | Value pricing | Premium pricing | Easy56 advantage |
| Overall Value | Excellent | Premium quality | Easy56 for value |
When to Choose Easy56
Budget-Conscious Projects
Easy56 offers significant cost savings compared to the premium 56 Series without compromising essential features such as IP66 protection and UV resistance. For projects with tight budgets but requiring industrial-grade switchgear, Easy56 delivers excellent value. The savings on larger installations can be substantial whilst maintaining safety and reliability.
Standard Industrial Environments
Most commercial and industrial applications do not require chemical-resistant materials or current ratings above 32A. Easy56's standard range covers typical workshop machinery, commercial equipment, and general industrial loads. The -25C to +75C temperature range suits most Australian environments without premium product specifications.
Temporary or Short-Term Installations
Construction sites, temporary facilities, and short-term projects benefit from Easy56's lower initial investment. The products provide full IP66 protection for the duration of the project without the premium price of the standard 56 Series. At project completion, the lower replacement cost makes equipment recovery less critical.
Volume Installations
Large facilities requiring multiple socket outlets, switches, and plugs achieve significant savings with Easy56. Distribution centres, manufacturing plants, and commercial developments can specify Easy56 for standard applications whilst reserving the premium 56 Series for specialised areas. The cost difference multiplied across hundreds of units represents meaningful project savings.
When to Choose Standard 56 Series
Chemical environments: Food processing, dairy, pharmaceutical, or other applications requiring Resistant Orange or Resistant White materials.
Higher current ratings: Applications requiring 40A or 50A ratings are not available in the Easy56 range.
Extended product range: When specific configurations, accessories, or modular options are only available in standard 56 Series.
Premium appearance: High-visibility installations where premium brand recognition and appearance matter to clients or facility image.
See Easy56 in Action
Introducing CLIPSAL EY56P310 3 Pin Flat 10 Amp Straight Plug IP66 Easy56
Introducing CLIPSAL EY56C310 EASY56 SWITCHED OUTLET 1PH 10A 3 FLAT PIN 10AMP IP66
Explore the complete Easy56 range, including installation guides, technical specifications, and product comparisons at clipsal.com/products/industrial/easy56
Tradies Join Club Clipsal with Sparky Direct
Club Clipsal is Australia's largest electrician community offering trade rewards, business support, and exclusive benefits. When you nominate Sparky Direct as your preferred wholesaler, we automatically apply your Clipsal spend points to your Club Clipsal account daily.
Four Membership Tiers
Entry-level offering coaching, mentoring, and training discounts
Unlock exclusive industry tools and networking events
Access Toyota fleet offers and business software discounts
Maximum benefits, including VIP experiences and rewards
How It Works
1. Sign Up: Create your Club Clipsal account at clipsal.com/club-clipsal or via the iCat mobile app
2. Nominate Sparky Direct: Select Sparky Direct from the wholesaler dropdown menu in your profile
3. Add Email: Enter your Sparky Direct account email address in the membership number field
4. Start Earning: Every dollar spent on Clipsal products earns points automatically
Exclusive Benefits
Redeem points from the rewards store, including gift cards, tools, and experiences. Access business summits, product training, and industry networking events. Receive early access to new product launches and special promotions. Connect with fellow electricians via the Club Clipsal community app.
What Our Customers Say about the Clipsal Easy56 Series
Good quality, easy to purchase and best of all its cheaper.
Great quality product at the best price i found anywhere and the service is outstanding!
Personally I like the Clipsal brand and appreciate there are other models out there (have used some), however I find these are easier to work with in the installation, and hold up well when placed on equipment and electrical leads that are out in the field daily.
- Industrial switchgear range with IP66 protection, UV resistance, and -25C to 75C operating range
- Current ratings from 10A to 32A in 3-pin, 4-pin, and 5-pin configurations
- Transparent plugs, double-padlocking, permanent laser markings, and stainless steel screws
- Value-priced alternative to the standard 56 Series for budget-conscious commercial and industrial projects
- Suitable for warehouses, factories, retail, hospitality, outdoor sites, and dusty or damp environments
- Australian standards compliant (AS/NZS 3112, 3120, 3123, 3133, 60320.1, 60529)
- Available now at Sparky Direct with competitive pricing and fast Australia-wide delivery
Shop Clipsal Easy56 at Sparky Direct
Complete range in stock - Competitive trade pricing - Fast Australia-wide delivery
Browse Easy56 Products Get Expert AdviceClipsal Easy56 Series Frequently Asked Questions
Buy Clipsal Easy56 series online
You can buy Clipsal 56 Series online at Sparky Direct. Order before 12 noon today and have the products dispatched the same day. Trade prices and fantastic customer service, delivered fast Australia-wide.
Where can I buy easy56 series electrical accessories in Australia?
You can buy genuine Clipsal Easy 56 Series industrial switchgear at Sparky Direct, an online electrical wholesaler. At trade prices, with fast shipping and same-day dispatch Australia-wide.
What is Sparky Direct’s return approach for the Clipsal Easy56 Industrial Switchgear range?
Sparky Direct offers a 100-day Money-back Guarantee and an easy returns process for unused items in original condition. Check their returns page for details.
Can the Clipsal Easy56 Industrial Switchgear range work with older Clipsal setups?
Many units follow long-running dimensions and patterns, but compatibility depends on the exact model. Check each product’s specs.
Are the switches in the Clipsal Easy56 Industrial Switchgear range easy to operate with gloves?
Yes, most have large levers or dials made for gloved operation.
Is the Clipsal Easy56 Industrial Switchgear range safe for damp or wash-down areas?
Many models are built precisely for wet environments, but always check the IP rating to make sure it suits your job
Does the Clipsal Easy56 Industrial Switchgear range sold by Sparky Direct meet common Australian compliance rules?
Clipsal Easy56 Industrial Switchgear products carry RCM marking and are built to meet relevant Australian Standards for industrial control gear. Sparky Direct lists only compliant stock, but check each item’s data sheet for exact standards.
What IP ratings are typical in the Clipsal Easy56 Industrial Switchgear range?
Clipsal Easy56 Industrial Switchgear commonly features high IP ratings (often IP66) for wet or dusty sites. Ratings vary by device, so confirm on the individual product page.
Does the Clipsal Easy56 Industrial Switchgear range support interlocking or isolating functions?
Many Clipsal Easy56 Industrial Switchgear models include interlock systems or built-in isolators. Check the datasheet for load ratings and lockout options.
What wiring space is typical inside Clipsal Easy56 Industrial Switchgear?
These units usually include deep chambers designed for easy cable entry and secure termination. For safety, a licensed electrician must install any mains-powered unit.
Installation guide for easy56 series wall plates.
EASY56 wall plates are simple for a licensed electrician to install, and they’re designed to sit securely and operate safely once fitted.
The mechanism is pre-mounted to the cover. The wiring points are clear, and the plate finishes flush for a clean, reliable result.
Installation Guide (Short Version) Licensed Electricians only.
- Turn off the power at the board.
- Prepare and strip the wires.
- Connect the wires to the marked terminals.
- Check seals and make sure it is water-tight, including any penetrations.
- Install the screw covers into the back plates.
- Screw the plate to the wall.
- Restore power and test the wall plate.
