Pipe Makers | Heavy Duty Rigid Conduit 25mm 4m | Orange PVC

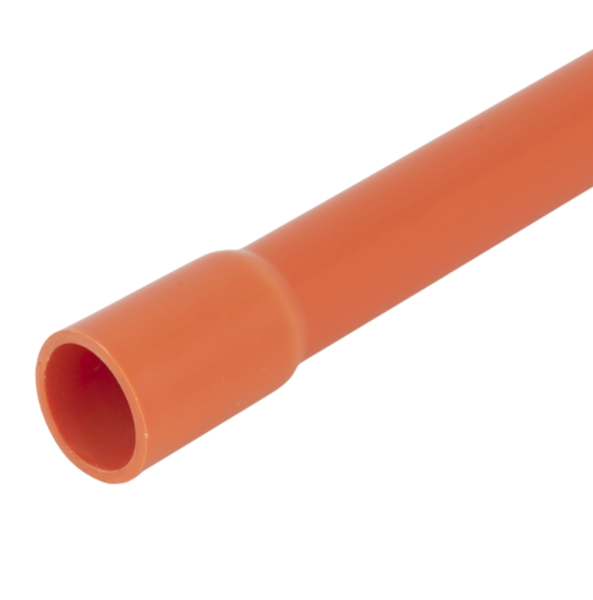

The Pipe Makers RC25HD is a 25mm heavy-duty rigid PVC conduit supplied in a 4-metre length, used to mechanically protect electrical cables run below ground. The RC25HD is orange, the colour used to identify buried electrical conduit, and has a bell socket on one end that joins to 25mm conduit fittings or to another length without a separate coupling. Its heavy-duty wall thickness gives the strength needed for direct burial and protection against ground load.
Underground cable runs face damage from excavation, rock, and settling soil, and a nicked sub-main can mean digging up the whole trench again. Heavy-duty orange conduit gives the cable a rigid barrier that takes the load and the knocks, which is why it goes in on mains, sub-mains, and consumer feeds. The bell socket lets each 4-metre length push into the next, so a long trench run joins up without extra couplings. Orange is the recognised marker for buried electrical, so the next person on the ground knows what is below before a spade goes in.
For a licensed electrician, the RC25HD is a standard trenching item that cuts with a hacksaw and solvent-welds with PVC conduit cement. Bought by the 4-metre length, it keeps installation moving and holds the per-metre cost down on jobs that consume a lot of conduit. The 25mm diameter accepts the standard range of bends, sweeps, and couplings, so a run negotiates obstacles without fabricated fittings. Once glued, saddled, and backfilled, the RC25HD stays put and needs no maintenance across the life of the buried installation.
Features
- Heavy-duty PVC wall — the thicker heavy-duty wall gives the RC25HD the mechanical strength to take ground load and impact during direct burial.
- Orange identification — the orange colour marks the run as buried electrical, warning anyone excavating that live cables sit below.
- Bell socket end — one end is belled to accept a 25mm fitting or the plain end of the next length, joining runs without a separate coupling.
- 4-metre length — each length covers 4 metres of trench, cutting the number of joins on long underground runs.
- 25mm fitting compatibility — the RC25HD accepts standard 25mm conduit bends, sweeps, couplings, and glands stocked on trade shelves.
- Solvent-weld joints — the PVC bonds with standard conduit cement, forming a sealed, rigid joint that resists pull-out in the trench.
- Cuts on site — the conduit trims to length with a hacksaw or conduit cutter, so runs finish to the trench without power tools.
- Underground protection — the conduit shields cables from soil movement, rock, and excavation strikes once buried and backfilled.
- Not UV stabilised — the RC25HD is not UV-protected and turns brittle if left exposed above ground, so exposed sections must be painted.
- Maintenance-free once buried — after backfill, the buried run needs no ongoing maintenance for the life of the installation.
- Warning-tape practice — orange warning tape laid above the conduit gives a second visual cue to stop excavation before a cable strike.
Where to use
- Underground mains and sub-mains — the RC25HD protects buried mains and sub-main cables running between the meter box, pillar, and switchboard.
- Feeds to outbuildings — buried supply cables to sheds, garages, granny flats, and pumps run inside the conduit for mechanical protection.
- Under paths and paving — the heavy-duty wall suits burial beneath paths, paving, and light-traffic ground where cables need load protection.
- Trenched property runs — long cable runs across a block drop into a trench inside 4-metre lengths joined end to end.
- Cable protection in backfill — the RC25HD shields cables from rock, rubble, and settling within a backfilled trench.
- Rises into pits and boards — the conduit carries cables up from the trench into pits, pillars, and the base of enclosures.
- Future draw paths — a buried conduit run leaves a pathway so additional cables can be pulled through later without re-digging.
The RC25HD is not UV stabilised and should not be used for permanent runs above ground, where sunlight makes the PVC brittle over time. Any length that has to rise above ground needs to be painted to protect it from UV. It is built for buried cable protection, not for exposed weather duty.
