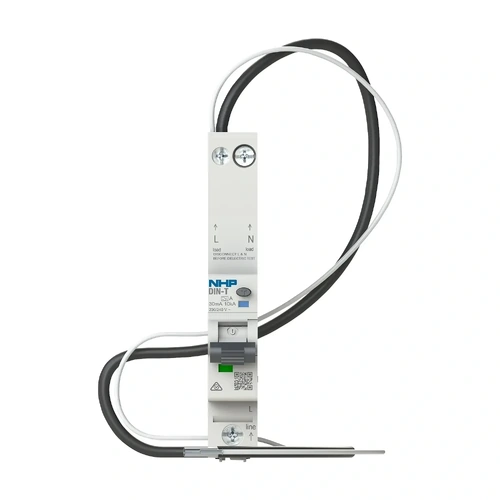

        NHP DTRL1030A | 10A DIN-T RCBO 1P+N 10kA 30mA | Type A

        The NHP DTRL1030A is a 10A, 10kA RCBO engineered for commercial, industrial, and mining applications, offering reliable residual current protection with overload and short-circuit safeguarding. Designed with a longbody format, it provides practical DIN-rail mounting with improved wiring access — ideal for dense switchboards.

        Built with Type A leakage detection, the unit protects against AC and pulsating DC faults with a sensitive 30mA trip threshold. Its C Curve characteristic suits general-purpose circuits, and the pin-type connection ensures a fast, secure install. With a mechanical life of 20,000 cycles and tested for -25°C to 55°C operation, this RCBO is ready for harsh environments.

        NHP DTRL1030A Features

        • 10A, 10kA RCBO with Type A Leakage Protection — Ideal for high-fault circuits requiring residual current protection
        • C Curve Trip Characteristic — Suits general installations with typical inrush currents
        • 30mA Leakage Sensitivity & 240V AC Rated — Provides person and equipment protection on single-phase systems
        • DIN Rail Mounted, 1 Module Wide — Space-saving longbody design for easier access
        • 20,000 Mechanical / 10,000 Electrical Cycles — Built for reliable performance in demanding environments

        DTRL1030A FAQ

        Q: What is the breaking capacity of this RCBO?
        A: It’s rated at 10kA, making it suitable for circuits with high fault current potential.

        Q: Is this RCBO compliant with Australian Standards?
        A: Yes, it complies with AS/NZS 61009 and related standards for electrical safety.

        Q: Can it be used as an isolator?
        A: Yes, the DTRL1030A can also function as a circuit isolator for enhanced protection.

        (DTRL1030A)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Features
        Specification Details
        Model DTRL1030A
        Rated Current 10 A
        Rated Voltage 240 V
        Rated Leakage Current 30 mA
        Frequency 50/60 Hz
        Short Circuit Breaking Capacity 10 kA
        Voltage Type AC
        Trip Curve C
        Impulse Withstand Voltage 4 kV
        Tripping Time 300 ms
        Min. Service Voltage 184 V
        Max. Operating Voltage 264 V
        Residual Make/Break Capacity 10000 A
        Mounting Method DIN Rail
        IP Rating IP40
        Mechanical Life 20000 cycles
        Dimensions (HxWxD) 117 mm × 17.5 mm × 75.8 mm
        Weight 0.2 kg
        Operating Temperature -25°C to 55°C
        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand NHP
        SKU DTRL1030A
        Package Weight 0.235kg
        Package Width 0.037m
        Package Height 0.076m
        Package Length 0.158m
        TYPE VALUE
        Type Circuit Protection
        Brand NHP
        Rated Current (A) 10A
        Voltage Type AC
        IP Rating IP40
        Dimensions (mm) D 75.8mm x H 117mm x W 17.5mm
        Rated Voltage (V) 240V
        Rated Leakage Current 30mA
