Name: Clipsal 31ROFT | Run On Timer | 1A | Selectable
Brand: Clipsal by Schneider Electric
SKU: 31ROFT
Price: 66.00 AUD
Availability: OutOfStock

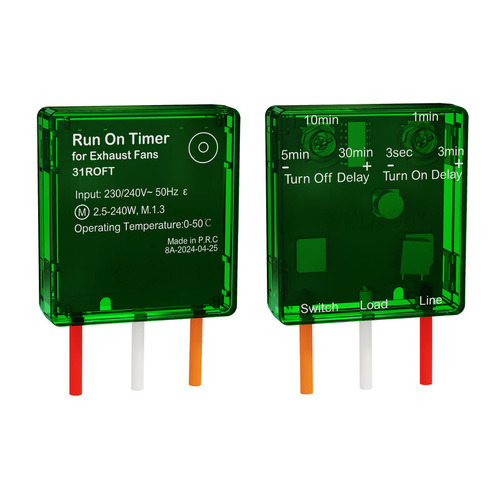

Clipsal 31ROFT | Run On Timer | 1A | Selectable

Clipsal's 31ROFT run-on timer device is designed for applications where a 240V AC input load device is required to operate for a period of time after the circuit has been switched off.

From May 2023, the NCC (National Construction Code) requires exhaust fans to run on for 10 minutes after the light switch is turned off for bathrooms and toilets without windows.
The most suitable application may be washrooms, toilets, or laundries without windows.

For example, a switch operating both a luminaire and exhaust fan together is required to turn the light off while allowing the fan to continue to operate for a specific time before switching off.

Clipsal’s New Run-on Fan Timer – Solution for New NCC Regulations for Exhaust Fans

Features:

Turn Off Delay

5 Minutes

10 Minutes

30 Minutes

Turn on Delay

3 Seconds

1 Minutes

3 Minutes

Technical Parameters:

230/ 240V AC- 50HZ

1 A

Motor 2.5-240W, M 1.3

Operating Temp 0-50 Degrees

IP30

Specification

Details

Voltage

230 / 240V AC - 50Hz

Current

1 A

Motor

2.5-240W, M 1.3

Turn Off Delay

5 Min,
10 Min,
30 Min

Turn On Delay

3 Sec,
1 Min,
3 Min

Operating Temperature

0-50 Degrees Celsius

IP Rating

IP30

TYPE

VALUE

Type

Exhaust Fan

Brand

Clipsal by Schneider Electric

Brand	Clipsal by Schneider Electric
SKU	31ROFT
Barcode #	3606487157816
Shipping Weight	0.1000kg
Shipping Width	0.010m
Shipping Height	0.010m
Shipping Length	0.010m
Shipping Cubic	0.000001000m3
