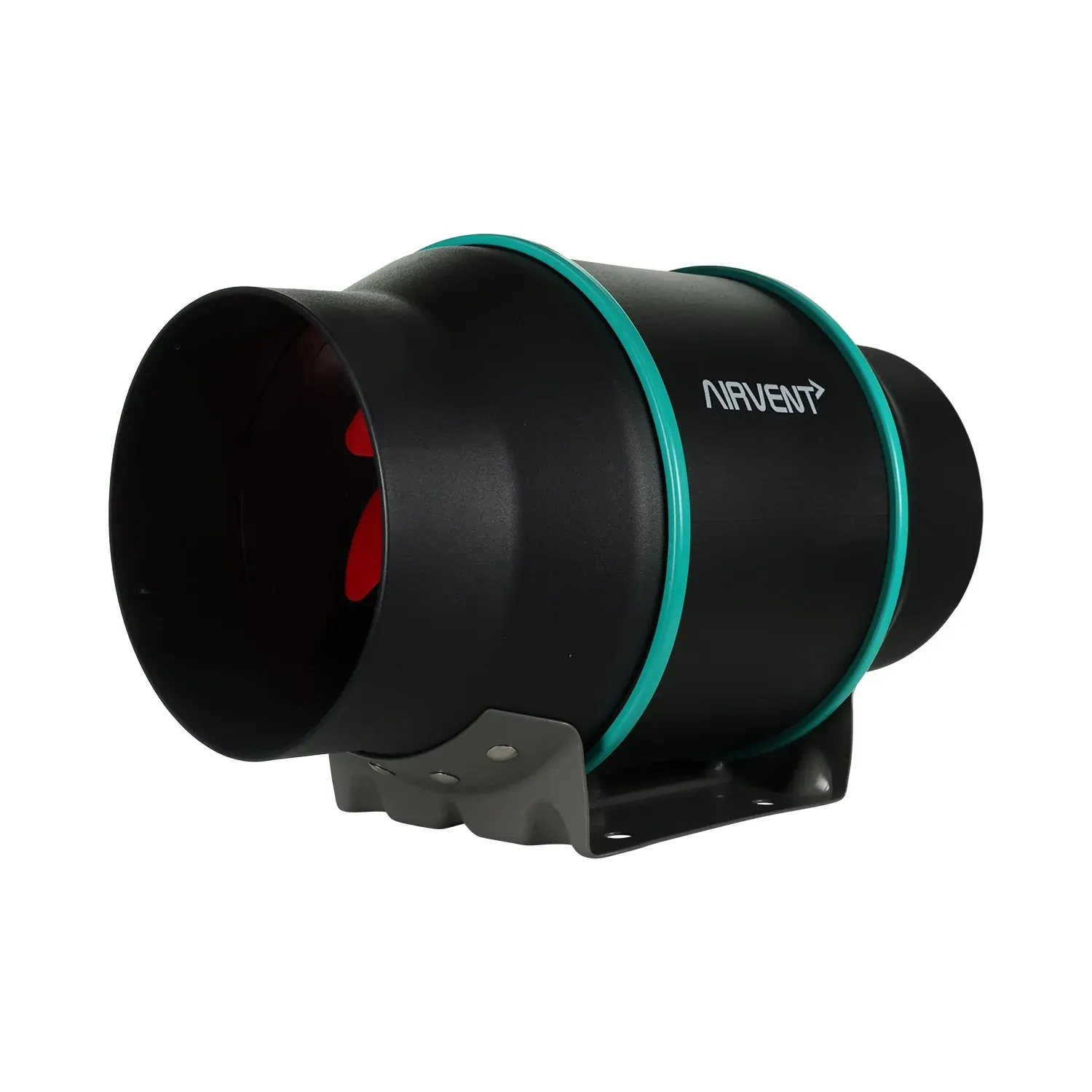

The Airvent ECIF70-150 is a 150mm inline mixed flow fan with an EC motor rated 70W, running on 240V at 0.3A. It is rated at 176 litres per second against 131 Pa of static pressure, turning at 2774 RPM. The ECIF70-150 uses a mixed flow impeller, combining axial and centrifugal characteristics to hold airflow while limiting noise. It arrives with a 1.2 metre lead and a three-pin plug fitted.
An inline fan occupies the ceiling space rather than the ceiling itself, relocating the acoustic source away from the occupied room. The ECIF70-150 is rated at 176 L/s against 131 Pa of static pressure, representing a duty point rather than an unrestricted open-outlet figure. The mixed flow impeller sustains that volume against duct resistance where an axial impeller would stall. Sound pressure measures 43 dBA at the inlet and 44 dBA at the outlet, both at 3 metres.
Speed control operates through an external potentiometer rather than a control incorporated in the fan, so the controller becomes a separate item on the order. Once the grilles and terminal are installed, the fan can be moderated to suit the commissioned system. At 2.3kg the unit remains light enough for structural support without additional provision. Sigrist Design states 2019 and 2022 NCC/BCA Section J compliance.
The ECIF70-150 is an in-duct fan and does not mount at the ceiling or wall face, so ducting, a grille, and a terminal are all required. Speed adjustment needs an external potentiometer, which is not supplied with the fan. A system carrying more resistance than the rated 131 Pa delivers less than 176 L/s, so calculate the run before relying on the duty figure.
(ECIF70-150)
It is used for high airflow ventilation in ducted systems where strong extraction or air movement is needed.
In ceiling spaces or duct runs for larger bathrooms, kitchens or commercial areas.
It delivers higher airflow, making it better for bigger spaces or longer duct runs.
Yes. It has adjustable speed control for balancing and fine tuning.
Yes. It can be used for ongoing airflow in residential or commercial setups.
Yes. Sparky Direct stocks the Airvent ECIF70-150 with fast dispatch and delivery across Australia.
100-Day Fuss-Free Returns
We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.
If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.
All products come with a manufacturer’s or supplier’s warranty
Damaged or Faulty Goods
If your order arrives damaged or is faulty, let us know within 24 hours.
Contact us via our chat to arrange the return.
Exclusions
We can’t accept returns for:
How to Request a Return
Warranty starts from Invoice Date
Domestic Use: 2 Year
Commercial Use: 2 Year
Warranty Method: Return to Sparky Direct
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | Airvent |
| SKU | ECIF70-150 |
| Model # | ECIF70-150 |
| Package Weight | 1.530kg |
| TYPE | VALUE |
|---|---|
| Type | Inline Fan |
| Brand | Airvent |
| Rated Current (A) | 0.3 |
| Height (mm) | 209 |
| Width (mm) | 225 |
| Length (mm) | 315 |
| Mounting | Inline |
| Voltage (V) | 240 |
| Diameter (mm) | 150 |
| Air Flow (m3/h) | 634 |
| Fan Speed (RPM) | 2774 |
| Fan Wattage (W) | 70 |
