Clipsal by Schneider Electric | Iconic Connected Switch Mechanism 10AX with ControlLink | Zigbee, Vivid White

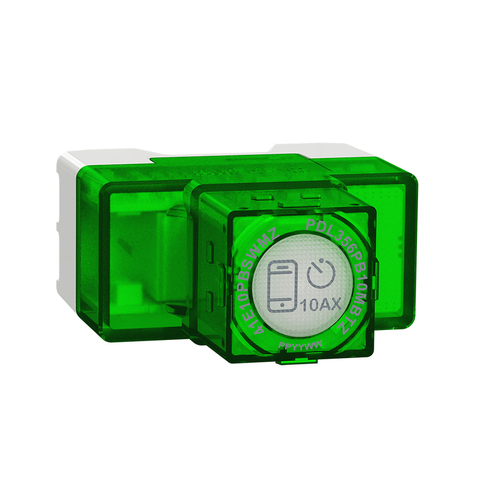

The Clipsal Iconic 41E10PBSWMZ-VW is a Zigbee-enabled connected push-button switch mechanism rated 10AX, built for hard-wired multiway switching through ControlLink. The 41E10PBSWMZ-VW operates on 220 to 240V and runs Zigbee by default, with BLE for setup, so it joins the Wiser by SE system or a standard Zigbee network. It complies with AS/NZS 60669.2.1 and carries an IP20 rating for indoor use.
Adding smart control to a fixed-wiring installation often leaves a switch that looks inconsistent beside standard wall plates. The 41E10PBSWMZ-VW keeps the uniform Iconic appearance across every room while adding Zigbee connectivity behind the mechanism. It still works as a conventional wall push button, so household members and visitors operate it by hand without an app. Across a house-wide fit-off, that visual consistency and everyday use both matter.
Licensed electricians fit the 41E10PBSWMZ-VW where a client wants automation without being tied to a single app. Running Zigbee by default, it pairs with the Wiser by SE system or third-party Zigbee platforms, which suits customers already running their own smart-home setup. The mechanism ships as a module with a Vivid White push button, so the same base takes any Iconic skin to match the surrounding plates. ControlLink multiway lets one connected switch drive several wall points without a smart device at every location.
Features
- Zigbee default operation — the 41E10PBSWMZ-VW runs Zigbee out of the box, pairing with the Wiser by SE system or another Zigbee network for automation and scheduling.
- BLE for commissioning — Bluetooth Low Energy handles setup and pairing, so the module configures from a phone during install.
- ControlLink multiway — supports up to 5-way switching, letting one connected switch and added ControlLink points control a single load from several walls.
- 10AX load rating — rated 10AX with a 15A resistive maximum, 10A for LED drivers and electronic transformers, and 6A for inductive loads such as exhaust fans.
- Relay switching, 3-wire — uses a relay switching technique on a 3-wire design for hard-wired multiway lighting and fan circuits.
- Module-only supply — the 41E10PBSWMZ-VW ships as a mechanism with a Vivid White push button, so skins are chosen separately to match the finish.
- Three control methods — operates from the wall push button, the Wiser by SE app, or voice command through a linked assistant.
- Settable LED indicator — a built-in LED shows status and can be set to on-when-load-on, always-on, or on-when-load-off.
- Over-temperature protection — thermal and over-temperature protection guard the module, though it carries no short-circuit or over-current fuse.
- Indoor use only — the IP20 rating means the 41E10PBSWMZ-VW is not weatherproof and suits dry indoor wall locations only.
- AS/NZS 60669.2.1 compliant — certified to the Australian and New Zealand switch standard, with RF compliance to AS/NZS 4268.
- Multi-gang derating — maximum load per module reduces on multi-gang plates (10A single, 7.5A two, 6.5A three), which the install must allow for.
Where to use
- Living areas and bedrooms — controlling LED lighting circuits with app scheduling and wall operation in the same room.
- Multiway hallways and stairwells — the 41E10PBSWMZ-VW drives one lighting load from several wall points using ControlLink.
- Exhaust fan control — switching bathroom or laundry exhaust fans within the 6A inductive load limit.
- Home automation retrofits — adding Zigbee control to an existing Iconic installation without changing the wall-plate look.
- Third-party smart homes — integrating with a Zigbee platform already running in the house for whole-of-home routines.
- New builds on Wiser — fitting the 41E10PBSWMZ-VW across a home commissioned on the Wiser by SE app.
- Switch upgrades in renovations — replacing standard mechanisms where a client wants smart control on selected circuits.
The 41E10PBSWMZ-VW is not weatherproof and is rated IP20 for indoor use only. It should not be installed outdoors, in damp or exposed locations, or on circuits that exceed its load and multiway limits. Each installed switch must connect to a separate load, and the total ControlLink and Active loop must stay within 50 metres.
Verified Sparky Direct customer reviews: Clipsal Iconic 41E10PBSWMZ-VW Zigbee Wiser Connected Switch with ControlLink 10AX (41E10PBSWMZ-VW)
"Worked easily with Home Assistant." — Eljay
"Works great with hass and zigbee2mqtt, love keeping the clean Clipsal iconic look" — Justin
