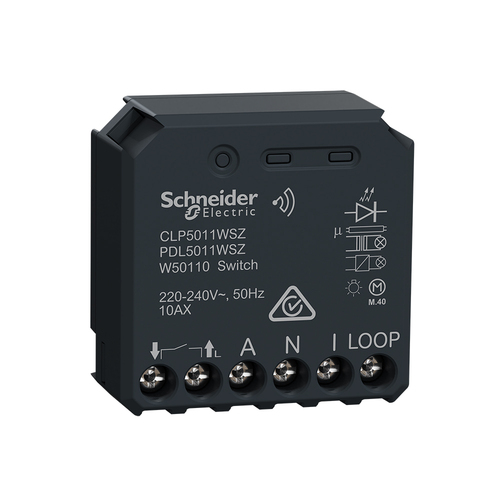

        Clipsal Iconic Wiser CLP5011WSZ | Wiser Micro Module Switch | Zigbee | Wiser Iconic App
        $148.18 $134.71 ex. GST

        Learn more by watching our Clipsal Iconic Wiser CLP5011WSZ | Wiser Micro Module Switch | Zigbee | Wiser Iconic App video.


        Clipsal Iconic Wiser CLP5011WSZ | Wiser Micro Module Switch | Zigbee Enabled | Connect to Wiser Iconic App

        Clipsal Iconic Connected Zigbee Wiser Micro Modules

        The Wiser Micro Module Switch combines the advantages of smart switch functionality with ordinary momentary (bell press) push-button switches.


        • It transforms a conventional push-button switch into a connected device you can control from the switch through the Wiser by SE app or voice control.
        • Up to 10 momentary push-button switches can be connected to one Wiser Micro Module Switch to control a connected load.
        • The device can switch ohmic, inductive or capacitive loads.
        • Voltage free relay contacts make it suitable for a wide range of applications such as garage doors, entry gates etc.

        Direct Operation

        • Operate the Wiser Micro Module Switch via a connected momentary push button (Wiser micro module switch can connect up to 10 push buttons)

        Remote operation via Wiser by SE app

        • Operate the Wiser Micro Module Switch using the app on your smartphone (the micro-module must be paired to the Wiser Hub)
        • Set a timer or time schedule time via the app

        Installation Method

        • Mount in-wall box with a minimum depth of 26 mm. Notes:
        • If you place the micro module directly behind the external push button, use a deep wall box.
        • Neutral conductor required.
        • Zigbee Certified

        Maximum load

        • LED lamp 230V = 200W
        • Incandescent lamp 230V = 2200W
        • Halogen lamp 230V = 2000W
        • LV halogen lamps
          • electronic transformer = 1050VA
          • ferromagnetic transformer = 500VA
        • Capacitive load 10A, 140mF
        • Energy-saving lamps = 100W
        • Motor = 1000VA



        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Clipsal in home warranty


        Download the complete Clipsal Wiser System User Guide - Click Here


        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Clipsal by Schneider Electric
        SKU CLP5011WSZ
        Barcode # 9311554812317
        Shipping Weight 0.0820kg
        Shipping Width 0.075m
        Shipping Height 0.050m
        Shipping Length 0.075m
        Shipping Cubic 0.000281000m3
        TYPE VALUE
        Type Micro Module
        Brand Clipsal by Schneider Electric
        Range Clipsal Iconic
        Rated Current (A) 10 AX
        Height (mm) 43
        Width (mm) 43
        Depth (mm) 22
        Switching 1 switching channel with dry contact
        Technology Zigbee 3.0
        IP Rating IP20
