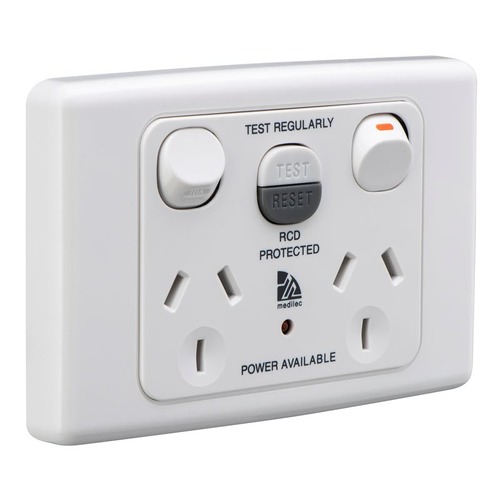

The Clipsal ML2025RC10WE is a twin switched socket outlet rated 10A 250V, with a built-in 10mA residual current device for patient-area circuits. The ML2025RC10WE combines two power outlets and a high-sensitivity RCD in one flush white plate, with a neon power-available indicator. It belongs to the Clipsal Medilec range and suits installations covered by AS/NZS 3003:2018 for patient areas.
Patient-care areas demand tighter earth-leakage protection than the 30mA level used on general circuits. A standard power point offers no residual current protection at the outlet itself, so protection depends on the switchboard. The ML2025RC10WE places a 10mA RCD at the point of use, cutting the trip threshold to a third of the common 30mA figure. Its test and reset buttons let staff verify protection on the wall, without a trip to the board.
For electricians fitting out medical suites, dental rooms, vet clinics, and aged-care rooms, an integrated RCD socket removes a separate wiring step. One flush plate delivers compliant patient-area protection and two outlets, which saves install time against running a discrete RCD. The power-available neon gives a visible check that the circuit is live and the device has not tripped. It is a higher-value line that carries a solid margin on specialised fit-out quotes.
The ML2025RC10WE is not weatherproof and is not rated for outdoor, damp, or wet-area installation. It should not be used in splash or washdown zones, on external walls, or in any location outside the dry indoor patient-area settings it is built for.
(ML2025RC10WE)
The ML2025RC10WE is built for installations under AS/NZS 3003:2018, the standard covering electrical installations in patient areas. Its 10mA residual current device gives the high-sensitivity earth-leakage protection these areas require. A licensed electrician confirms the circuit design meets the standard for the specific room.
The 10mA RCD trips the circuit when earth-leakage current reaches about 10 milliamps, a third of the common 30mA threshold. This lower level gives added protection in patient areas. Test and reset buttons on the front let the device be checked at the outlet.
Installation must be carried out by a licensed electrician. The unit hardwires into a standard flush wall box, mounts horizontally, and fixes by screws at 84mm centres. The electrician terminates active, neutral, and earth, then tests the RCD before handover.
The neon indicator lights when the circuit is live and power is available at the outlet. It gives staff a quick visual check that supply is present and the RCD has not tripped. A dark indicator points to a tripped device or a loss of supply.
This socket outlet is not weatherproof and is not rated for outdoor, damp, or wet locations. Keep it out of splash zones, washdown areas, external walls, and bathrooms. It is built for dry indoor patient-area and clinical wall positions only.
This Medilec socket outlet carries a one-year warranty for both domestic and commercial use, starting from the invoice date. Clipsal handles warranty claims directly through its in-home warranty. The warranty is void if a licensed electrician does not install the product.
The Clipsal ML2025RC10WE is available online from Sparky Direct, with Australia-wide delivery to any state or territory, including regional areas. Sparky Direct is an Australian electrical wholesaler established in 2005, supplying more than 500,000 customers with transparent trade pricing.
100-Day Fuss-Free Returns
We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.
If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.
All products come with a manufacturer’s or supplier’s warranty
Damaged or Faulty Goods
If your order arrives damaged or is faulty, let us know within 24 hours.
Contact us via our chat to arrange the return.
Exclusions
We can’t accept returns for:
How to Request a Return
Warranty starts from Invoice Date
Domestic Use: 1 Year
Commercial Use: 1 Year
Warranty Method: Clipsal in home warranty
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | Clipsal by Schneider Electric |
| SKU | ML2025RC10WE |
| Model # | ML2025RC10-WE |
| Barcode # | 9311554673154 |
| Package Weight | 0.228kg |
| TYPE | VALUE |
|---|---|
| Type | Power Points |
| Brand | Clipsal by Schneider Electric |
| Range | Medilec |
| Colour | White |
| Rated Current (A) | 10 |
| Height (mm) | 78 |
| Width (mm) | 116 |
| Complete / Skin Only / Grid Plate Only | Complete |
| Number of Switches / Gangs | N/A |
| Number Of Outlets | 2 |
| Mounting | Flush |
| Voltage (V) | 250 |
| Number of Poles | Single Pole |
| Residual Current | 10mA |
| Pin Number | 3 |
