        Clipsal MX9B121N | MAX9 Busbar 1PN w N Block Acc 21 modules
        $62.38 $56.71 ex. GST
        Video

        Ultimate Efficiency and Professional Finish

        • MAX9 takes the definition of a busbar to next level with MAXBAR. MAXBAR helps to improve installation speed by up to 15 times when compared to using cables for feeding RCBOs
        • With MAXBAR, no cable connections are needed to feed final sub-circuits protected by an RCBO or AFDD - it picks up the active feed from the main switch and distributes both active & neutral across all types of Clipsal  RCBOs and AFDDs
        Description

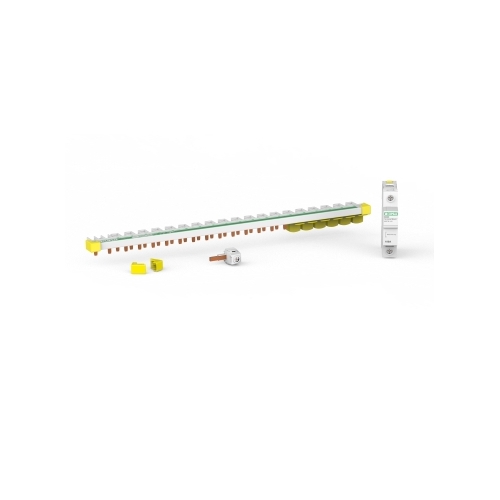

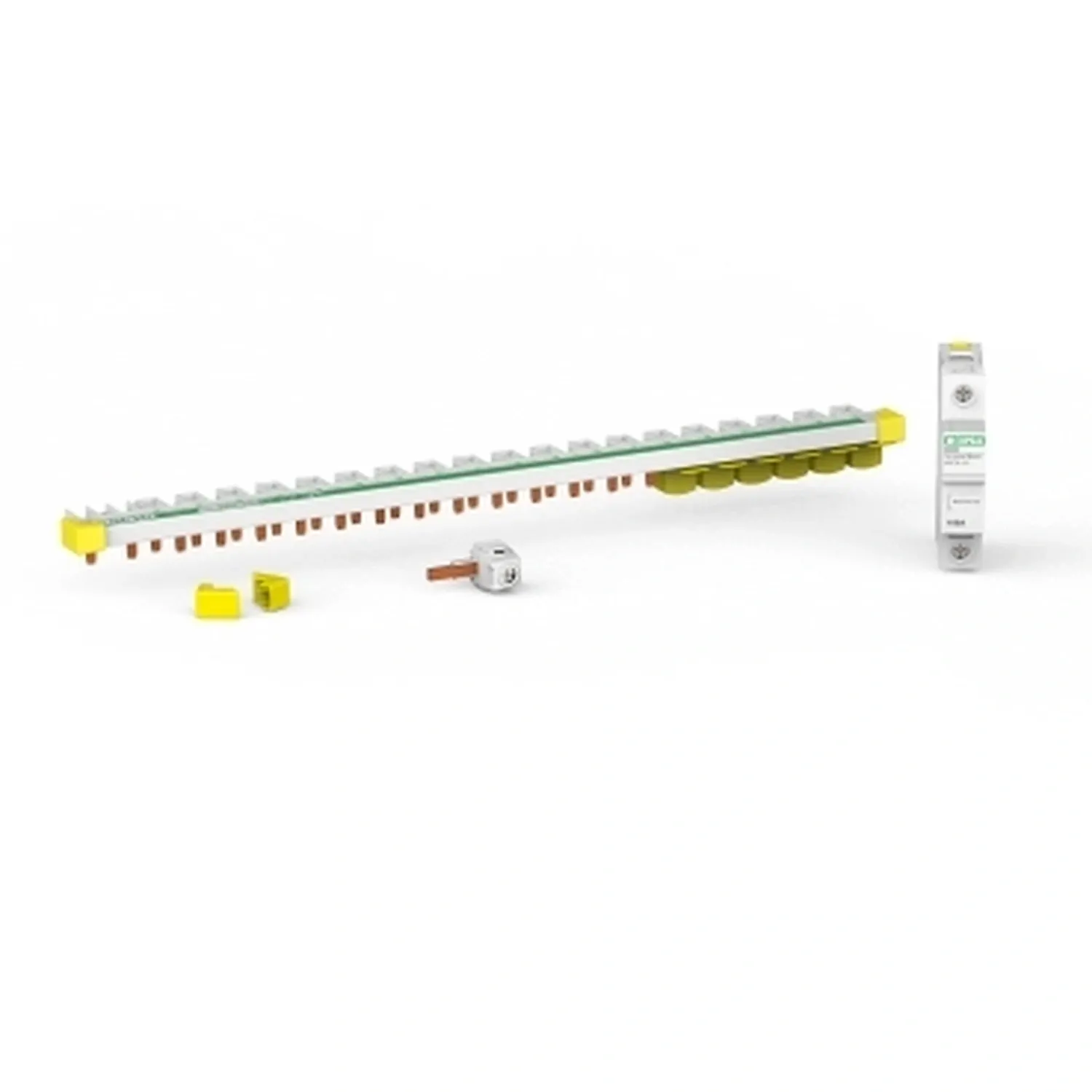

        Clipsal MX9B121N | MAX9 Busbar 1PN w N Block Acc 21 modules

        MAXBAR MX9B121N is slim type top feed comb busbar for a row with an incomer
        The rated current is 100A.
        It is 1P+N and has 21 modules.
        1 x Neutral Terminal Block
        1 x Connector

        Features:

        • MAX Speed – Up to 15 times faster compared to the traditional wiring method
        • MAX Professionalism – No cables for feeding RCBOs
        • MAX Performance – 100A rated
        • MAX Ease – All in 1 pack: Busbar + Connector + Teeth cover + End Caps + Neutral terminal block
        • Comb busbar mounting mode is horizontal and cuttable.
        • It is dedicated to the residential market.
        • The Ue rated operational voltage is 230VAC or 415VAC.
        • The Ui rated insulation voltage is 500V.
        • The dimensions are (W) 432mm x (H) 49mm x (D) 42.5mm.
        • The Colour is white electric (RAL9003).
        • The comb busbar colour is white electric (RAL9003)

        (MX9B121N)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 7 Year
        Commercial Use: 7 Year
        Warranty Method: Clipsal in home warranty

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Clipsal by Schneider Electric
        SKU MX9B121N
        Barcode # 9311554814656
        Shipping Weight 0.3100kg
        Shipping Width 0.400m
        Shipping Height 0.040m
        Shipping Length 0.125m
        Shipping Cubic 0.002000000m3
        TYPE VALUE
        Type Circuit Protection
        Brand Clipsal by Schneider Electric
        Range Clipsal - Max9
        Rated Current (A) 100
        Number of Modules 21
